2 Port HDMI Audio Extractor
In stock
1X HDMI input and 2X HDMI output, can sync separate HDMI audio signal. Supports 1x SPDIF optical digital audio output, 2 channel RCA analog audio output
Product code: HDM2HDM+A
R1,499.00 R1,949.00
In stock
Key features:
- 1× HDMI input and 2× HDMI outputs
- Supports simultaneous HDMI audio signal separation
- 1× SPDIF optical digital audio output
- 2-channel RCA analog audio output
- Supports HDMI input up to 1080P/60Hz
- Supports 3D video formats (24/30fps)
- Supports Dolby Digital (AC3), DTS, LPCM audio formats
- Supports 5.1 channel audio output
- 3 EDID audio management modes: PASS / 2CH / 5.1CH
- PASS mode supports HDMI audio pass-through up to LPCM 7.1CH
- 2CH mode outputs stereo audio via HDMI, SPDIF, RCA, and headphones
- 5.1CH mode outputs bitstream 5.1 audio via HDMI, SPDIF, and RCA
- Headphone audio output from FL and FR channels in 5.1CH mode
- Built-in 24bit / 192KHz DAC for high-quality audio conversion
- LED status indicators for source and output connections
- No signal or audio quality loss
- Quick and easy installation

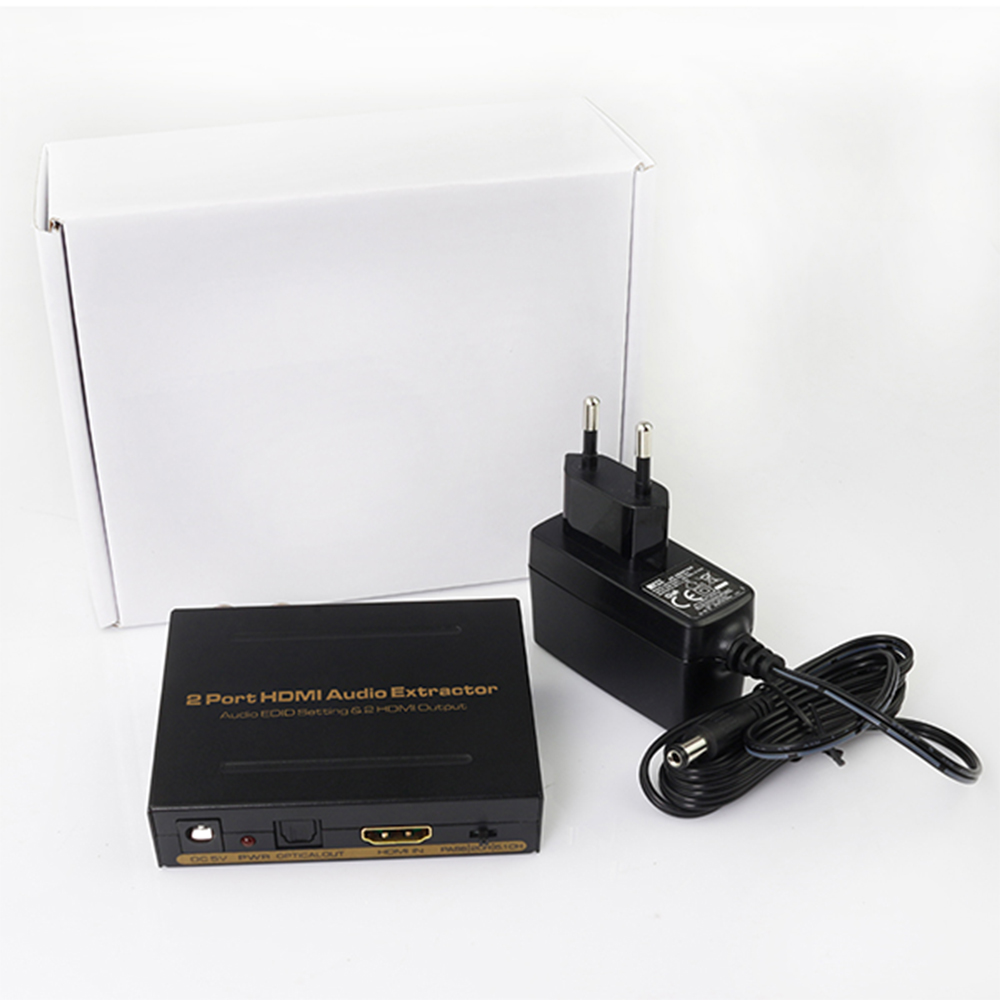

- Includes DC 5V/1A power adapter
- Ideal for TVs, AV receivers, gaming consoles, media players, and home theatre systems
Additional Details
| Weight | 320.0 g |
|---|---|
| Dimensions | 14.8 × 12.0 × 5.8 cm |
| Barcode | 6009532404700 |
| Brand | Space |
| HDMI resolution | up to 1080P/50/60fs（3D 24/30fs） |
| Support video color format | 24bit/deep color 30bit,36bit |
| HDMI Audio Format | DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD |
| SPDIF Digital audio format | Dolby Digital (AC3)/DTS/LPCM 2CH |
| HDMI Max bandwidth | 225MHz |
| HDMI Max baud rate | 6.75Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal | 5Volts p-p (TTL) |
| DAC sample frequency range | 32～192 KHz |
| DAC Bit rate range | 16～24 Bit |
| Analog output level(1kHz@0dB) | 1V RMS |
| SNR @ 0dB(CCIR/ARM) | ≥90dB |
| Distortion | ≤0.1% |
| Frequency response | 20Hz~20KHz |
| HDMI input cable distance | ≤15m AWG26 HDMI standard cable |
| HDMI output cable distance | ≤20m AWG26 HDMI standard cable |
| Max working current | 600mA |
| Power adapter format Input | AC 100V～240V 50HZ/60Hz, DC5V/1A |
| Operating Temperature range | -10 to +55℃ |
| Storage Temperature range | -20 to +60℃ |
| Operating Humidity range | 10 to 90%RH (No Condensation) |
| Storage Humidity range | 5 to 95%RH (No Condensation) |
| Case Dimension (L x W x H) | 85x62x21 (mm) |
| Weight | 130g |
