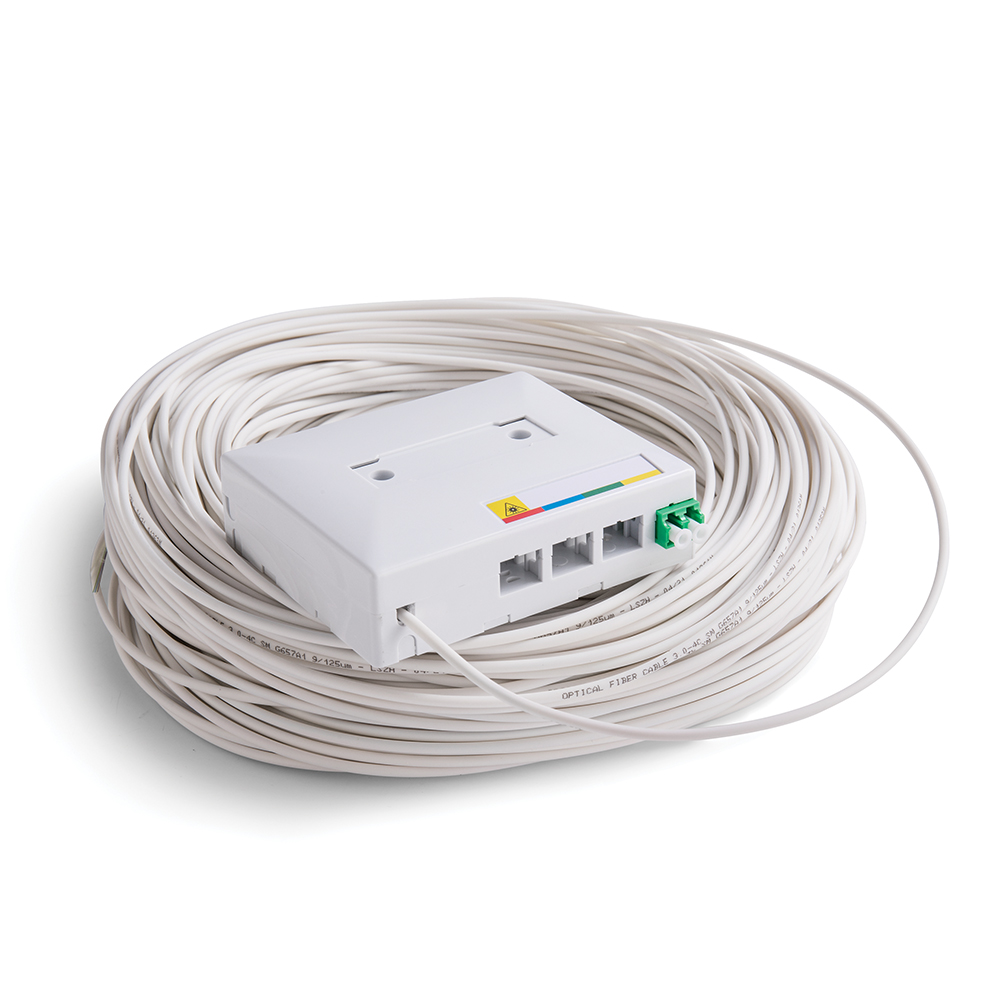

4F Fibre Termination Box with 100m Cable
,

4F Fibre Termination Box with 100m Cable

Availability:

In stock

The 4F Fibre Termination Box with 100m Cable is a compact and practical fibre optic distribution solution designed for indoor FTTH (Fibre-to-the-Home) installations. Supplied with a pre-terminated 100-metre fibre cable, this wall-mount termination box provides a convenient and secure point for fibre splicing, termination, and distribution while protecting fibre connections from dust and damage.

Product code: 4FMC-100M

R599.00 R724.00

In stock

Key Features

  • Complete fibre termination solution with 100m pre-installed fibre cable
  • Supports up to 4 fibre cores
  • Compact wall-mount design for indoor installations
  • Suitable for fibre splicing, termination, and distribution
  • Integrated cable management for neat fibre routing
  • Durable ABS plastic enclosure
  • Easy access for installation and maintenance
  • Protects fibre connections from dust and physical damage
  • Ideal for FTTH, residential, and small business deployments

Specifications

  • Product Model: 4FMC-100M
  • Fibre Capacity: 4 Core
  • Cable Length: 100 Metres
  • Mounting Type: Wall Mount
  • Installation Environment: Indoor
  • Material: ABS Plastic
  • Connector Compatibility: SC/APC and SC/UPC adapters
  • Colour: White

Applications

  • Fibre-to-the-Home (FTTH) installations
  • Residential fibre connections
  • Small office and business fibre networks
  • Telecommunications infrastructure
  • Fibre distribution and termination points
  • Indoor optical network deployments

What’s in the Box

  • 1 x 4F Fibre Termination Box
  • 1 x 100m Fibre Optic Cable

The 4FMC-100M Fibre Termination Box is designed for wall mounting, suitable for indoor use, capable to handle fibre fusion, fibre cables and pigtails.

SKU: 4FMC-100M Categories: , Tag:

Additional Details

SKU: 4FMC-100M | Tags: | Categories: ,

Brand
Fibre Parameters
Fibre type 9/125
Core Diameter 1310nm：9.1±0.4μm
Core Non-Circularity <=6.0 %
Cladding Diameter 125.0+0.7um
Cladding Non-Circularity <=1.0 %
Coating Diameter 245+7
Coating-Cladding Concentricity Error <=12.0um
Coating Non-Circularity <=6.0um
Core-Cladding Concentricity Error <=0.6um
Attenuation 1310nm <=0.36
1550nm <=0.22
Cable Parameters
Optical fibre – Diameter 125µm
Optical fibre – Coating diameter 250µm
Optical fibre – Color 1. Blue 2. Orange 3. Green 4. Brown
Cable – Diameter 3.0mm
Cable – Core reinforce Aramid yarn
Cable – Sheath material LSZH
Cable – Color White
Fibre count 4
Outside diameter (mm) 3.0
Cable weight (kg/km) 8
Max tensile force (N) 80/150 (long-term/short-term)
Crush resistance (N/100mm) 1000 (short-term)
Min bend radius (D) 20/10 (dynamic/static)
Running temperature -20 ℃ ~+70 ℃
Connector
Connector type LC/UPC
Insertion Loss <=0.3db
Return Loss >=50db
Fibre mode Single-mode,9/125
Operating wavelength 1260~1650nm
Test wavelength 1310nm, 1550nm
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fibre Length 100m
Length and tolerance L+0/+30cm
Outer box
Outside Dimension (mm) 100 x 83 x 29
Material ABS
Color White
Storage of fibres G.657/G652
Splice capacity 4 single fibre
Splice Method Fusion Splice (45mm sleeve)
Adapter Port 4SC
Input cable （mm） Max 5.0 (from front or base)
