-17%
Cables, Fibre

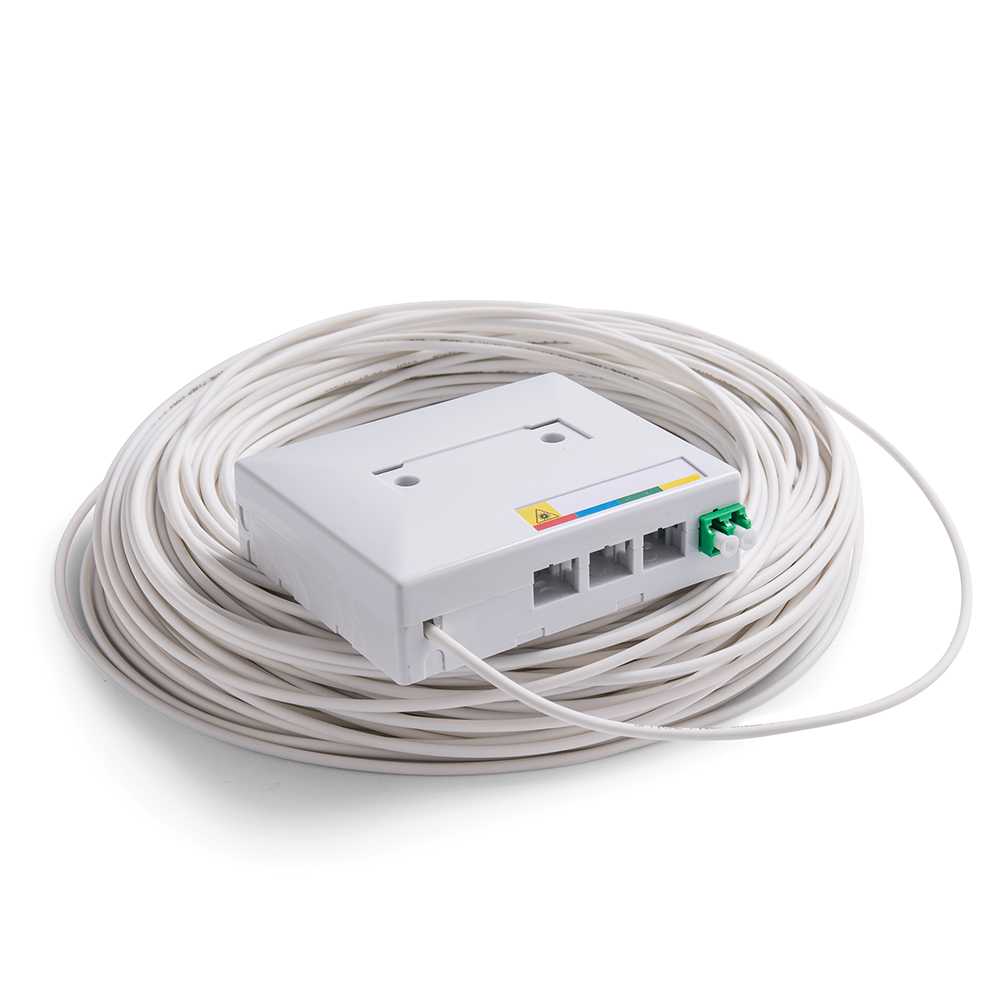

4F Fibre Termination Box with 50m Cable
Availability:
In stock
The 4F Fibre Termination Box with 50m Cable is a compact and efficient fibre optic termination solution designed for indoor FTTH (Fibre-to-the-Home) installations. Supplied with a pre-terminated 50-metre fibre cable, this wall-mounted enclosure provides a secure location for fibre splicing, termination, and distribution while ensuring reliable protection for sensitive fibre connections.
Product code: 4FMC-50M
R419.00 R506.00
In stock
Key Features
- Complete fibre termination solution with 50m pre-installed fibre cable
- Supports up to 4 fibre cores
- Compact wall-mount design for indoor applications
- Suitable for fibre fusion splicing and cable termination
- Integrated fibre management for neat cable routing
- Durable and lightweight ABS plastic enclosure
- Easy installation and maintenance access
- Protects fibre connections from dust and damage
- Ideal for FTTH and residential fibre deployments
Specifications
- Fibre Capacity: 4 Core
- Cable Length: 50 Metres
- Mounting Type: Wall Mount
- Installation Environment: Indoor
- Material: ABS Plastic
- Connector Compatibility: SC/APC and SC/UPC adapters
- Colour: White
- Application: Fibre Termination and Distribution
Applications
- Fibre-to-the-Home (FTTH) installations
- Residential broadband networks
- Small office fibre connections
- Fibre optic distribution points
- Telecommunications infrastructure
- Indoor optical network deployments
What’s in the Box
- 1 x 4F Fibre Termination Box
- 1 x 50m Fibre Optic Cable
The 4F Fibre Termination Box with 50m Fibre Cable provides a practical and reliable solution for terminating and managing fibre optic connections, ensuring organised cable routing and dependable network performance in indoor environments.
Additional Details
| Brand | SPACE |
|---|
| Fibre Parameters | |
| Fibre type | 9/125 |
| Core Diameter | 1310nm：9.1±0.4μm |
| Core Non-Circularity | <=6.0 % |
| Cladding Diameter | 125.0+0.7um |
| Cladding Non-Circularity | <=1.0 % |
| Coating Diameter | 245+7 |
| Coating-Cladding Concentricity Error | <=12.0um |
| Coating Non-Circularity | <=6.0um |
| Core-Cladding Concentricity Error | <=0.6um |
| Attenuation | 1310nm <=0.36 1550nm <=0.22 |
| Cable Parameters | |
| Optical fibre – Diameter | 125µm |
| Optical fibre – Coating diameter | 250µm |
| Optical fibre – Color | 1. Blue 2. Orange 3. Green 4. Brown |
| Cable – Diameter | 3.0mm |
| Cable – Core reinforce | Aramid yarn |
| Cable – Sheath material | LSZH |
| Cable – Color | White |
| Fibre count | 4 |
| Outside diameter (mm) | 3.0 |
| Cable weight (kg/km) | 8 |
| Max tensile force (N) | 80/150 (long-term/short-term) |
| Crush resistance (N/100mm) | 1000 (short-term) |
| Min bend radius (D) | 20/10 (dynamic/static) |
| Running temperature | -20 ℃ ~+70 ℃ |
| Connector | |
| Connector type | LC/UPC |
| Insertion Loss | <=0.3db |
| Return Loss | >=50db |
| Fibre mode | Single-mode,9/125 |
| Operating wavelength | 1260~1650nm |
| Test wavelength | 1310nm, 1550nm |
| Repeatability | <=0.1 |
| Interchangeability | <=0.2dB |
| Durability | <=0.2dB |
| Fibre Length | 50m |
| Length and tolerance | L+0/+30cm |
| Outer box | |
| Outside Dimension (mm) | 100 x 83 x 29 |
| Material | ABS |
| Color | White |
| Storage of fibres | G.657/G652 |
| Splice capacity | 4 single fibre |
| Splice Method | Fusion Splice (45mm sleeve) |
| Adapter Port | 4SC |
| Input cable （mm） | Max 5.0 (from front or base) |
