Johansson, Multiswitches, Satellite

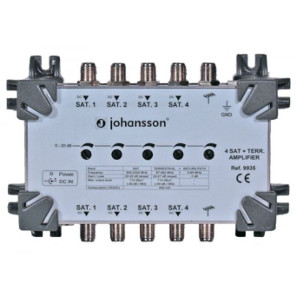

Johansson Amplifier for 974 DSCR Multiswitch Series (AMP-9935)
Availability:
Only 5 left in stock
Product code: AMP-9935
R2,159.00 R2,609.00
Only 5 left in stock
5 lines Amplifier 4x SAT + 1x Terrestrial
- separate adjustment for gain and slope on every line
- DC input for powering trunk line amplifiers & LNB
| 9935 | ||
|---|---|---|
| Inputs | – | 4 SAT + 1 TERR |
| Outputs | – | 5 |
| Frequency range | MHz | SAT.: 950-2300 MHz TERR.: 5-65MHz + 87-862MHz |
| Gain | dB | SAT.: 20-25dB (sloped) TERR.: 87-862 MHz : 20-27dB (sloped) return path: -1dB |
| Noise figure | dB | SAT.: 5 TERR.: 6 |
| Gain adjustment | dB | SAT.: 20 TERR.: 20 |
| Max. Output level | dBµV | SAT.: 110 dBµV* TERR.: RP : passive 87-862 MHz: 114 dBµV ** |
| Consumption | – | 500 mA from 15 VDC external power supply or input / output |
| Dimensions | mm | 158 x 102 x 51 |
* -35dB/IM3
** -54dB/IM3
** -54dB/IM3
Additional Details
| Weight | 0.0 g |
|---|---|
| Dimensions | 0.0 × 0.0 × 0.0 cm |
| Brand | JOHANSSON |
