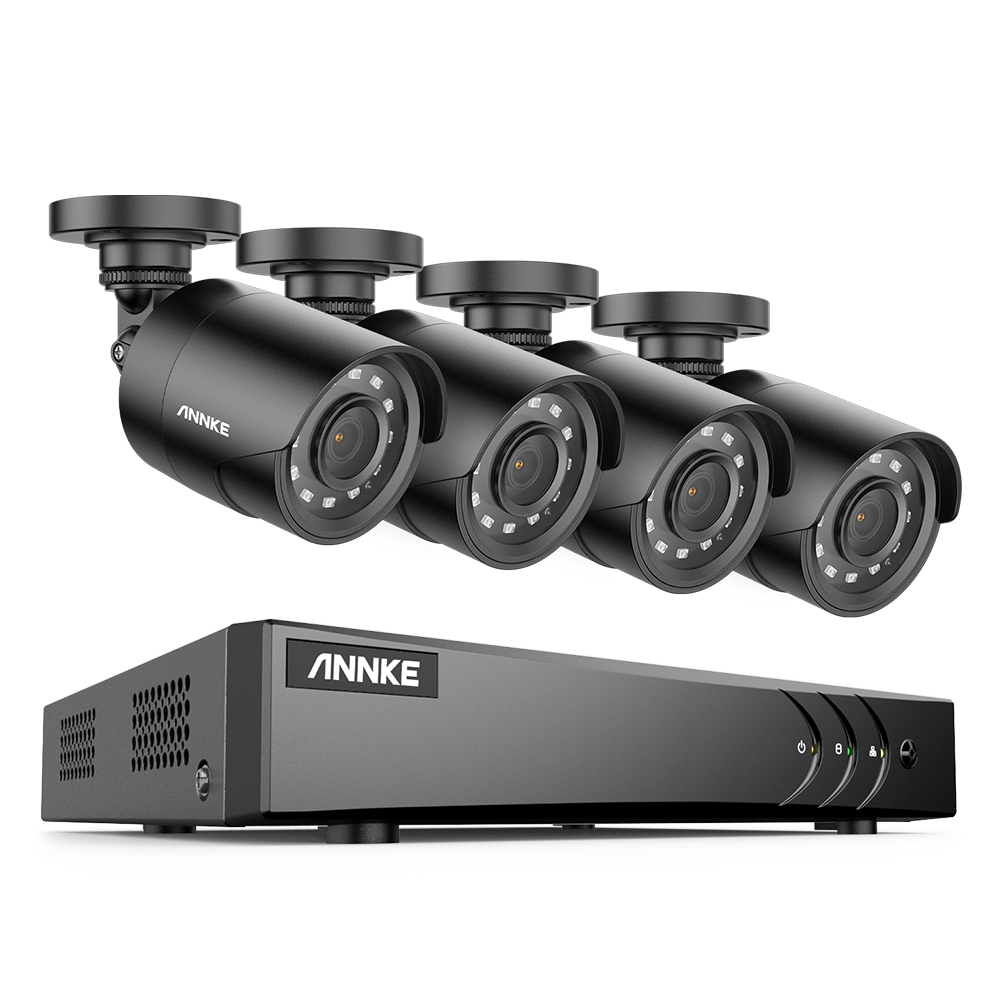

ANNKE 4CH Hybrid DVR Kit with 4 x 2MP TVI Bullet Cameras
Only 6 left in stock
Secure your home or business with the ANNKE 4CH Hybrid DVR Kit, a complete surveillance solution that combines a powerful 4-channel 5MP Lite DVR with four Full HD 1080p weatherproof bullet cameras. Designed for reliable 24/7 monitoring, this system delivers clear live viewing, high-quality recording, and remote access from virtually anywhere.
The 5-in-1 hybrid DVR supports multiple camera technologies, providing flexibility for future upgrades and system expansion. Advanced H.264+ video compression reduces storage requirements while maintaining excellent video quality, helping you maximize hard drive capacity and reduce operating costs.
Equipped with intelligent motion detection, instant email notifications, and mobile app alerts, the system keeps you informed of important events in real time. The included IP66-rated bullet cameras offer dependable indoor and outdoor performance, with infrared night vision reaching up to 30 metres (100 ft) for around-the-clock protection.
Product code: DW41JD+C51BH-4
R5,099.00 R6,629.00
Only 6 left in stock
Features:
- Complete CCTV surveillance kit with DVR and 4 cameras
- 4-channel 5MP Lite Hybrid DVR
- Includes 4 x 2MP Full HD TVI Bullet Cameras
- 5-in-1 DVR compatibility for flexible camera integration
- Full HD 1080p live viewing
- Supports 5MP Lite recording and playback
- Advanced H.264+ video compression technology
- Smart motion detection with customizable detection zones
- Instant email alerts and mobile app push notifications
- Remote viewing via smartphone, tablet, and PC
- Smart playback for faster video review
- Weatherproof IP66-rated cameras
- Infrared night vision up to 30m (100 ft)
Specifications:
DVR:
- Channels: 4 Channel
- DVR Type: 5-in-1 Hybrid DVR
- Maximum Recording Resolution: 5MP Lite
- Video Compression: H.264+
- Remote Access: Mobile App, Tablet, PC
- Motion Detection: Customizable Detection Zones
- Alert Functions: Email Notifications and Push Alerts
Cameras:
- Quantity: 4 Cameras
- Resolution: 2MP (1920 × 1080)
- Camera Type: Bullet Camera
- Weather Rating: IP66
- Night Vision Range: Up to 30m (100 ft)
Applications:
- Home security systems
- Retail stores and offices
- Warehouses and workshops
- Schools and educational facilities
- Small business surveillance
- Indoor and outdoor monitoring
Additional Details
| Weight | 4080.0 g |
|---|---|
| Dimensions | 19.0 × 37.0 × 30.0 cm |
| Barcode | 6009532407879 |
| Brand | Annke |
DVR Specification
| Video & Audio | |
| Video Compression | H.264+/H.264/H.265/H.265+ |
| Video Input | 4CH Analog HD/Analog+1CH IP |
| Video Output | HDMI and VGA Up to 1080P |
| Audio Input/Output | 1/1 RCA |
| Supported Camera Types | Support HD TVI Input: 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps; Support AHD Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps; Support CVI Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps; Support CVBS Input |
| Analog HD Playback Resolution | 5MP Lite/4MP Lite/1080p/720p/@15fps, VGA/WD1/4CIF/CIF@25(30)fps |
| IPC Recording Resolution | Up to 6MP |
| IPC Playback Resolution | Up to 6MP |
| Max Playback Channel | 1-ch |
| Onvif Protocols | Support |
| Hard Drive | |
| HDD | 1 SATA interface |
| HDD Capacity | Up to 6TB capacity |
| External Interface | |
| Network interface | RJ45x1(10/100M) |
| BNC Output | – |
| Alarm Input/Output | – |
| RS485 | – |
| USB | USB2.0x2 |
| General | |
| Operating Power | DC12V |
| Working Temperature | -10 °C – 55 °C |
| Dimensions(W x H x D) | 260 × 222 × 45 mm |
| Weight (without hard disk) | ≤ 1 kg (without HDD) |
| Packaging Contents | |
| DVR | 1 |
| USB Mouse | 1 |
| Power Adapter | 1 |
| 1M network cable | 1 |
| 1.8M HDMI cable | 1 |
| User’s Manual For DVR | 1 |
Camera Specification

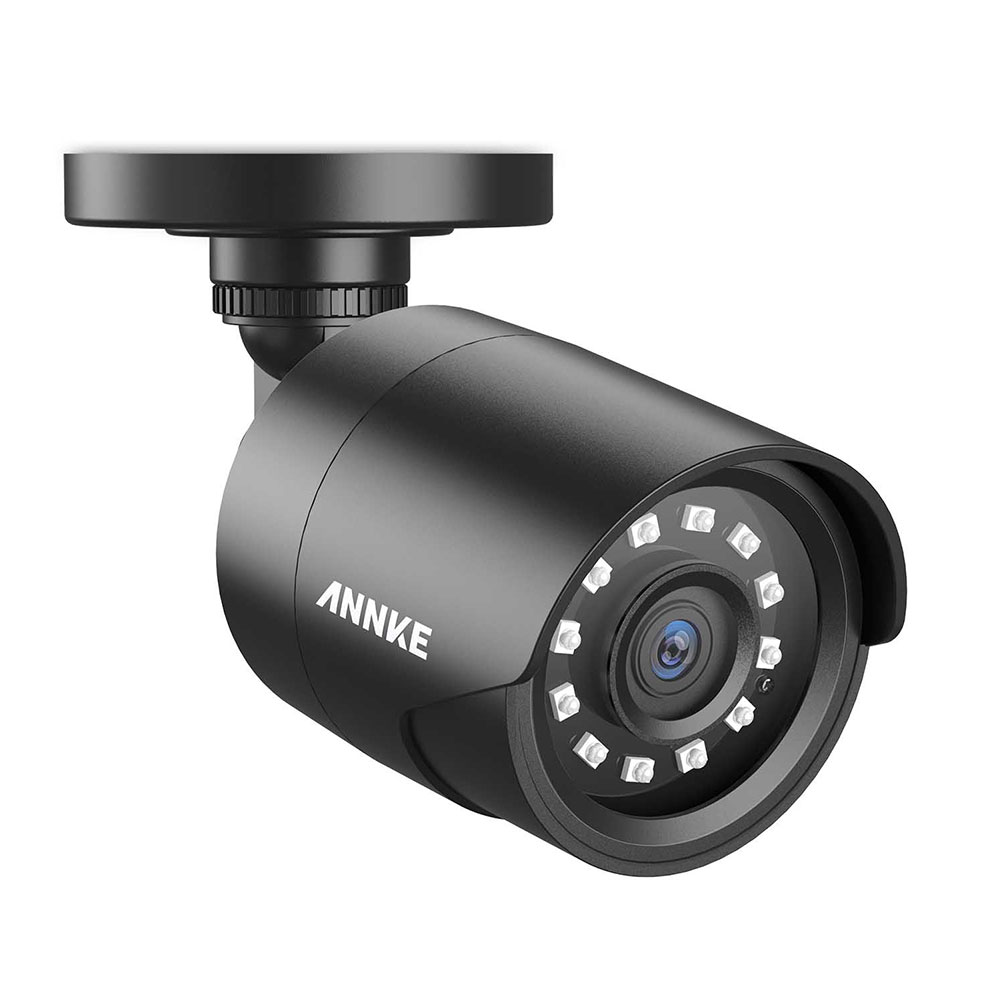

| Image sensor | 2MP CMOS Image Sensor |
| Video Resolution | 1920 (H) × 1080 (V) |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Lens | 3.6mm |
| Min.Illumination | Color: 0.02 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Angle of View | 82.2° |
| Number of Infra-Red LEDs | 12 |
| Night Vision Distance | Up to 66ft/20m |
| DNR | Support |
| Wide Dynamic Range | Digital WDR |
| IR Cut Filter | Yes |
| Video Output | HD BNCx1 |
| Housing | Plastic |
| Color | Black |
| Operating Power | DC12V |
| Operating Temperature | -40 °C – 60 °C |
| Indoor/Outdoor | Indoor/Outdoor |
| Weatherproof Rating | IP66 |
| Dimension (L x W x H) | 70 × 154.5 mm |
| Weight | 400g |
