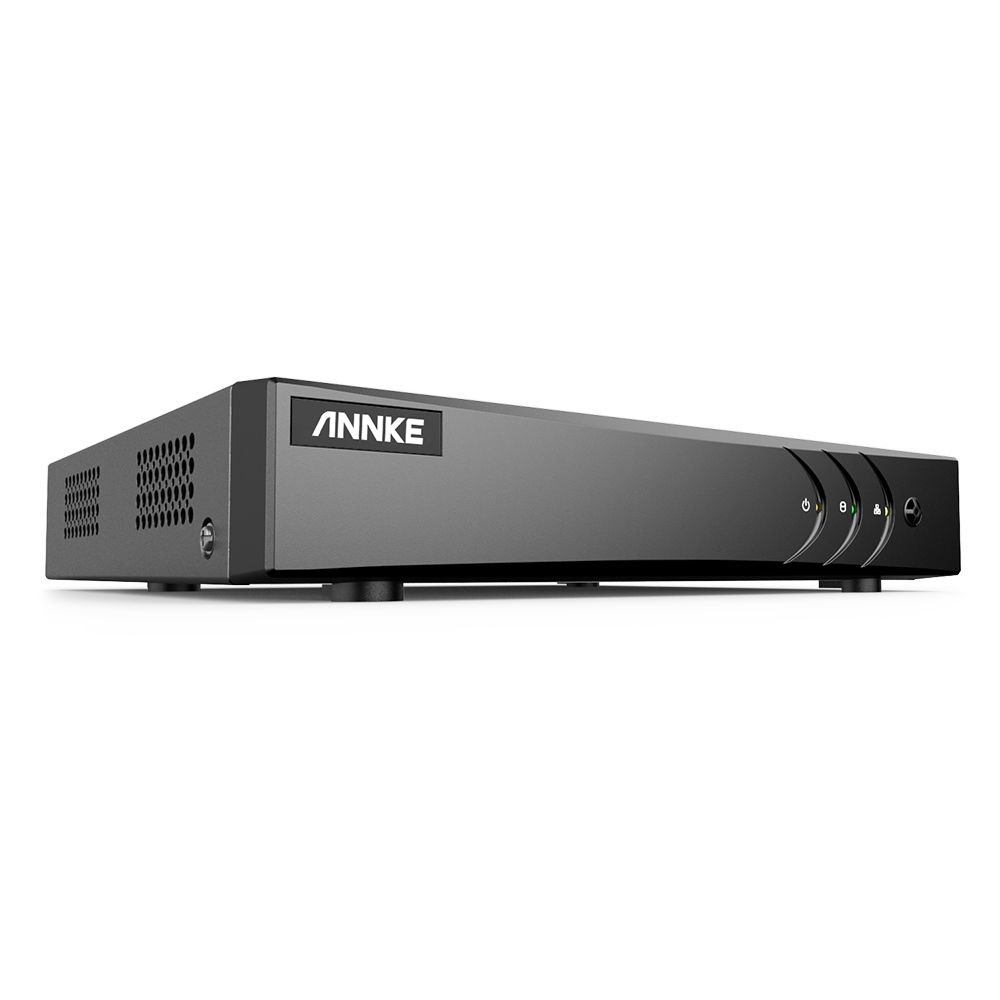

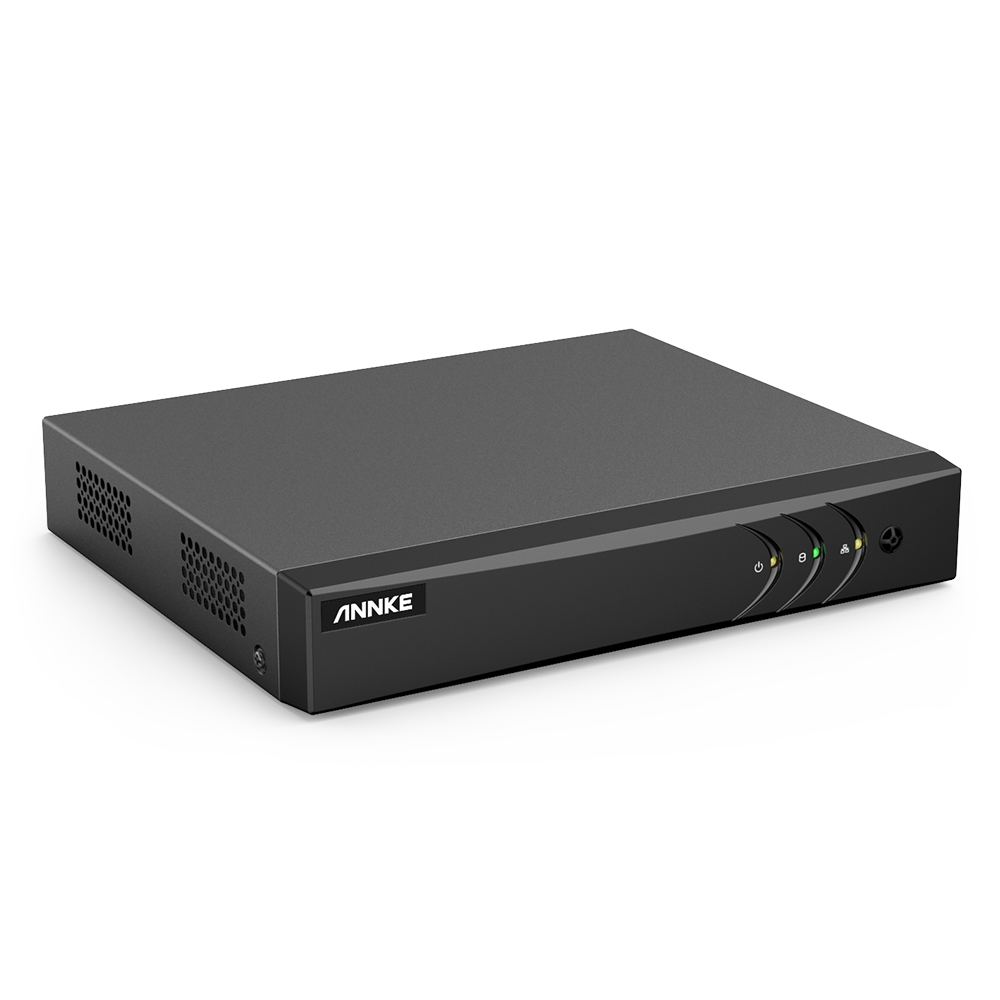

Annke 4CH 5MP Lite DVR
Only 10 left in stock
The Annke 4CH 5MP Lite DVR is a powerful and versatile digital video recorder designed to provide reliable surveillance recording and monitoring for homes, offices, retail stores, and small businesses. Supporting up to 5MP high-definition live viewing and 5MP Lite recording and playback, this DVR delivers clear video quality to help capture important details.

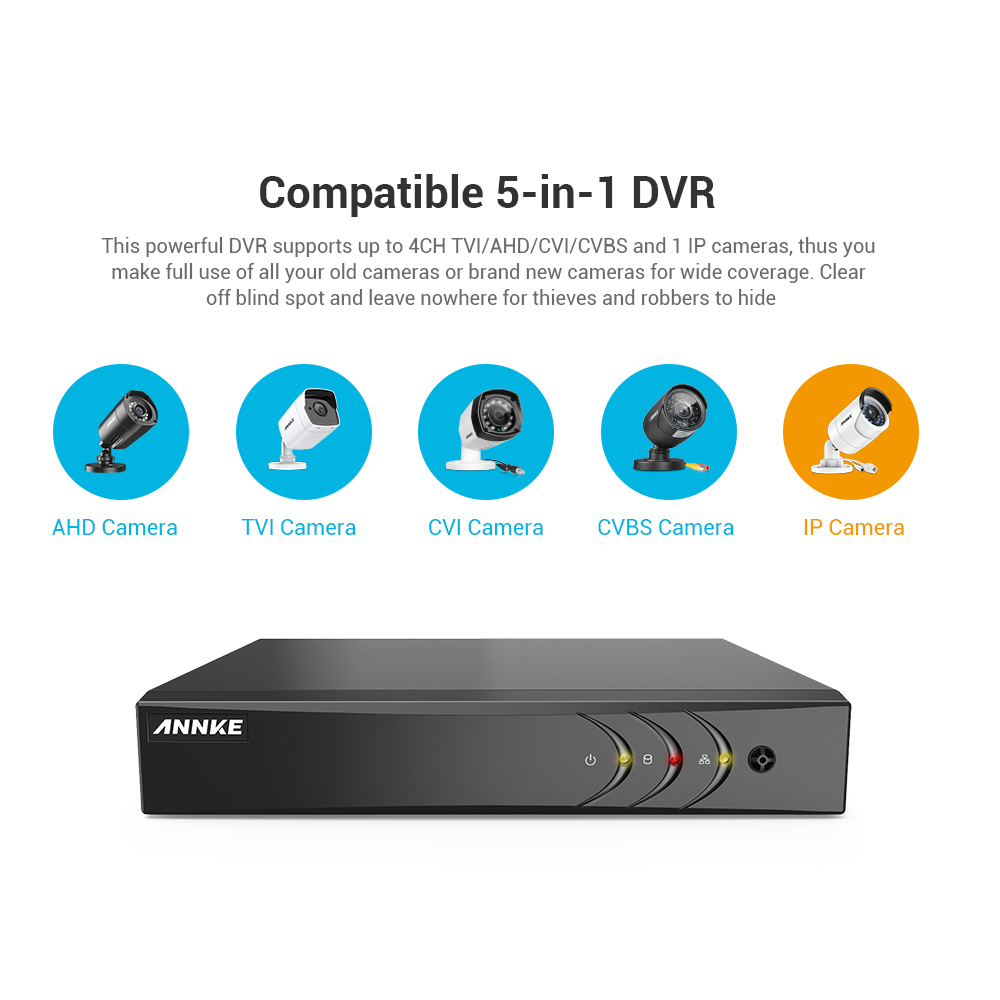

Featuring advanced H.265+ video compression technology, the DVR significantly reduces bandwidth usage and storage requirements while maintaining excellent image quality. Its 5-in-1 compatibility supports TVI, AHD, CVI, CVBS, and IP cameras, offering maximum flexibility when building or upgrading a surveillance system.
With remote monitoring support for iPhone, iPad, and Android devices, users can access live video, playback recordings, and manage their security system from virtually anywhere with an internet connection.
Product code: DW41JD
R1,029.00 R1,246.00
Only 10 left in stock
Features:
- 4-channel digital video recorder
- Supports up to 5MP high-definition live viewing
- 5MP Lite recording and playback capability
- Advanced H.265+ video compression technology
- 5-in-1 compatibility: TVI, AHD, CVI, CVBS, and IP cameras
- Remote monitoring via smartphone, tablet, and PC
- User-friendly interface for easy operation
- Supports motion detection and event recording
- Ideal for residential and commercial security systems
Specifications:
- Channels: 4 Channel
- DVR Type: Hybrid DVR
- Live View Resolution: Up to 5MP
- Recording Resolution: 5MP Lite
- Video Compression: H.265+
- Camera Compatibility: TVI / AHD / CVI / CVBS / IP Cameras
- Remote Access: iPhone, iPad, Android Devices
- Network Connectivity: Ethernet
- Playback: Simultaneous Playback Supported
- Application: CCTV Surveillance Systems
Applications:
- Home security systems
- Retail stores and offices
- Warehouses and workshops
- Small business surveillance
- Educational facilities
- Residential and commercial monitoring
Additional Details
| Weight | 1120.0 g |
|---|---|
| Dimensions | 36.0 × 28.0 × 8.0 cm |
| Brand | Annke |
| Barcode | 6009532407886 |
| Video & Audio | |
| Video Compression | H.264+/H.264/H.265/H.265+ |
| Video Input | 4CH Analog HD/Analog+1CH IP |
| Video Output | HDMI and VGA Up to 1080P |
| Audio Input/Output | 1/1 RCA |
| Supported Camera Types | Support HD TVI Input: 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps; Support AHD Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps; Support CVI Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps; Support CVBS Input |
| Analog HD Playback Resolution | 5MP Lite/4MP Lite/1080p/720p/@15fps, VGA/WD1/4CIF/CIF@25(30)fps |
| IPC Recording Resolution | Up to 6MP |
| IPC Playback Resolution | Up to 6MP |
| Max Playback Channel | 1-ch |
| Onvif Protocols | Support |
| Hard Drive | |
| HDD | 1 SATA interface |
| HDD Capacity | Up to 6TB capacity |
| External Interface | |
| Network interface | RJ45x1(10/100M) |
| BNC Output | – |
| Alarm Input/Output | – |
| RS485 | – |
| USB | USB2.0x2 |
| General | |
| Operating Power | DC12V |
| Working Temperature | -10 °C – 55 °C |
| Dimensions(W x H x D) | 260 × 222 × 45 mm |
| Weight (without hard disk) | ≤ 1 kg (without HDD) |
| Packaging Contents | |
| DVR | 1 |
| USB Mouse | 1 |
| Power Adapter | 1 |
| 1M network cable | 1 |
| 1.8M HDMI cable | 1 |
| User’s Manual For DVR | 1 |
