Annke N461Z – 16CH Embedded NVR, HDMI and VGA
In stock

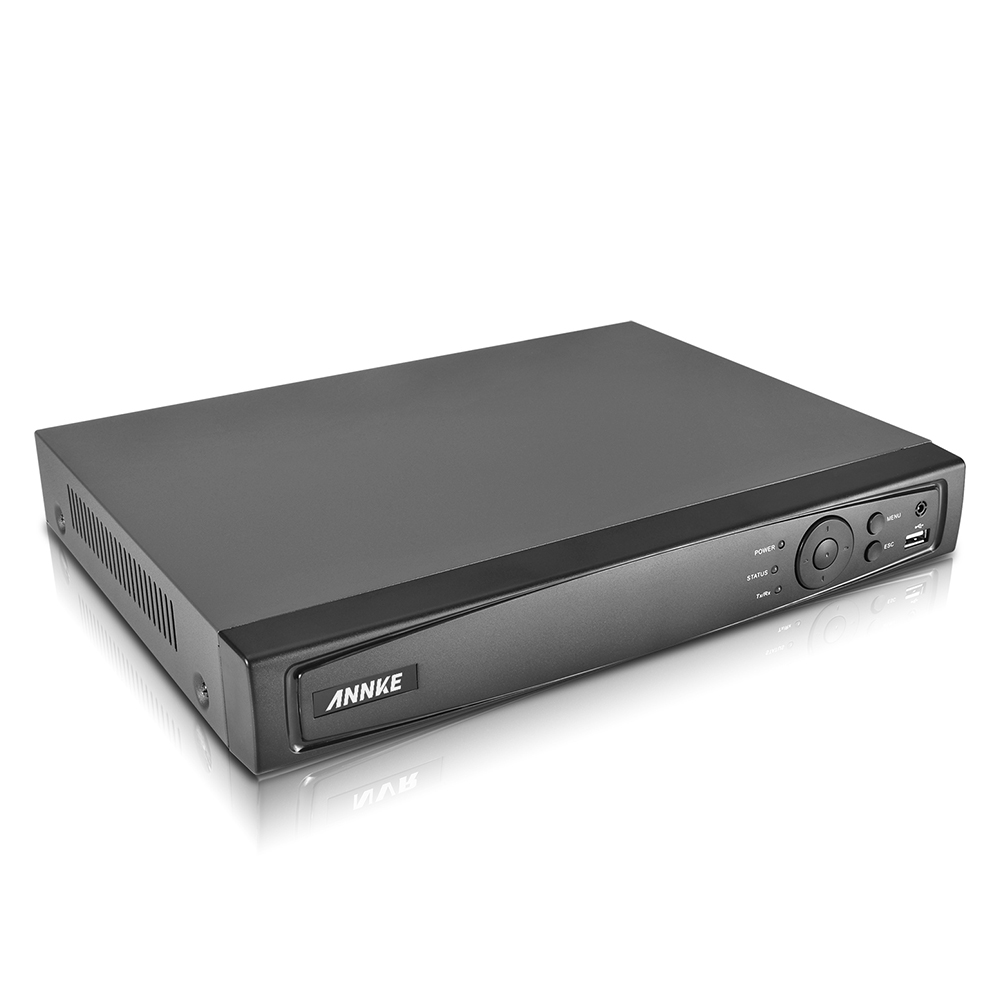

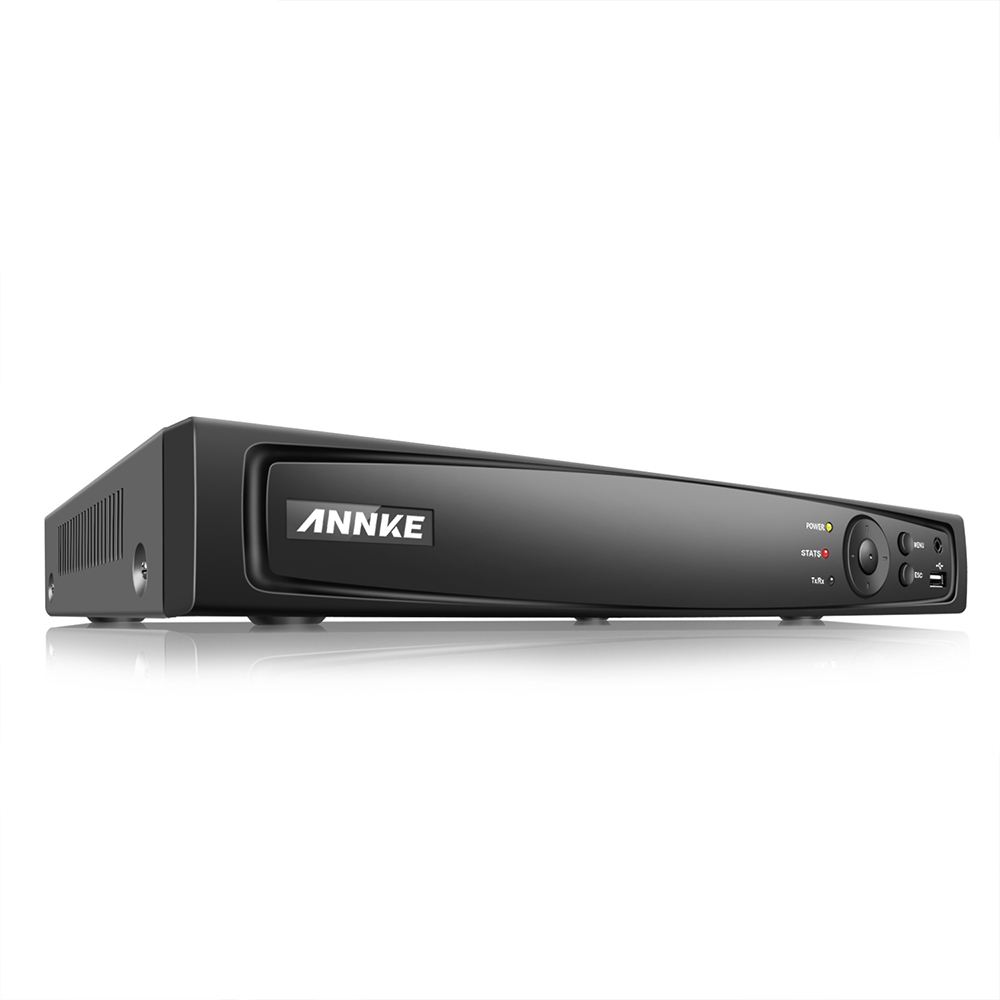

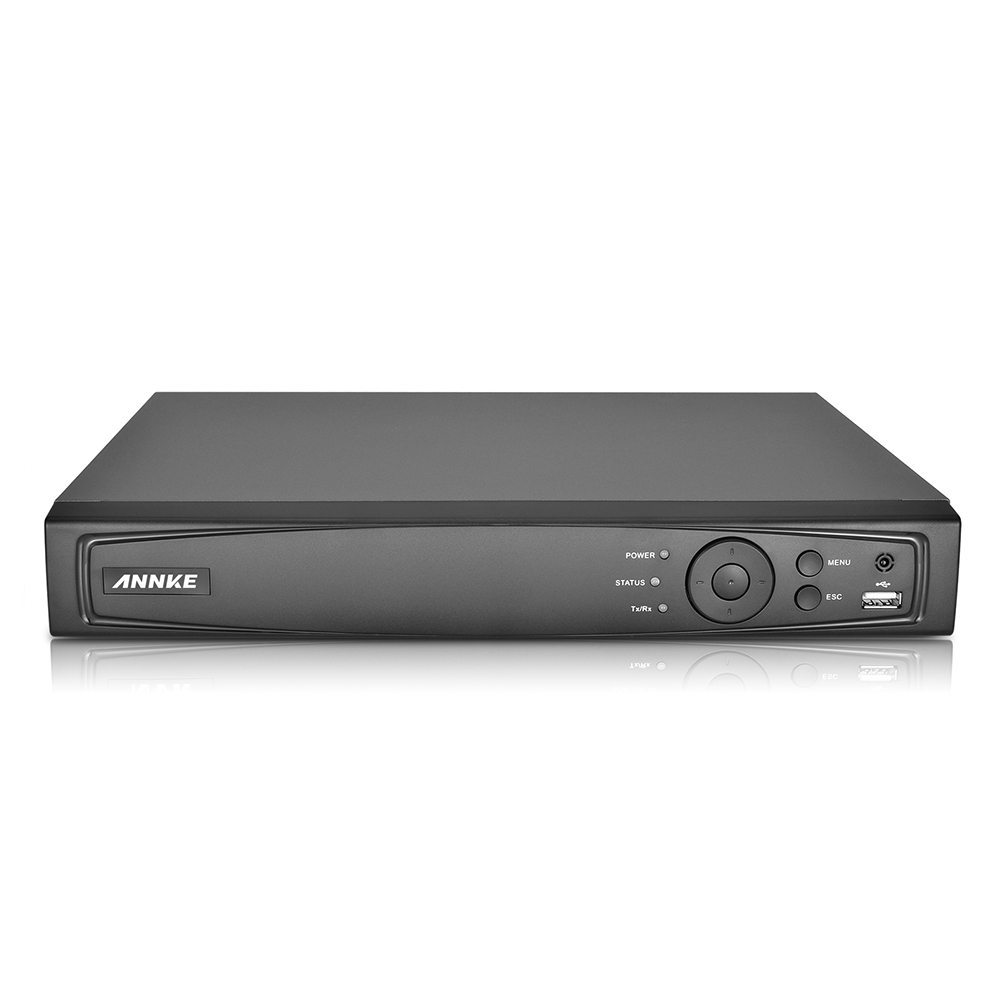

The Annke N461Z 16-Channel Embedded Network Video Recorder (NVR) is a professional surveillance recording solution designed for medium to large-scale IP camera installations. Supporting up to 16 channels and offering crystal-clear 6MP live viewing, recording, and playback, this NVR delivers powerful video management capabilities for commercial, industrial, and residential security systems.
Featuring advanced H.264+ video compression technology, the N461Z reduces bandwidth consumption and storage requirements while maintaining exceptional video quality. Dual HDMI and VGA outputs provide flexible display options, making it ideal for security control rooms, monitoring stations, and multi-camera surveillance environments.
The recorder supports intelligent Video Content Analysis (VCA) alarm functions and VCA search capabilities, enabling faster event detection and efficient footage retrieval. With remote viewing through the Annke View mobile application, users can monitor live video, review recordings, and manage their surveillance system from virtually anywhere.
Product code: N461Z
R1,799.00 R2,174.00
In stock
Features:
- 16-channel embedded network video recorder
- Supports up to 6MP live viewing, recording, and playback
- HDMI and VGA video outputs
- Advanced H.264+ video compression technology
- Intelligent VCA alarm detection
- VCA event search functionality
- Remote monitoring via Annke View mobile app
- User-friendly interface and system management
- Reliable performance for large IP surveillance systems
- Suitable for residential, commercial, and industrial applications
Specifications:
- Model: N461Z
- Channels: 16 Channel
- Recorder Type: Embedded NVR
- Maximum Supported Resolution: 6MP
- Video Outputs: HDMI and VGA
- Video Compression: H.264+
- Smart Features: VCA Detection and VCA Search
- Remote Access: Annke View Mobile App
- Network Connectivity: Ethernet
- Application: IP Camera Surveillance Systems
Applications:
- Commercial security installations
- Warehouses and distribution centres
- Retail stores and shopping centres
- Office parks and business premises
- Educational institutions
- Industrial facilities
- Large residential properties
Additional Details
| Weight | 2900.0 g |
|---|---|
| Dimensions | 43.0 × 37.0 × 14.0 cm |
| Brand | Annke |
| Barcode | 6009532406421 |
| Annke N461Z – 16CH Embedded NVR | |
| Video & Audio | |
| Video Compression | H.264+/H.264 |
| IP Video Input | 16CH |
| Video Output | HDMI and VGA Up to 1080P |
| Audio Input/Output | 1/1 RCA |
| Incoming bandwidth | 160M |
| Max Recording Resolution | Up to 6M (3072×2048) |
| Max Playback Resolution | Up to 6M (3072×2048) |
| Max Playback Channel | 8CH |
| Max Playback Capacity | 5CH 1080P |
| Onvif Version | 2.4 |
| Hard Drive | |
| HDD | 1 SATA interface |
| HDD Capacity | Up to 4TB capacity |
| External Interface | |
| Network interface | RJ45x1 (10/100/1000M) |
| Alarm Input/Output(Optional) | No(4/1) |
| RS485 | – |
| USB | USB 2.0×1 and USB 3.0×1 |
| General | |
| Operating Power | DC12V |
| Power Consumption | ≤10W (without HDD) |
| Working Temperature | -10 °C ~+55 °C |
| Dimensions(W x H x D | 315 x 240 x 48mm |
| Weight (without hard disk) | ≤1KG (without HDD) |
| Packaging Contents | |
| NVR | 1 |
| Hard Drive (installed) | – |
| USB Mouse | 1 |
| Remote Control | 1 |
| Power Cable | 1 |
| CD | 1 |
| User’s Manual For NVR | 1 |
