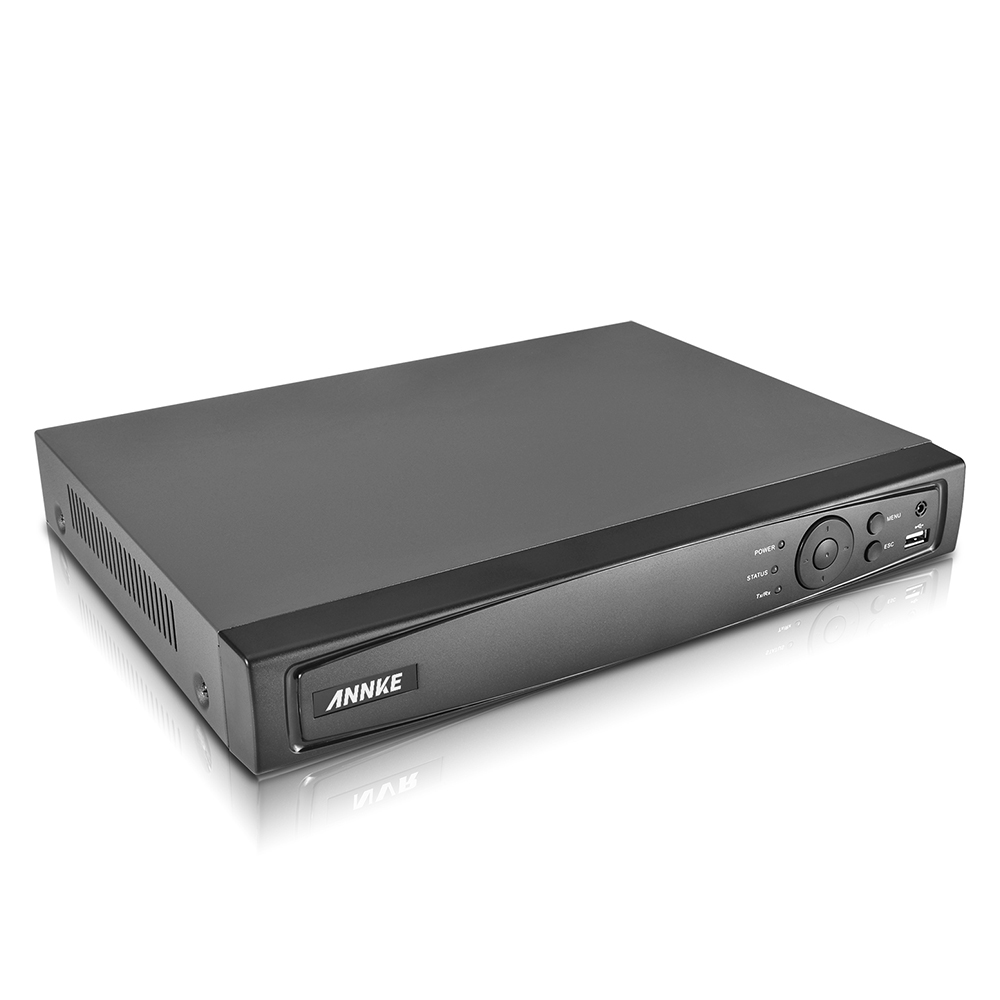

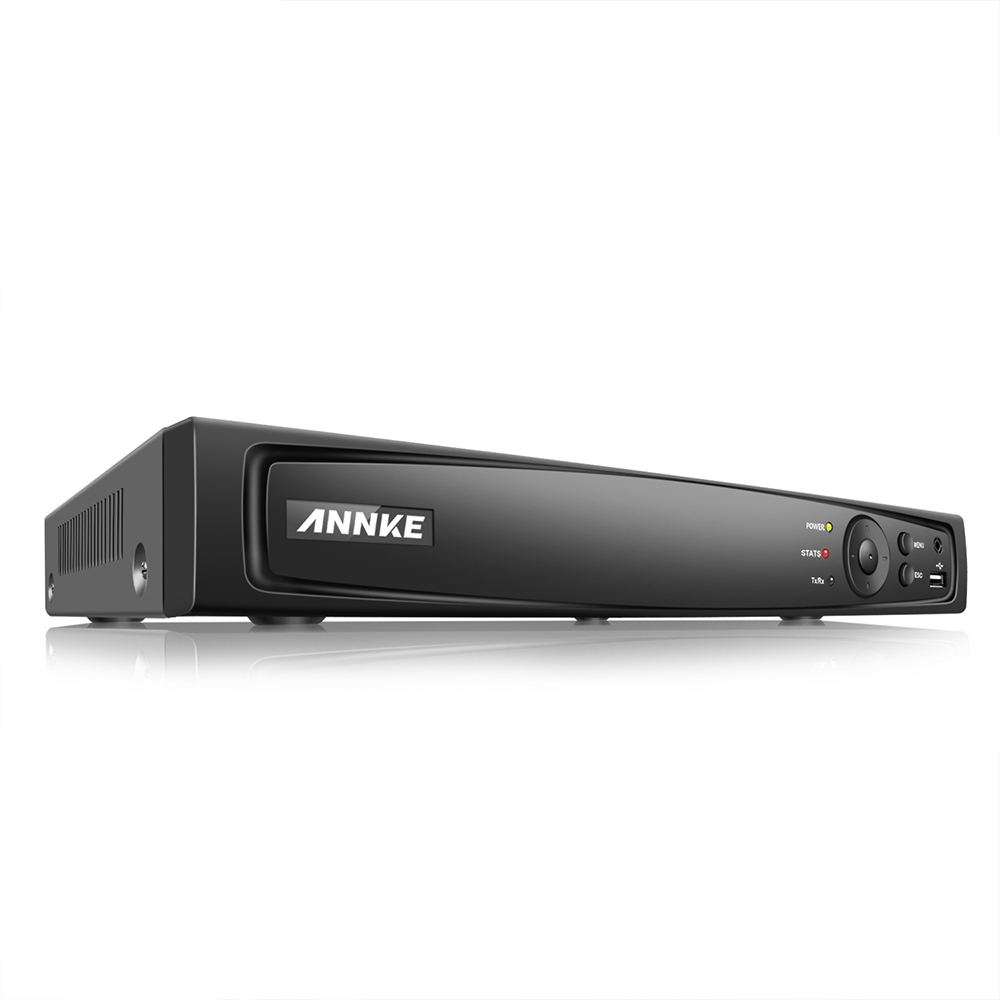

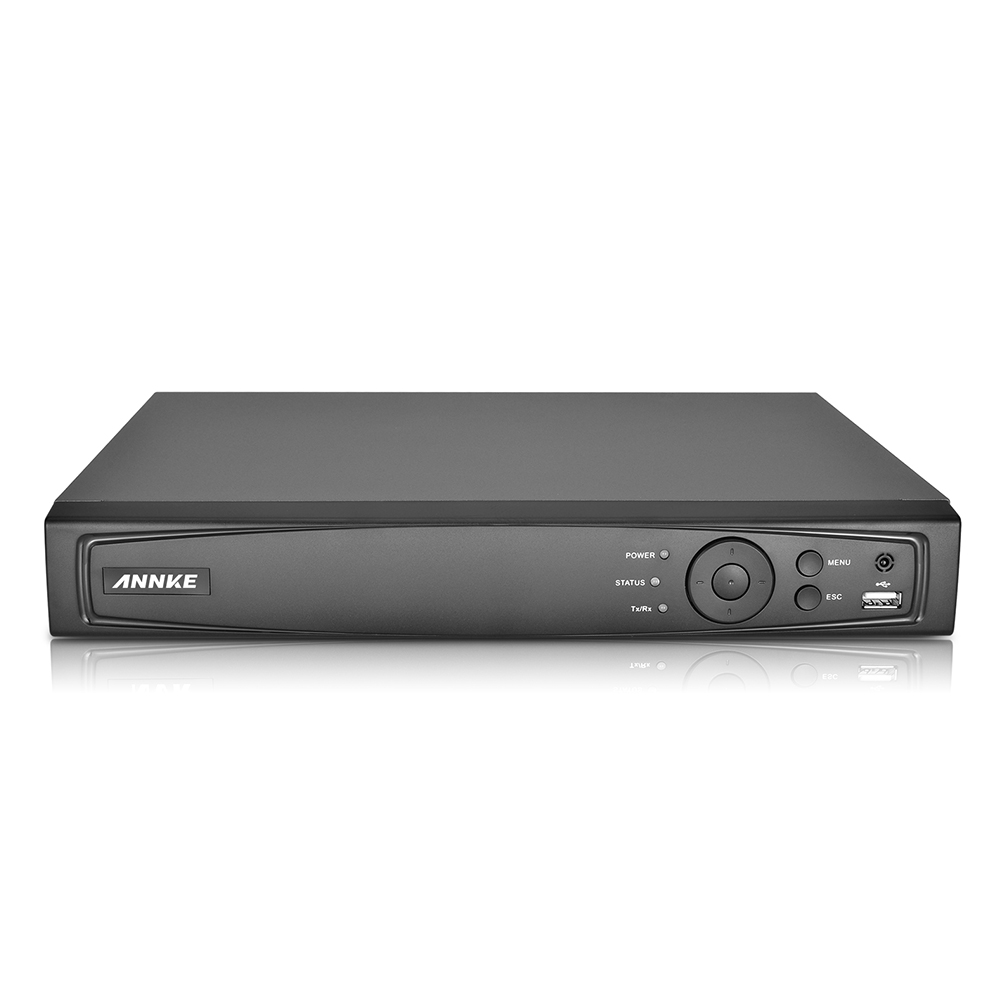

Annke N481Z – 8CH Embedded NVR, HDMI and VGA
In stock
The Annke N481Z 8-Channel Embedded Network Video Recorder (NVR) is a powerful surveillance management solution designed for high-definition IP camera systems. Supporting up to 8 channels and delivering crystal-clear 6MP live viewing, recording, and playback, this NVR provides reliable video management for residential, commercial, and industrial security installations.
Equipped with advanced H.264+ video compression technology, the N481Z significantly reduces bandwidth usage and storage requirements while maintaining excellent image quality. The dual video outputs via HDMI and VGA allow flexible display options for monitoring stations and security control rooms.
The NVR also supports various Video Content Analysis (VCA) detection alarms and intelligent search functions, helping users quickly locate important events and improve overall security monitoring efficiency. With remote viewing support through the Annke View mobile application, users can access live footage, playback recordings, and manage their surveillance system from virtually anywhere.
Product code: N481Z
R1,499.00 R1,811.00
In stock
Features:
- 8-channel embedded network video recorder
- Supports up to 6MP live viewing, recording, and playback
- HDMI and VGA video outputs
- Advanced H.264+ video compression technology
- Intelligent VCA detection alarms
- VCA event search functionality
- Remote viewing via Annke View app
- User-friendly interface for easy operation
- Reliable network-based surveillance management
- Suitable for residential and commercial security systems
Specifications:
- Model: N481Z
- Channels: 8 Channel
- Recorder Type: Embedded NVR
- Maximum Supported Resolution: 6MP
- Video Outputs: HDMI and VGA
- Video Compression: H.264+
- Smart Features: VCA Detection and VCA Search
- Remote Access: Annke View Mobile App
- Network Connectivity: Ethernet
- Application: IP Camera Surveillance Systems
Applications:
- Home security systems
- Offices and business premises
- Retail stores and shopping centres
- Warehouses and industrial facilities
- Educational institutions
- Commercial surveillance installations
Additional Details
| Weight | 2940.0 g |
|---|---|
| Dimensions | 43.0 × 37.2 × 13.8 cm |
| Brand | Annke |
| Barcode | 6009532406438 |
| Annke N481Z – 8CH Embedded NVR | |
| Video & Audio | |
| Video Compression | H.264+/H.264 |
| IP Video Input | 8CH |
| Video Output | HDMI and VGA Up to 1080P |
| Audio Input/Output | 1/1 RCA |
| Incoming bandwidth | 80M |
| Max Recording Resolution | Up to 6M (3072×2048) |
| Max Playback Resolution | Up to 6M (3072×2048) |
| Max Playback Channel | 16CH |
| Max Playback Capacity | 6CH 1080P |
| Onvif Version | 2.4 |
| Hard Drive | |
| HDD | 1 SATA interface |
| HDD Capacity | Up to 4TB capacity |
| External Interface | |
| Network interface | RJ45x1 (10/100/1000M) |
| Alarm Input/Output(Optional) | No(4/1) |
| RS485 | – |
| USB | USB 2.0×1 and USB 3.0×1 |
| General | |
| Operating Power | DC12V |
| Power Consumption | ≤10W (without HDD) |
| Working Temperature | -10 °C ~+55 °C |
| Dimensions(W x H x D | 315 x 240 x 48mm |
| Weight (without hard disk) | ≤1KG (without HDD) |
| Packaging Contents | |
| NVR | 1 |
| Hard Drive (installed) | – |
| USB Mouse | 1 |
| Remote Control | 1 |
| Power Cable | 1 |
| CD | 1 |
| User’s Manual For NVR | 1 |
