CCTV Terminal Type PSU 13.8V 3-5A
Only 10 left in stock

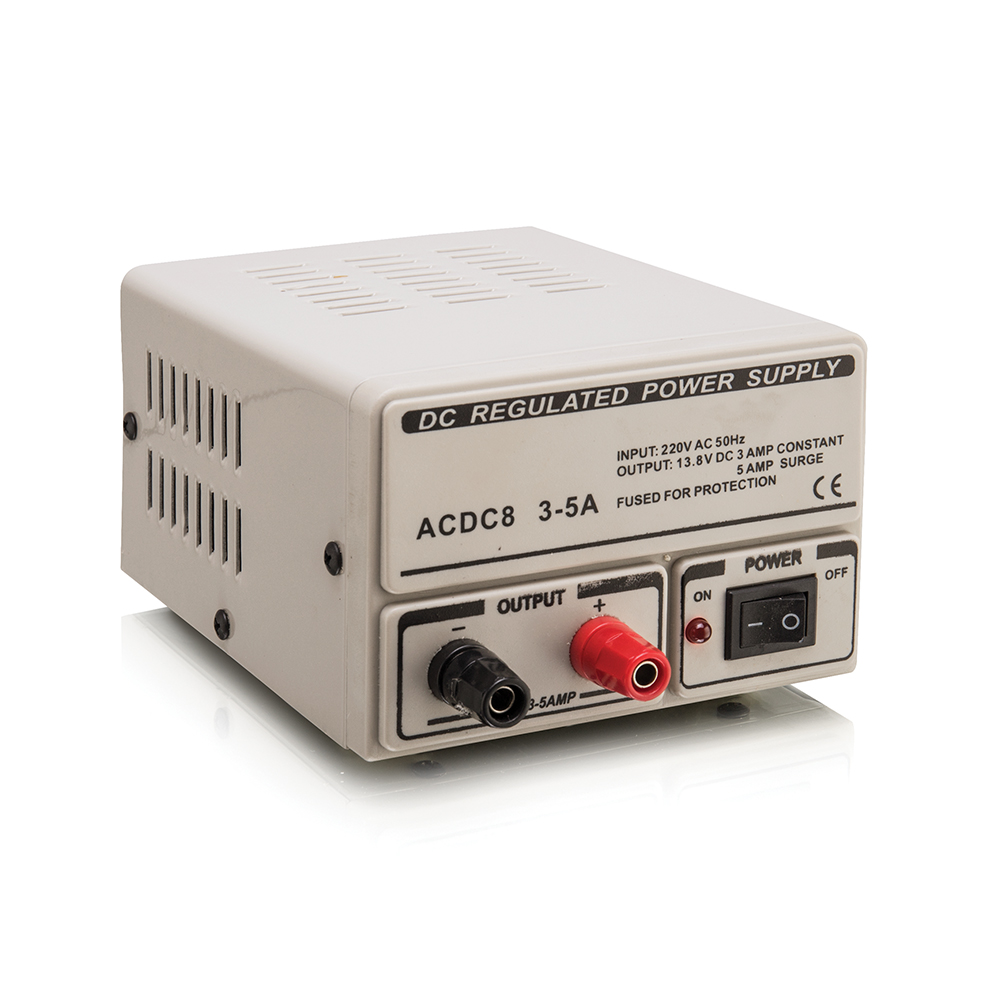

The ACDC8 CCTV Terminal Type PSU is a regulated DC power supply designed to convert standard AC mains power into a stable 13.8V DC output. Ideal for CCTV systems, communication equipment, transceivers, mobile radio installations, testing environments, and other electronic devices requiring regulated DC power, this unit delivers reliable and consistent performance.
Featuring a constant 3A output with up to 5A surge capacity, the power supply incorporates built-in protection mechanisms, including short-circuit protection and current limiting, helping safeguard connected equipment against electrical faults. Its durable metal enclosure and terminal-style output connections make it suitable for both professional and workshop applications.
Product code: ACDC8
R169.00 R199.00
Only 10 left in stock
Features:
- Regulated 13.8V DC power output
- Constant 3A output current with 5A surge capability
- Designed for CCTV, radio, and communication equipment
- Short-circuit protection for DC output
- Current limit protection on AC input
- Low ripple voltage for stable performance
- Durable metal housing
- Terminal-type output connections
- Power status indicator
- Reliable continuous operation
Specifications:
- Model: ACDC8
- Input Voltage: 220V AC, 50Hz
- Output Voltage: 13.8V DC
- Output Current: 3A Continuous / 5A Surge
- Source Regulation: 12A
- Ripple Voltage: 100mV
- Load Regulation: 10%
- Voltage Regulation: 5%
- Protection: Short Circuit Protection and Current Limiting
- Continuous Working Time: Up to 1 Hour
- Connection Type: Terminal Output
- Enclosure: Metal Housing
Applications:
- CCTV surveillance systems
- Two-way radio and transceiver equipment
- Mobile communication devices
- Electronic testing benches
- Security and monitoring equipment
- General 13.8V DC powered devices
Additional Details
| Weight | 1.62 g |
|---|---|
| Dimensions | 21.0 × 16.0 × 8.0 cm |
| Brand | SPACE |
| Barcode | 6009532408326 |
