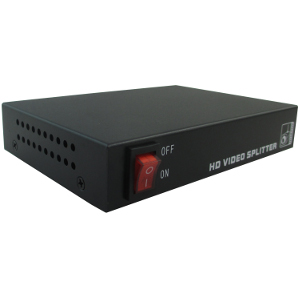

Video / HD Video Splitter 1 Input to 4 Outputs

Features

• 1 video input to 4 video outputs
• Supports analogue and HD-over-coax CCTV systems
• Compatible with HD-TVI, HD-CVI, AHD, and CVBS signals
• Supports Full HD video resolutions up to 1080p (2MP)
• High bandwidth performance up to 200MHz
• Plug-and-play operation
• No software configuration required
• Built-in surge and electrostatic protection
• Durable metal enclosure
• Stable signal distribution without quality loss
• Ideal for CCTV monitoring and video distribution systems

Specifications

• Product Type: CCTV Video Splitter
• Input Ports: 1 x BNC Female
• Output Ports: 4 x BNC Female
• Input Signal Level: 1.0Vp-p / 75Ω
• Output Signal Level: 1.0Vp-p / 75Ω
• Supported Video Formats:
  • HD-TVI
  • HD-CVI
  • AHD
  • CVBS (Analogue)
• Supported Video Standards:
  • PAL
  • NTSC
  • SECAM
• Analog Bandwidth: Up to 200MHz
• Maximum Resolution: 1920 × 1080 (1080p / 2MP)
• Power Input: 12V DC, 2A
• Housing Material: Black Metal Enclosure
• Dimensions: 140 x 100 x 25mm
• Net Weight: 0.27kg

Applications

• CCTV Control Rooms
• Security Monitoring Stations
• Retail Security Systems
• Office Surveillance
• Warehouse Monitoring
• Public Display Systems
• Multi-Monitor Camera Viewing

Benefits

• Distributes a single camera feed to four separate outputs
• Maintains video quality across all outputs
• Supports modern HD-over-coax camera technologies
• Protects connected equipment from surges and static discharge
• Simple installation with no configuration required
• Reliable operation in professional security environments

What’s in the Box

• 1 x Video / HD Video Splitter (1 Input, 4 Outputs)
• 1 x 12V 2A Power Adapter
• User Manual (if supplied)

Ideal for CCTV installations, allowing a single camera feed to be displayed on multiple monitors, DVRs, or video distribution systems simultaneously without compromising image quality.
