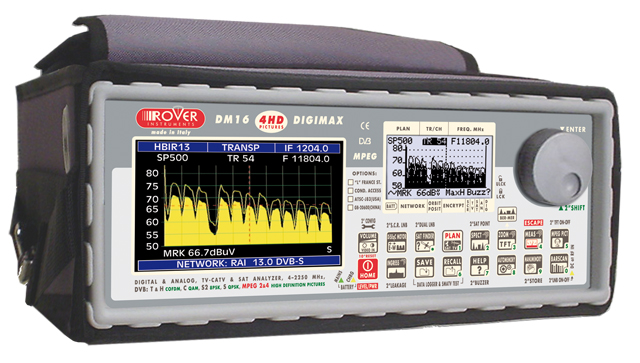

Product Specification

• Pre-memorized Transponder navigation in all worldwide satellites and in all the worldwide standard TV channel plans
• Assisted satellite dish pointing, Double input (DUAL LNB) dish pointing and Sat Finder functions
• All DiSEqC command and SCR with automatic search
• Constellation visualiz,, MER, PER, LDPC, aBER, bBER, EVM, Noise Margin, Level/Power measurements & spectrum analysis
• CABLE MEAS: DOCSIS downstream, INGRESS mode, LEAKAGE mode, BARS SCAN and TILT
• MPEG-2/MPEG-4 HD, H264 decoder · 4.5” 16:9 TFT LED display

 Additional Features

• TV Tuner from 4 to 1.000 MHz, extended CABLE and GSM bands
• Exclusive ROVER Autodiscovery system: automatically recognises and selects analog
  and digital TV COFDM signals in both measurement and spectrum mode
• Detects, measures and SHOWS pictures of the MPEG4 HD High Definition programs
• Automatic quality analysis: FAIL-MARG-PASS
• Dual display: new, ultra-bright TFT with excellent resolution
• Rotational encoder and numerical keyboard
• Simultaneous visualization of pictures and the program list, MPEG-2 & 4 HD and A/V PID
• Auto memory, Manual memory and Data Logger
• Weighs only 2 kg, L 16 x H 11 x D 28 cm
• 2 to 3-hour battery autonomy
• Supplied with soft bag for transport, mains
  adaptor and 12V vehicle adaptor
• Upgradeable online (USB-2 socket)
• Bluetooth communication (optional)
