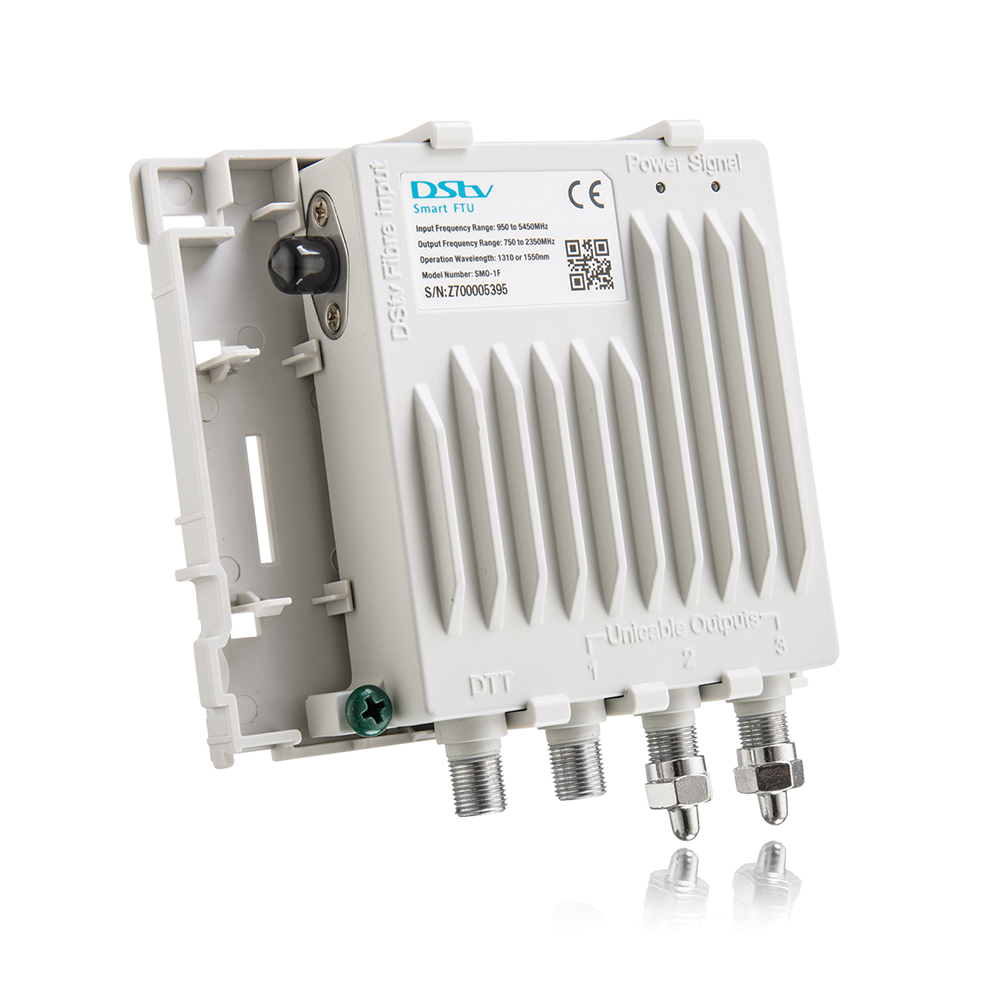

DStv Fibre Termination Unit (ZINWELL GTU/MS)

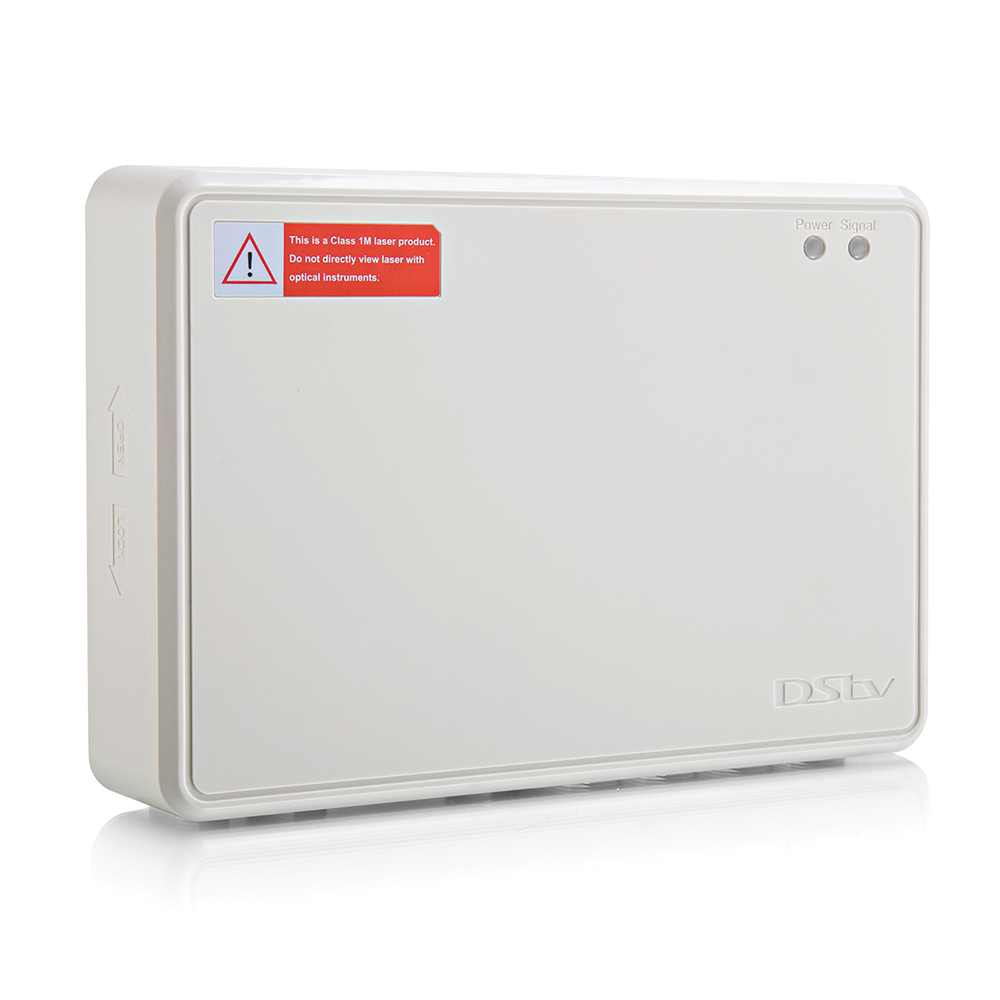

DStv Fibre Termination Unit (ZINWELL GTU/MS) - Image 2
,

DStv Fibre Termination Unit (ZINWELL GTU/MS)

Availability:

In stock

The DStv Fibre Termination Unit (FTU) with 3 Unicable (DSCr) outputs and 1 DTT output is designed and manufactured for DStv communal systems which make use of the fibre.

Product code: ZINWELL GTU/MS

R1,239.00 R1,499.00

The DStv Fibre Termination Unit (FTU) with 3 Unicable (DSCr) outputs and 1 DTT output is designed and manufactured for DStv communal systems which make use of the fibre.

Features:
SMO-1F (Fibre Termination Unit)
• Fibre Input
• Lamp: Power & Signal
• Digital Terrestrial Television
• Unicable Outputs x 3

SMO-1W (Wave Division Multiplexer)
• Fibre Input Wavelength: 1270-1600nm
• Fibre Output Wavelength: 1545-1600nm
• Data Fibre Output Wavelength: 1270-1500nm

This product cannot be purchased.
SKU: ZINWELL GTU/MS Categories: , Tags: ,

Additional Details

SKU: ZINWELL GTU/MS | Tags: , | Categories: ,

Weight 4.0 g
Dimensions 30.0 × 5.0 × 5.0 cm
Brand

DSTV
Barcode

6009532403635
Unicable Output Ports
Frequency: 750 ~ 2350MHz
Output Return Loss: > 8 dB
Typical Output Signal Power: > -30 dBm
Flatness with all UserBands Active: +3 +/- 1, (750 to 2350MHz)
TX / RX Command Protocol: EN-50494 & EN-50607
MoCA / RF Pass-Through
Insertion Loss (7MHz): < 8 dB
Insertion Loss (5 ~ 625MHz): < 12 dB
Insertion Loss (625 ~ 700MHz): < 16.5 dB
Band Rejection (750 ~ 2350MHz): > 25 dB
DTT/DAB/FM Output Port
Frequency: 88 ~ 862 MHz
Output Return Loss: > 10 dB
Gain Variation Across Band: < 5 dB
System
LED – Unit Power Indicator: Green LED
LED – Signal Received from HE: Blue LED
Operating Power Required: 6.75W (450mA @ 15V) max
Wave Division Multiplexer for COFZFTU-CWDM
Fibre Input Wavelength: 1270-1600nm
Fibre Output Wavelength: 1545-1600nm
Data Fibre Output Wavelength: 1270-1500nm
