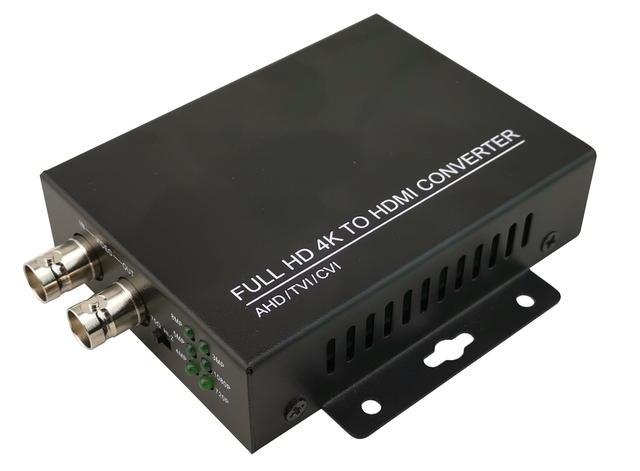

Space TV TVI/CVI/AHD/CVBS to HDMI Converter (Supports 4K Video Input)

Features

• Converts TVI, CVI, AHD, and CVBS video signals to HDMI
• Supports TVI camera resolutions up to 8MP (4K)
• Compatible with CVI cameras up to 4MP
• Compatible with AHD cameras up to 5MP
• Supports standard analogue CVBS cameras
• Full HD 1080p HDMI output

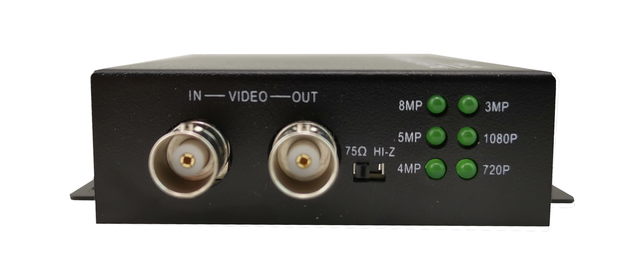

• BNC video input and loop-through output
• LED indicators display detected input resolution
• Plug-and-play operation
• Compact metal housing
• Easy installation with no software required

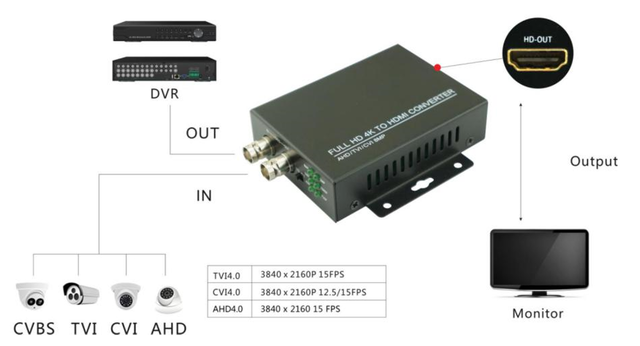

• Can be used as part of a video distribution solution

Specifications

• Product Type: Video Signal Converter
• Supported Input Formats:
  • HD-TVI
  • HD-CVI
  • AHD
  • CVBS
• Maximum TVI Resolution Support:
  • 720p
  • 1080p
  • 3MP
  • 4MP
  • 5MP
  • 8MP (4K)
• Maximum CVI Resolution Support: 4MP
• Maximum AHD Resolution Support: 5MP
• HDMI Output Resolution: 1080p Full HD
• Video Input: 1 x BNC
• Video Loop Output: 1 x BNC

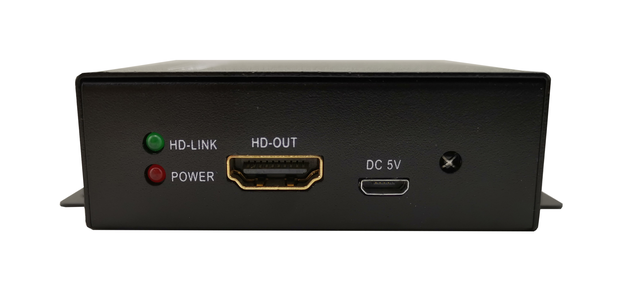

• HDMI Output: 1 x HDMI
• Housing Material: Metal
• Installation Type: Desktop or Surface Mount

Applications

• CCTV Monitoring Stations
• Security Control Rooms
• Public Viewing Displays
• Surveillance Demonstrations
• Camera Testing and Diagnostics
• Retail Security Systems
• Home and Commercial CCTV Installations

Benefits

• Displays HD surveillance camera feeds on HDMI monitors and TVs
• Supports multiple CCTV video standards in a single device
• Eliminates compatibility issues between camera technologies and displays
• Provides simple plug-and-play setup
• Supports modern HDMI displays without requiring a DVR
• Ideal for live camera viewing and demonstrations

What’s in the Box

• 1 x Space TV TVI/CVI/AHD/CVBS to HDMI Converter
• 1 x Power Adapter
• 1 x BNC Cable
• 1 x USB Power Cable
• User Documentation (if supplied)

Ideal for installers and security professionals, this converter allows direct viewing of TVI, CVI, AHD, and CVBS camera feeds on HDMI-equipped monitors while supporting video inputs up to 8MP (4K) resolution.
