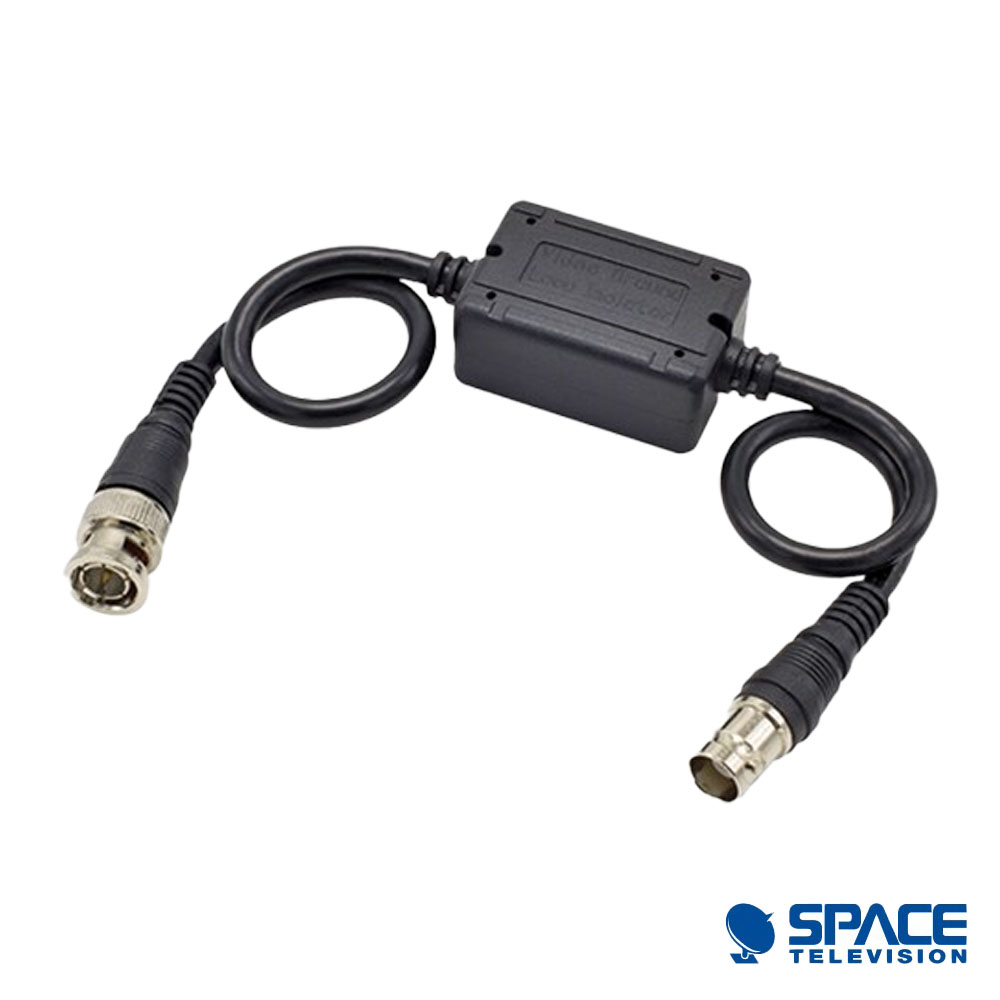

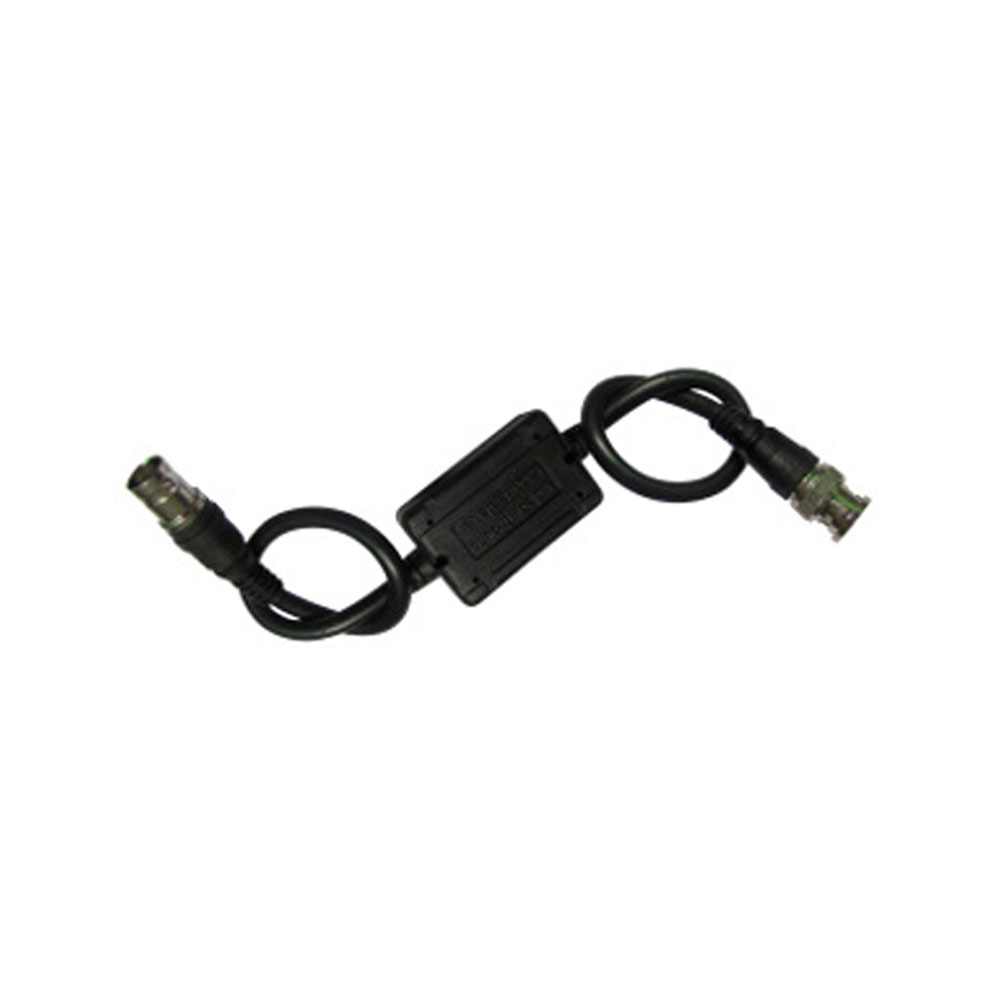

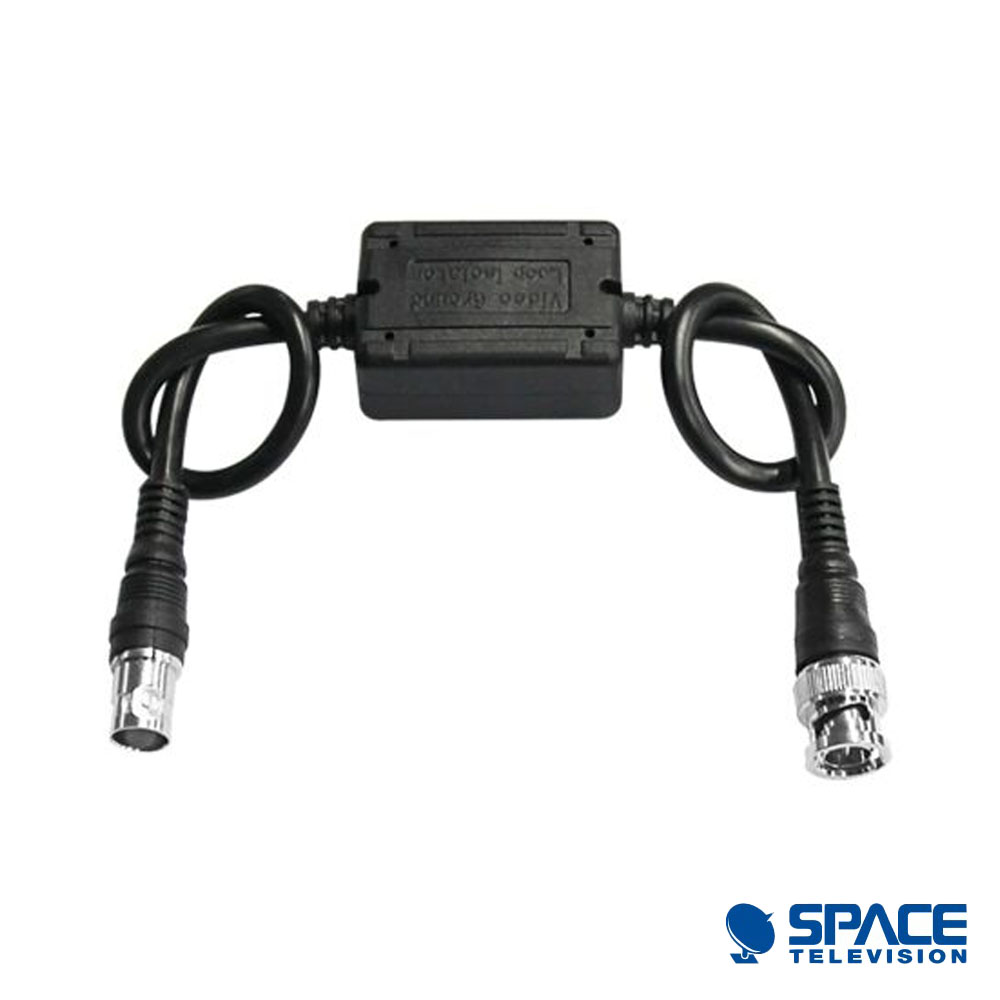

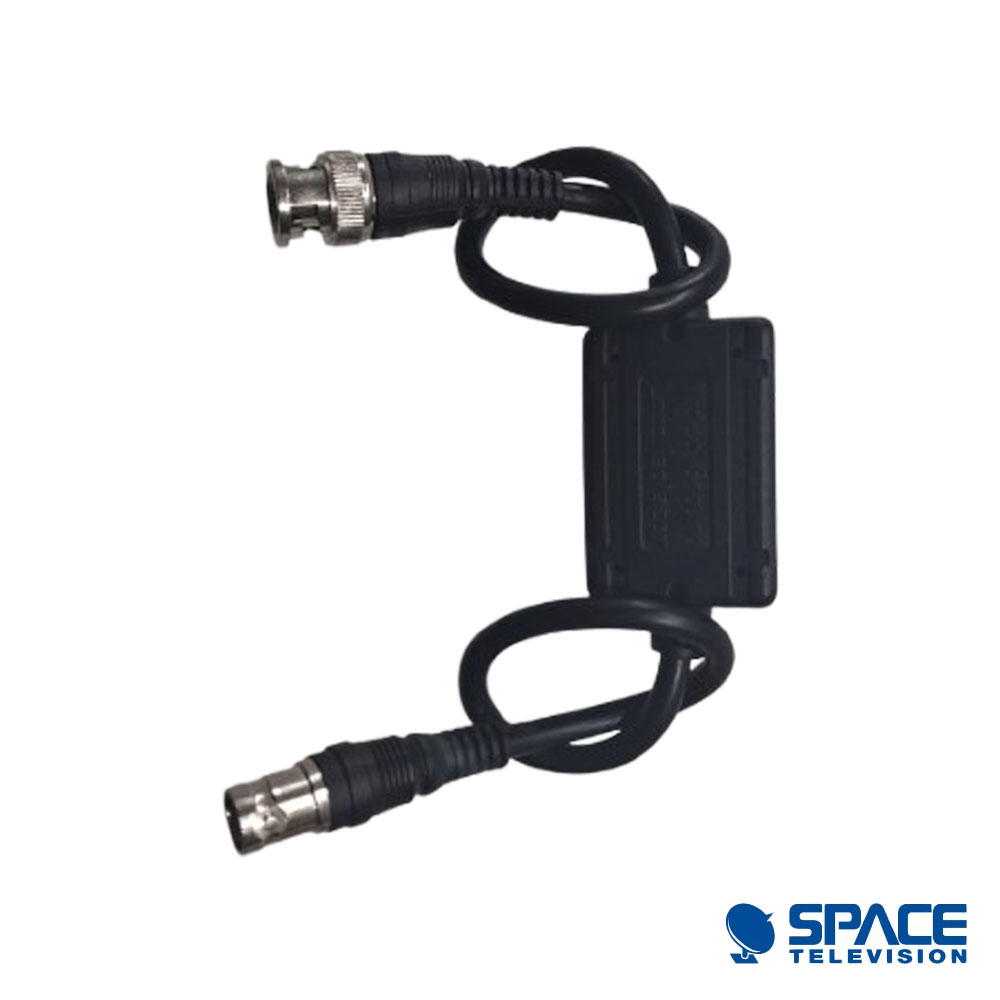

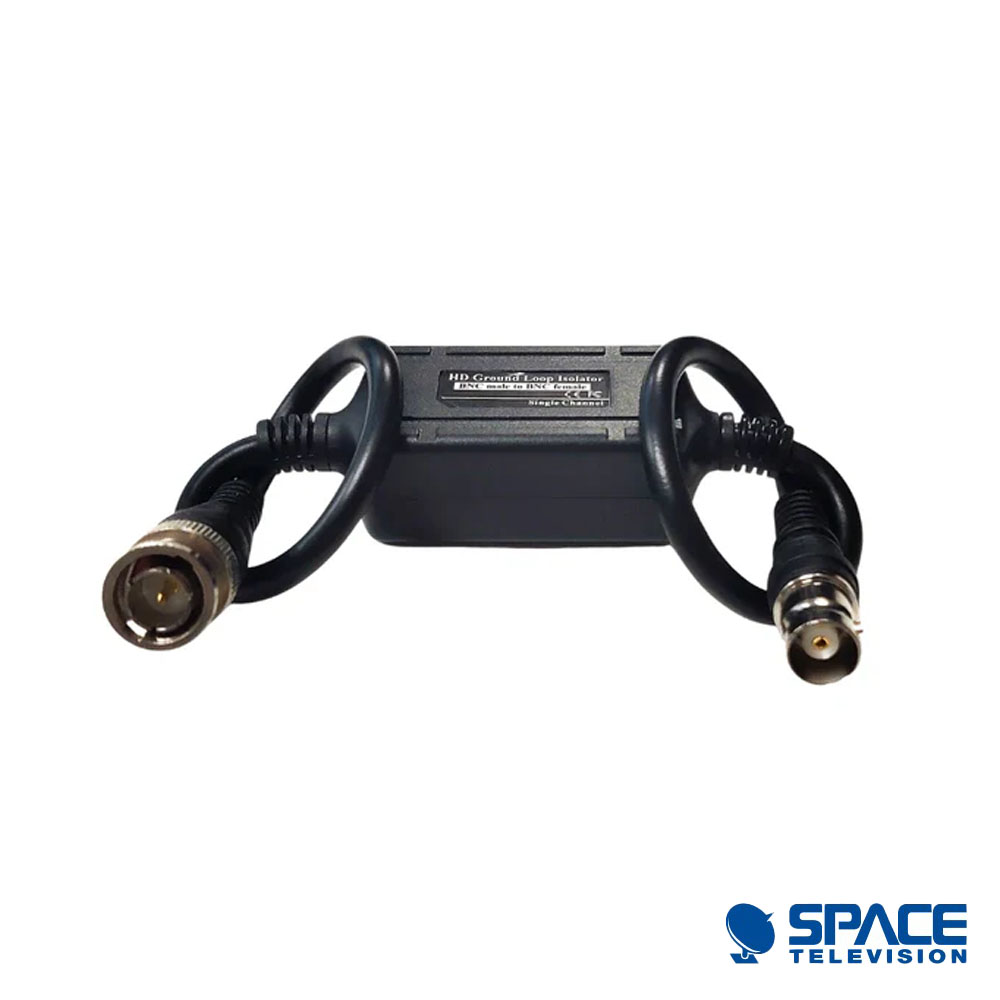

HD Video Ground Loop Isolator
In stock
GL001-HD is a high performance and highly reliable HD video ground loop isolator that mainly uses for solving the signal interference problem caused by potential source of interference.It features two BNC jack of male and female with superior lightning protection. In actual use,the isolator is connected directly to the HD camera and DVR. Once the signal passed the isolator, it will become a clear video picture,without any ghost. It is widely used in various security monitoring system.No power,easy and convenient installation,and high performance.
Product code: GL001HD
R259.00 R318.00
In stock
Key Features:
- Compatible with all HD-TVI, HD-CVI & AHD analog camera
- BNC male to BNC female with mini 20cm RG 59 coaxial pigtail lead on both sides.
- Passive, No power supply required
- Prevents video-signal distortion caused by video ground loop
- Eliminates picture tearing, cross talk and rolling
- Prevents power cables laid by others interfering with the CCTV system
- Built in TVS (Transient Voltage Suppressors) for surge protection
- Directly connect to camera or DVR, Monitor, etc
- Ground Loop Circuit Isolation: ＞90dB ＞50H
- Insert Loss: ＜0.5 dB
- Dimensions:50 * 28* 28mm (L*W*H BNC connector included)
Additional Details
| Weight | 80.0 g |
|---|---|
| Dimensions | 11.6 × 5.6 × 4.0 cm |
| Brand | Space |
| Barcode | 6009532402171 |
Related products
-
Audio & Visual, Ceiling Speakers

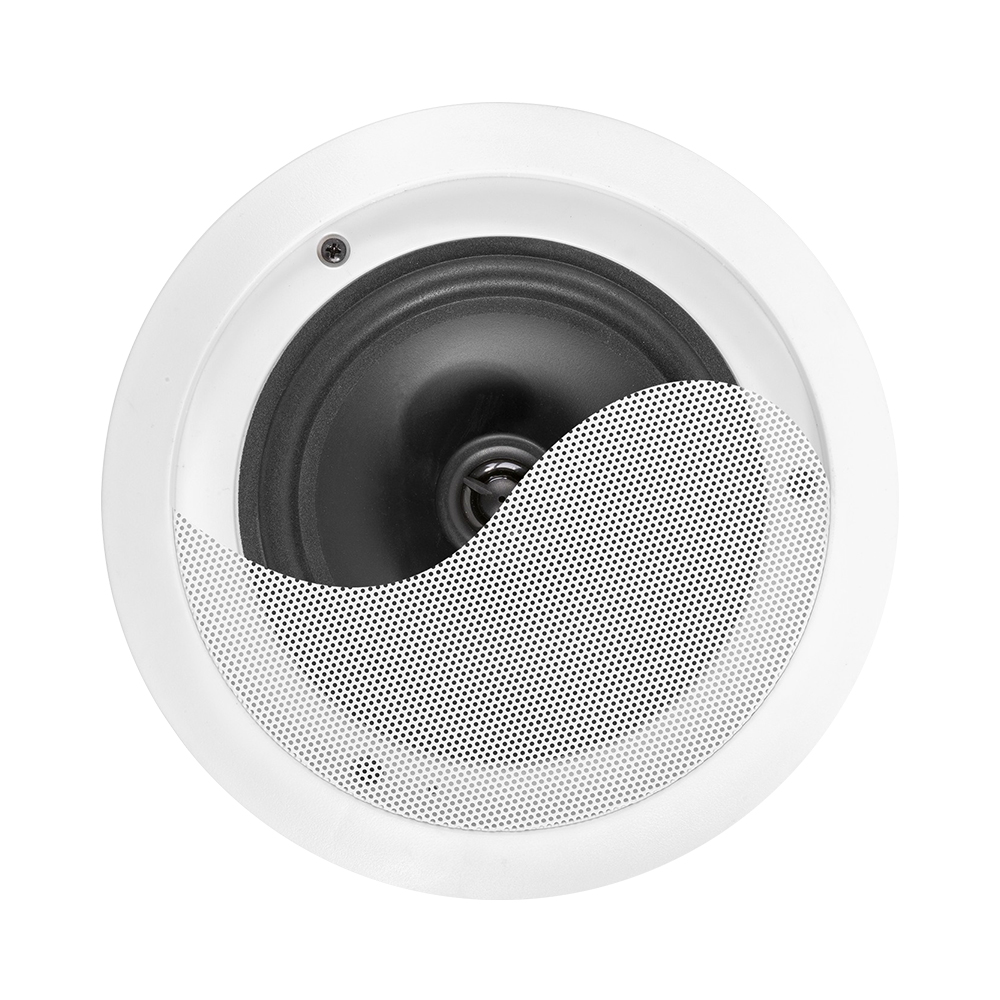

Space Audio Ceiling Speaker 40W 100V 6.5” Aluminium
