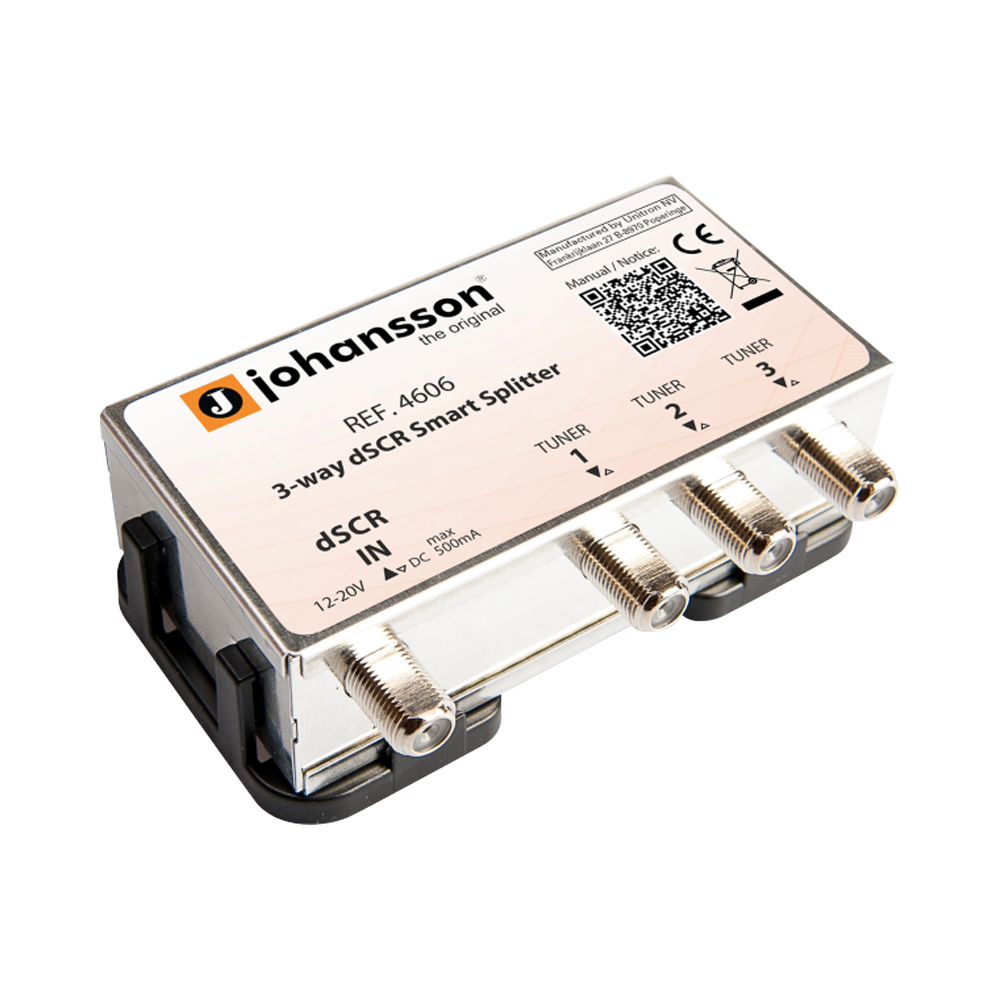

Johansson 4606 – 3-Way dSCR Smart Splitter
In stock
Johansson Unicable Smart Splitter with 3-way dSCR splitter with heartbeat pass-through. The heartbeat passes through all 3 outputs, making it ideal for Xtraview installations.
Product code: 4606
R459.00 R550.00
In stock
3-way smart splitter for dSCR application
Standard splitters can give collisions when two commands come at the same time or when one of the set-top boxes uses a permanent high voltage. A smart splitter captures the commands of the different set-top boxes and serializes them to guarantee no collisions happen.
• Indoor housing
• 3-way smart splitter for dSCR application
• Heartbeat passes through all 3 outputs, ideal for Xtraview installations
• No DiseqC dSCR/dCSS signals collision
• Compatible with any DC level dSCR/dCSS Set-Top-Box
• Supports the EN50494 standard
• No power adapter needed
• Buffers and sends out the different command signals
Additional Details
| Brand |
|---|
| Output | 3 |
| Frequency range | 5-2150 Mhz |
| Insertion loss | 9 dB |
| Return loss in / out | >10 dB |
| DC power pass | 50 mA (max.) |
| Consumption | 25 mA (12V) – 35 mA (24V) |
| Input Voltage | 12 min. / 20 max. VDC |
| DiSEqC | DiSEqC compliant |
| SCR Standard | EN50494 |
| Dimensions (W x H x D) | 114 x 56 x 35 (mm) |
