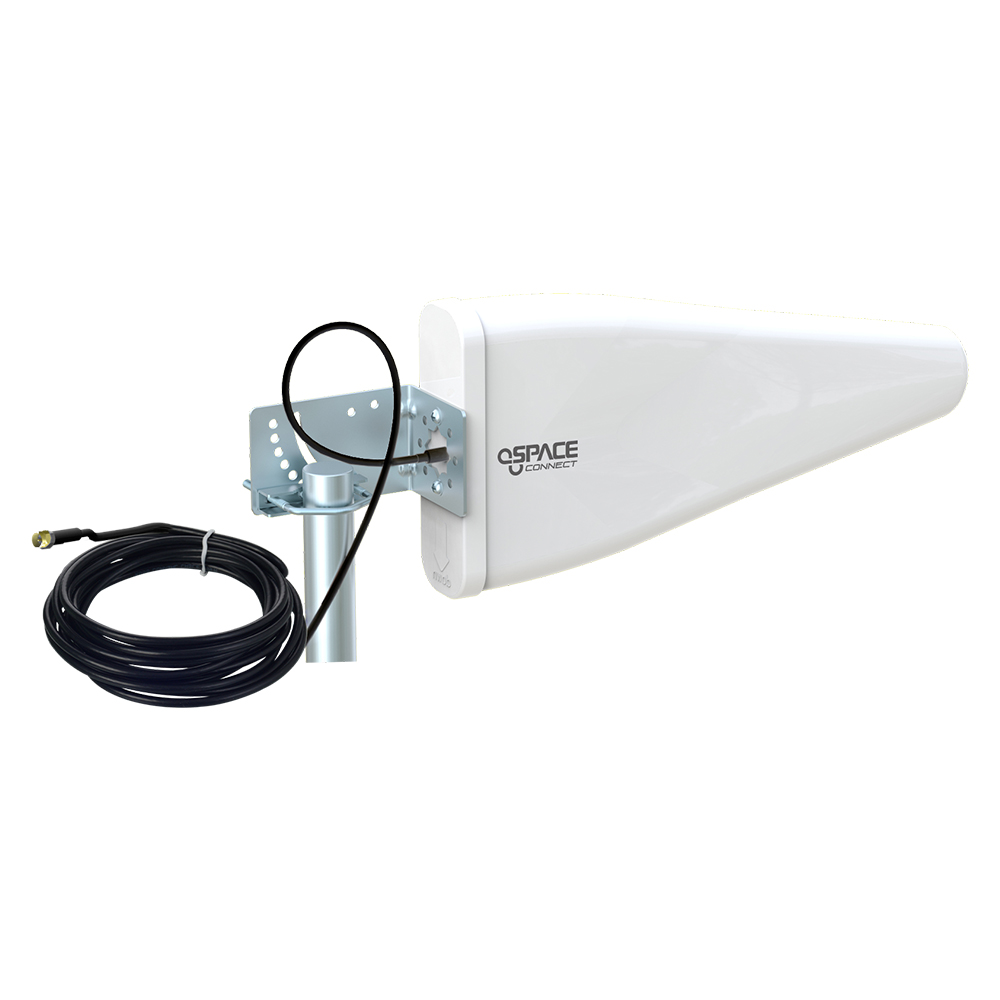

Space Television 5G-Ready Directional Outdoor Antenna 11dBi – GSM/Wi-Fi/3G/4G/LTE/5G with 7m Cable

The Space Television 5G-Ready Directional Outdoor Antenna is designed to improve wireless signal reception for compatible GSM, Wi-Fi, 3G, 4G, LTE and selected 5G low-band applications.

Featuring a directional design and a gain of 10–11dBi, this antenna focuses reception towards a selected signal source, making it suitable for locations where improved signal reception is required. It is a practical solution for residential and commercial installations, particularly in areas where indoor reception may be limited.

Designed for outdoor installation, the antenna features an IP65-rated weather-resistant housing and sturdy mounting brackets for secure pole installation. It includes a 7m low-loss CRG195 50-ohm coaxial cable with an SMA male connector, providing a convenient connection to compatible routers, modems and wireless equipment.

Key Features

• 5G-ready directional outdoor antenna.
• Supports compatible GSM, Wi-Fi, 3G, 4G, LTE and selected 5G low-band applications.
• High gain of 10–11dBi for focused signal reception.
• Covers multiple frequency bands from 698MHz to 5000MHz.
• Includes 7m low-loss CRG195 coaxial cable.
• 50-ohm impedance.
• SMA male connector for compatible equipment.
• IP65-rated housing for outdoor use.
• Durable mounting brackets with wingnuts.
• Suitable for pole diameters between 30mm and 53mm.
• Supports vertical or horizontal polarisation.
• DC grounding on the antenna.
• Wide operating temperature range of -40°C to +60°C.

Benefits

• Directional Signal Reception: Focuses reception towards a selected signal source, helping improve reception where the antenna can be correctly positioned.
• Multiple Network Applications: Supports a range of wireless communication technologies across its specified frequency bands.
• Flexible Installation: The included 7m cable allows the antenna to be mounted in a suitable outdoor position away from the connected equipment.
• Outdoor Protection: The IP65-rated housing provides protection against dust and water jets.
• Secure Mounting: Supplied mounting brackets and wingnuts allow installation on compatible poles.
• Versatile Connectivity: Suitable for compatible cellular routers, modems and other wireless equipment with the appropriate SMA connection.

Applications

• Compatible 4G and LTE routers and modems.
• Supported 5G low-band applications.
• GSM and 3G signal reception.
• Compatible Wi-Fi equipment.
• Rural and remote wireless installations.
• Residential internet connectivity setups.
• Commercial wireless communication installations.
• Outdoor antenna installations requiring directional reception.

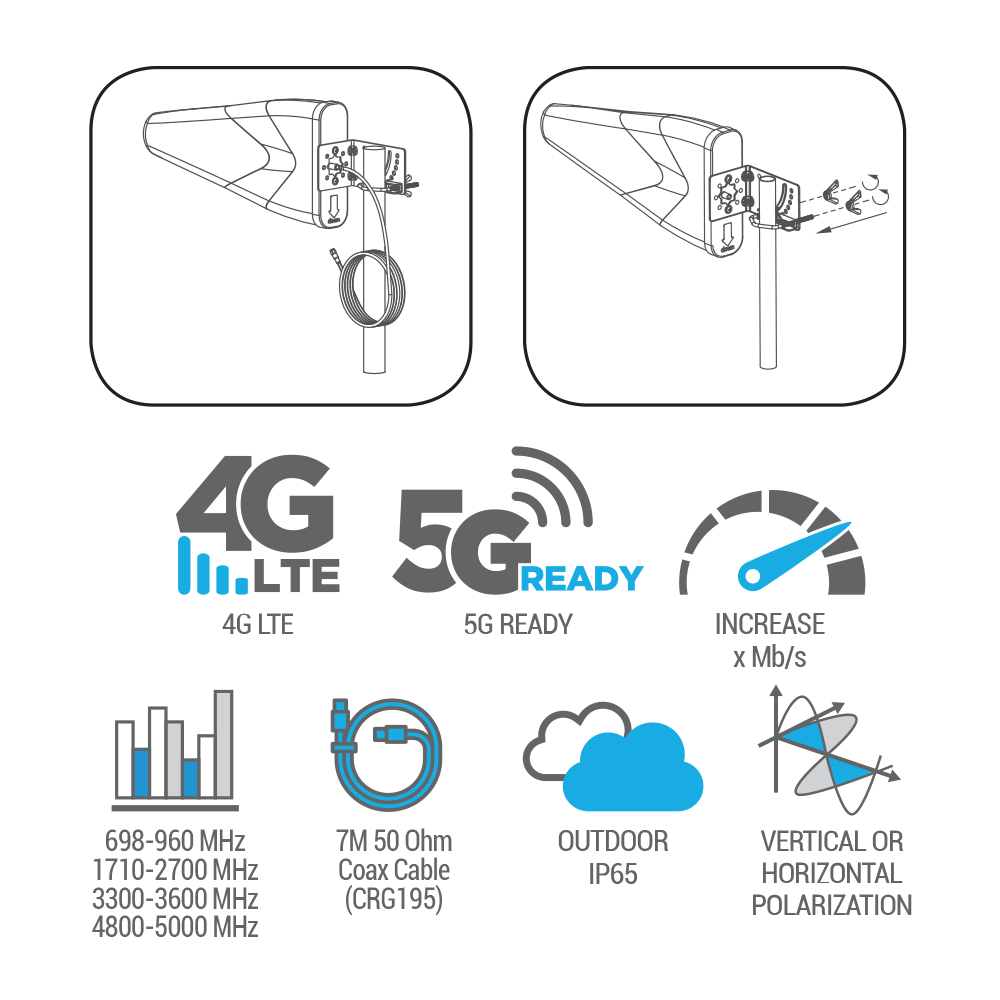

Technical Specifications

Product Name: Space Television 5G-Ready Directional Outdoor Antenna
Antenna Type: Directional
Covered Services: GSM, Wi-Fi, 3G, 4G, LTE and selected 5G low-band applications

Frequency Range:

• 698–960MHz
• 1710–2700MHz
• 3300–3600MHz
• 4800–5000MHz

Antenna Gain: 10–11dBi
Impedance: 50 ohms
Polarisation: Vertical or horizontal
VSWR: ≤ 2.5
Horizontal Beamwidth: 60°
Vertical Beamwidth: 55°
Installation Type: Outdoor
IP Rating: IP65
Antenna Dimensions: 445 × 210 × 70mm
Antenna Weight: 1.18kg
Housing Material: ABS
Colour: Creamy white
Compatible Pole Diameter: 30–53mm
Mounting Hardware: Brackets with wingnuts
Rated Wind Velocity: 100km/h
Lightning Protection: DC ground on antenna
Operating Temperature: -40°C to +60°C

Included Cable Specifications

Cable Type: CRG195 low-loss coaxial cable
Cable Length: 7m
Cable Impedance: 50 ohms
Cable Colour: Black
Cable Jacket: PVC
Connector: SMA male
