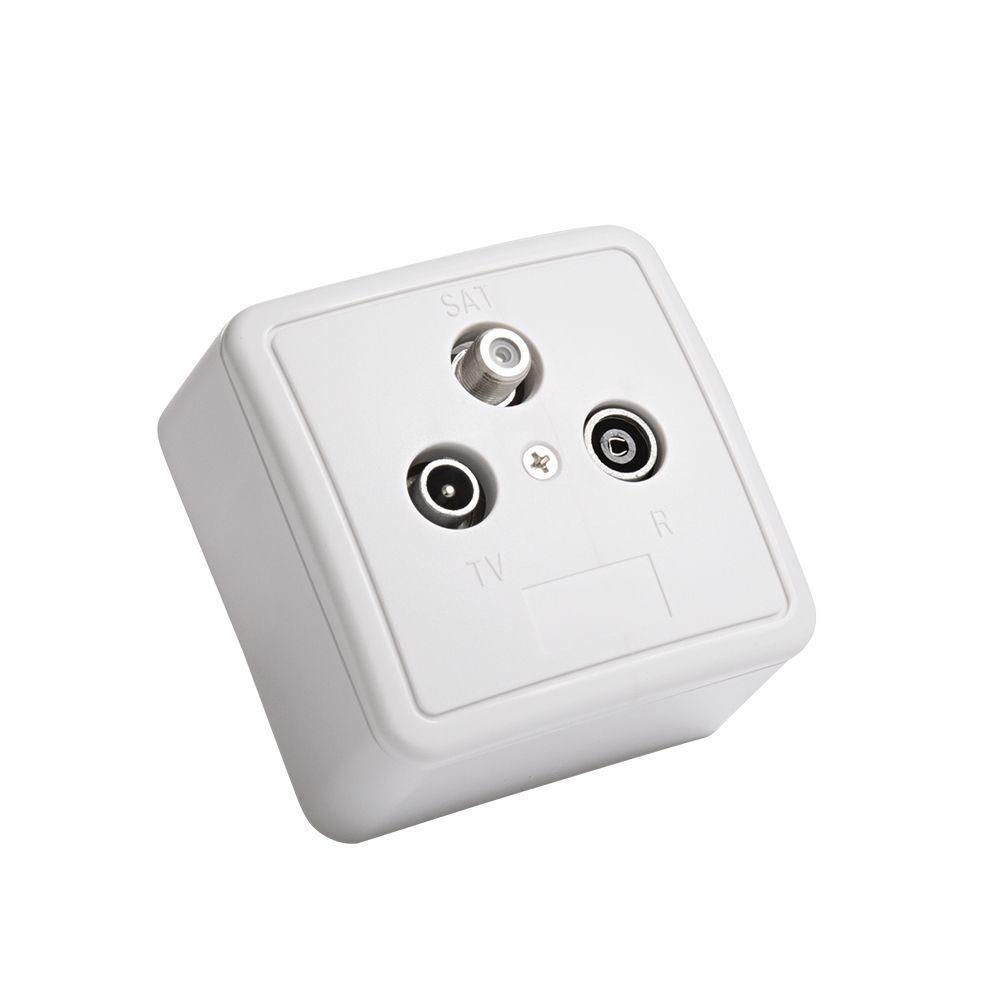

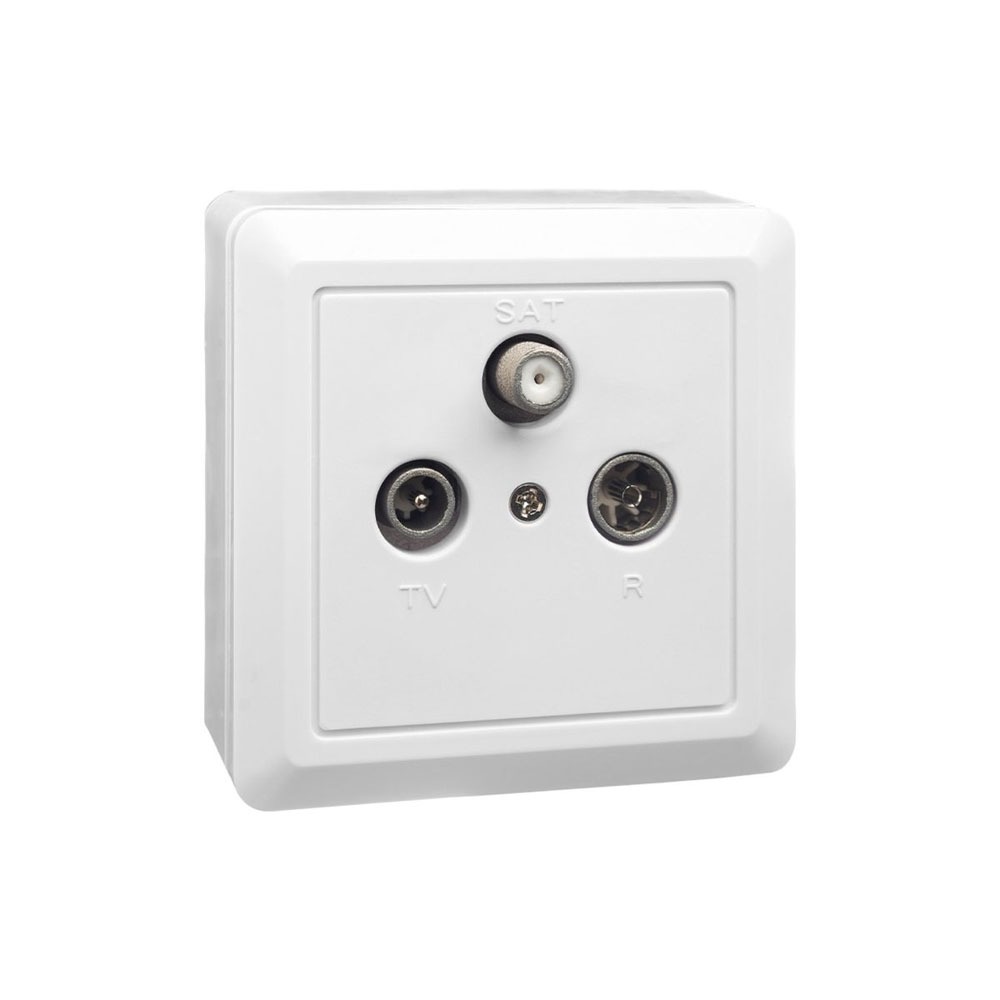

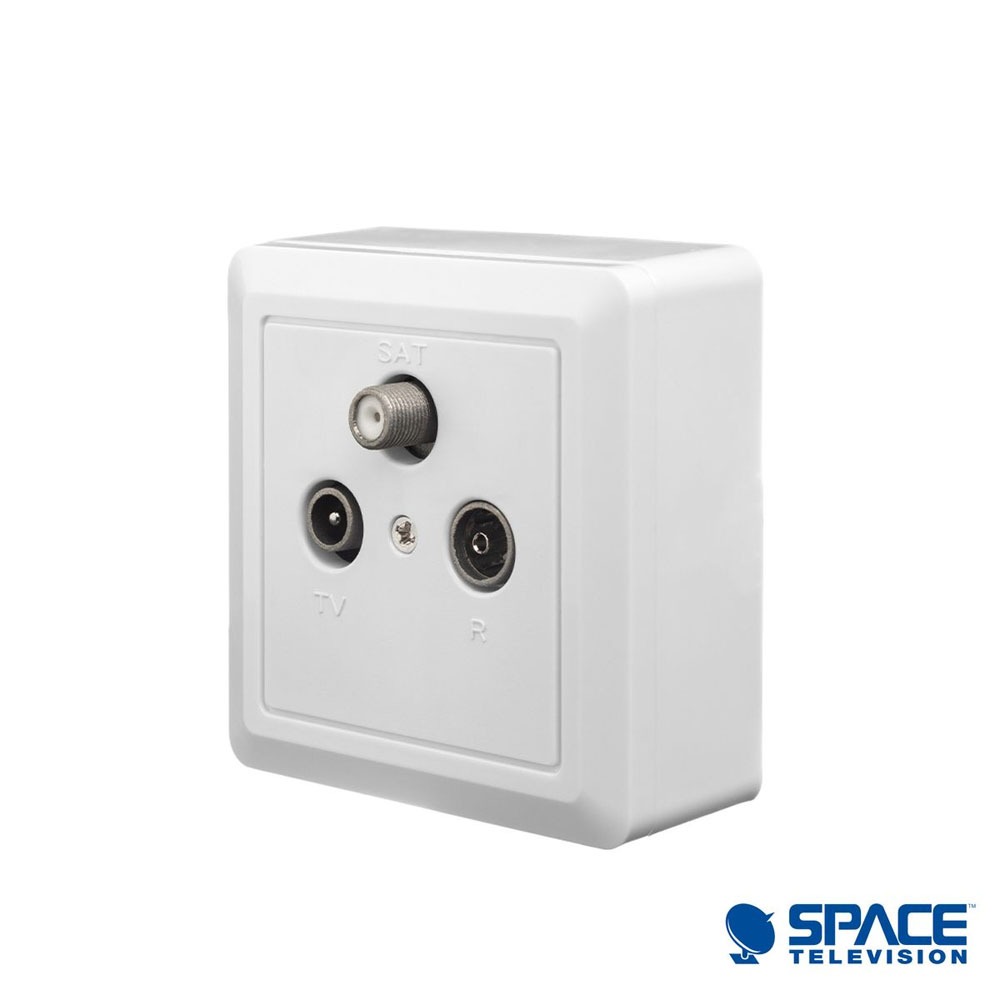

SAT-TV-FM 2×2 End Wall Outlet Socket 1dB (5-2400Mhz)
In stock
SAT-TV-FM 2×2 End Wall Outlet Socket 1dB (5-2400Mhz)
Product code: SWO/0+C+F
R99.00 R116.00
In stock

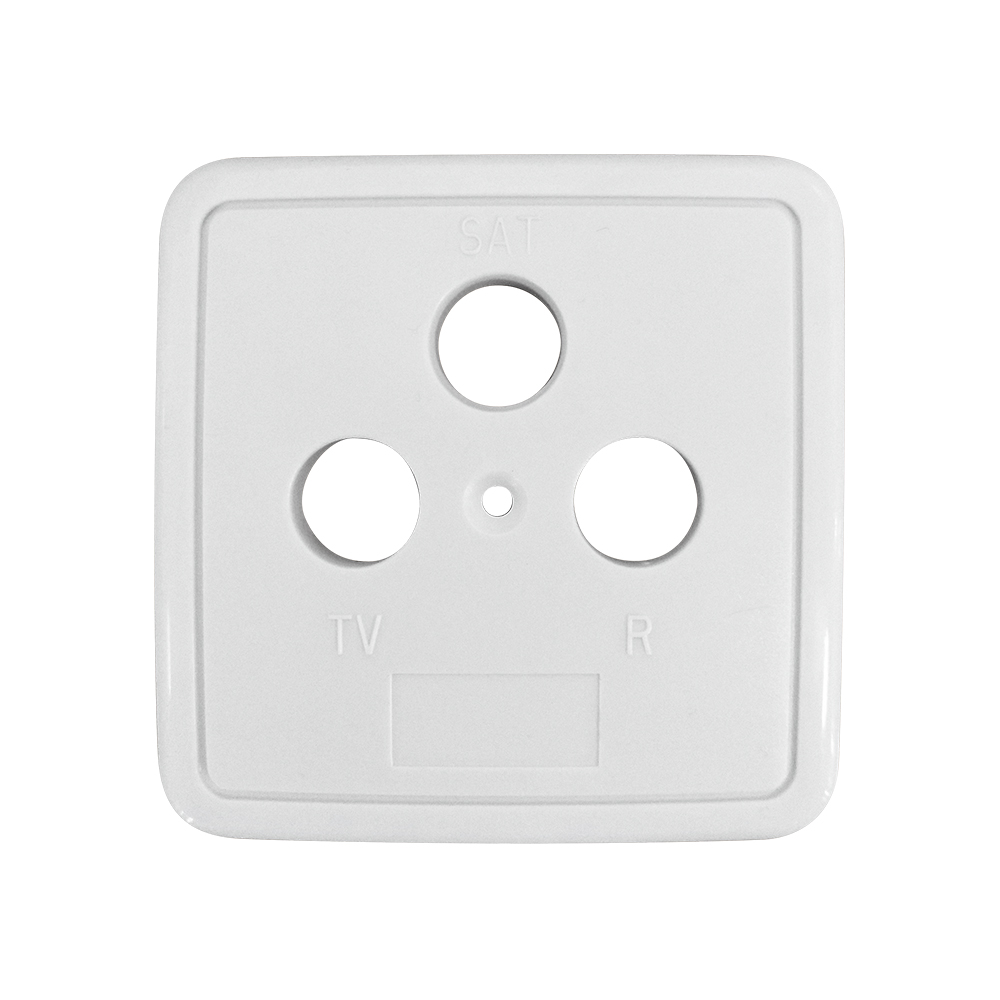

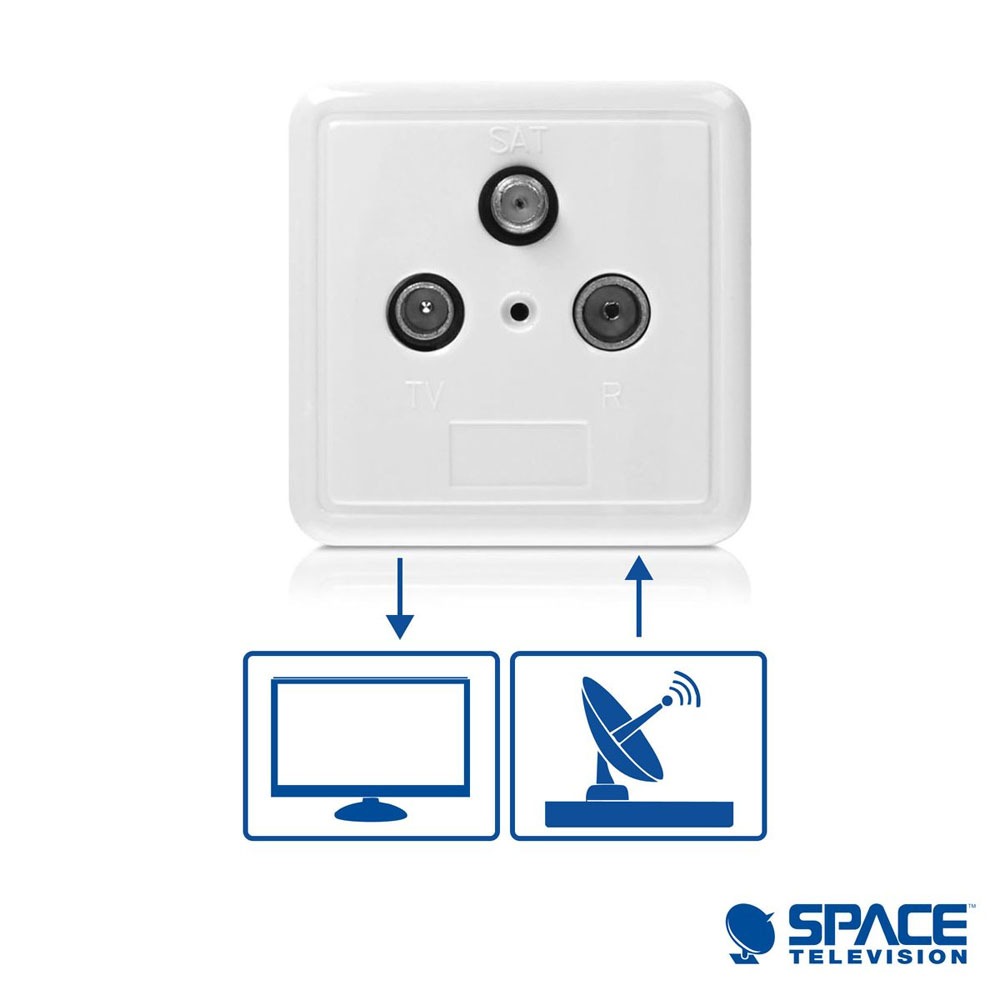

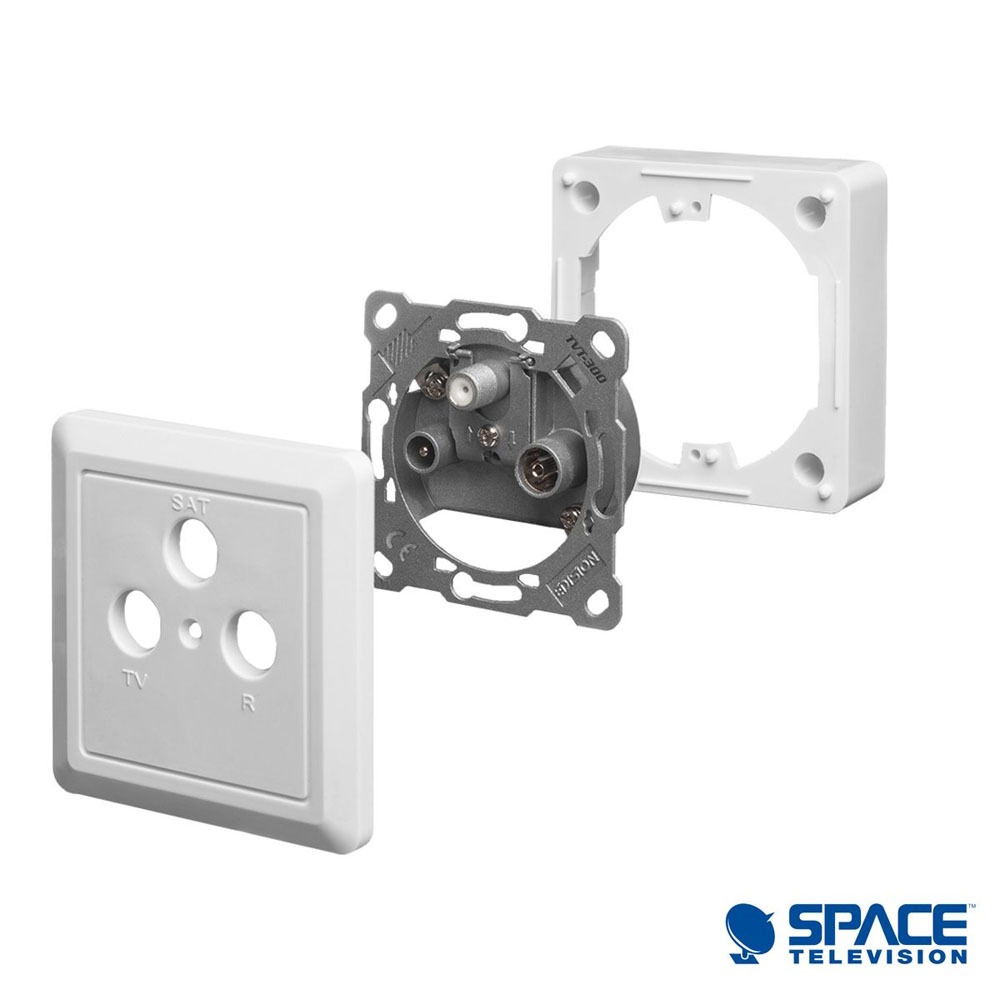

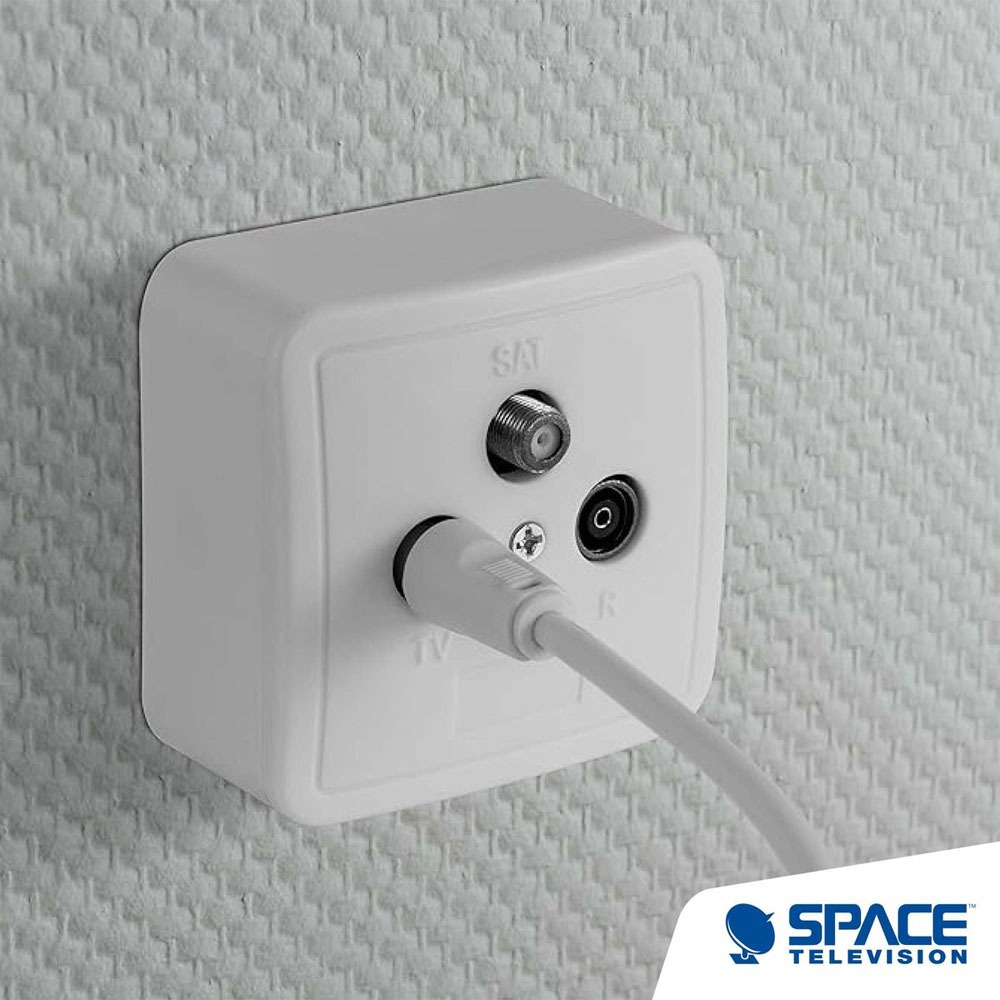

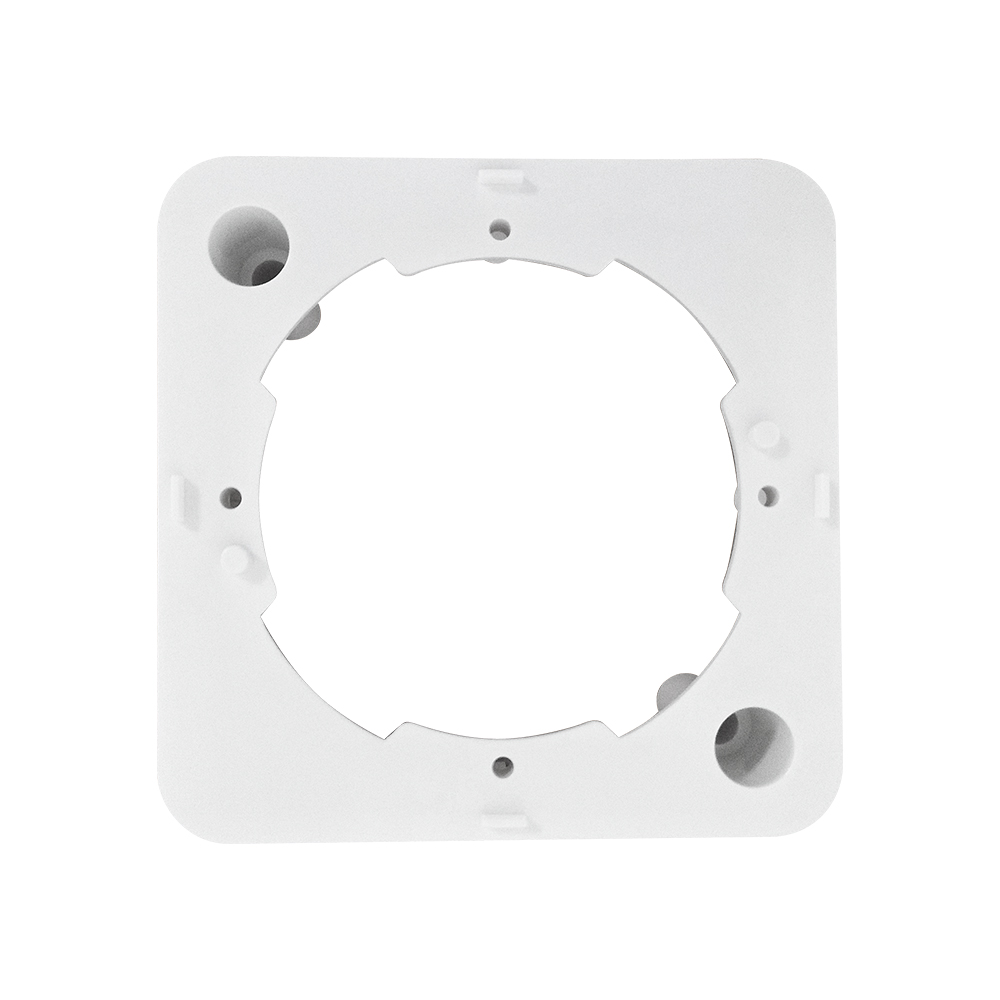

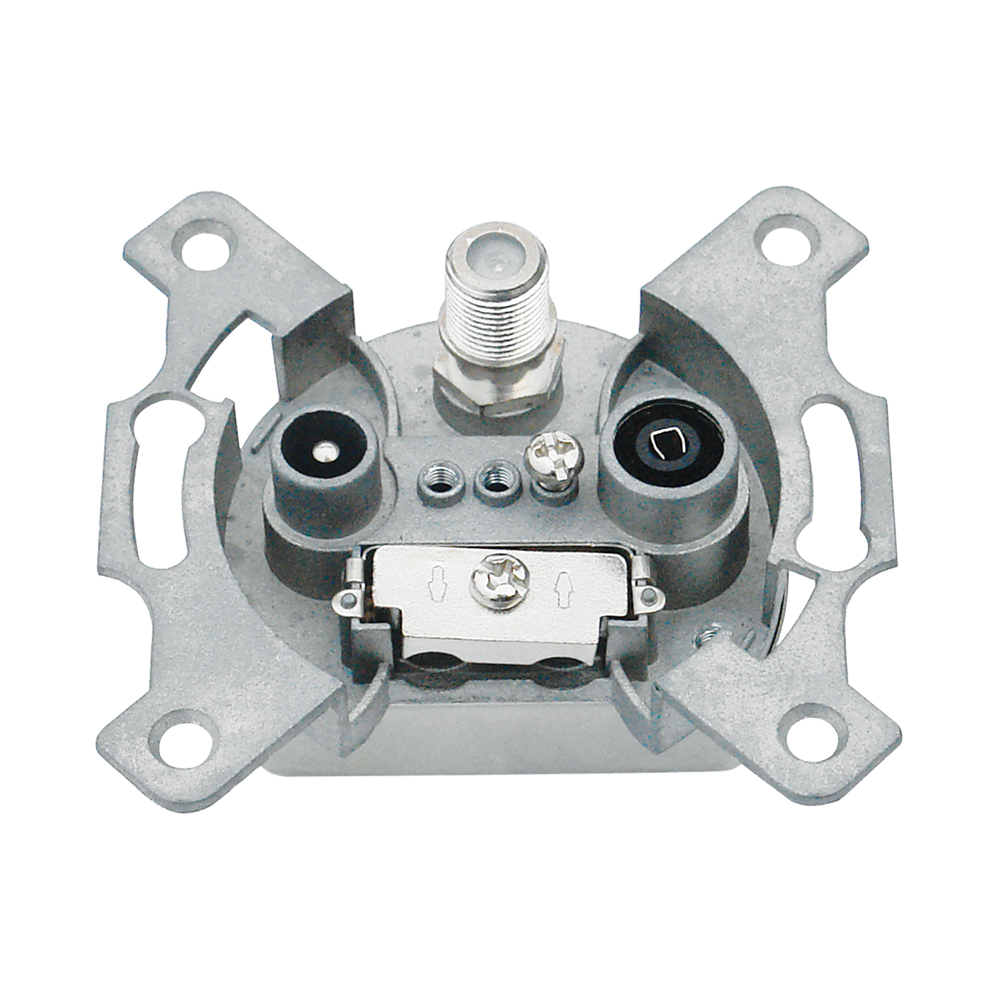

SPACE TV, FM & SAT 2×2 WALL OUTLET SOCKET 1dB (5-2400MHz) SAT-TV-FM • End Wall Outlet Socket 5-2400Mhz SWO-0: • Zinc die cast housing. • All ports connector, 75O • End Wall Outlet Socket : 1 dB • Supports DC pass, CATV, SMATV, UNI CABLE • Connector: TV: IEC 169-2(m) / R : IEC 169-2(f) / SAT: IEC 169-2(f) • Digital back channel Frame: • 81x81x23mm (white/ivory) Cover: • 3-hole cover plate / 81x81mm (white/ivory)
Additional Details
| Weight | 160.0 g |
|---|---|

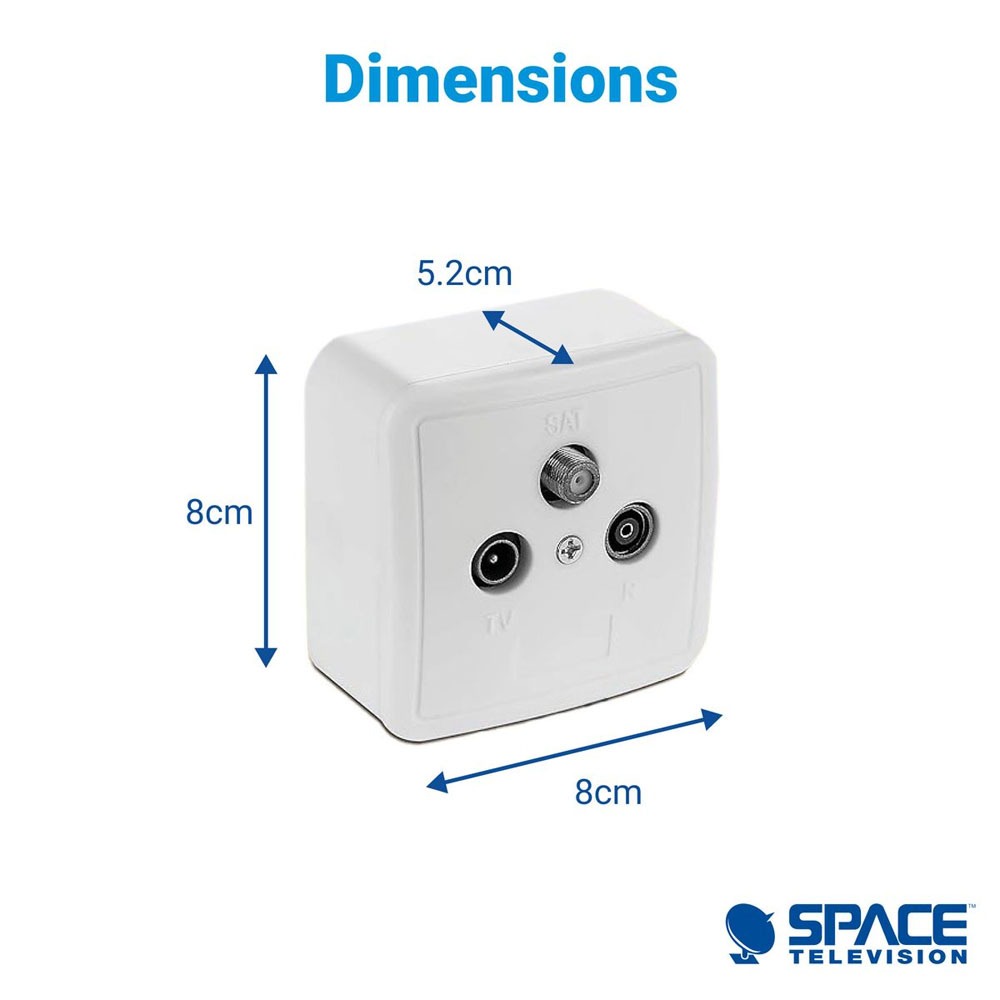

| Dimensions | 8.0 × 5.2 × 8.2 cm |
| Barcode | 6009532408531 |
| Brand | Space |
| Connector Type | SAT, TV, FM 1dB (5-2400Mhz) |
| Number of Outlets | 3 |
| Insertion Loss (dB) IN-TV | 5-68 MHz (QC Limit ≤1.5) 150-800 MHz (QC Limit ≤1.5) 800-860 MHz (QC Limit ≤2.5) |
| Insertion Loss (dB) IN-R | 88-108 MHz (QC Limit ≤1.5) |
| Insertion Loss (dB) IN-SAT | 950-2250 MHz (QC Limit ≤2.8) |
| Gender | 2x Female 1x Male Socket |
| Cable Type | Coaxial |
| Colour | White/Ivory |
| Mounting Type | Wall Mount |
| Frame | 81x81x23mm |
| Cover | 81x81mm |
| SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. |
