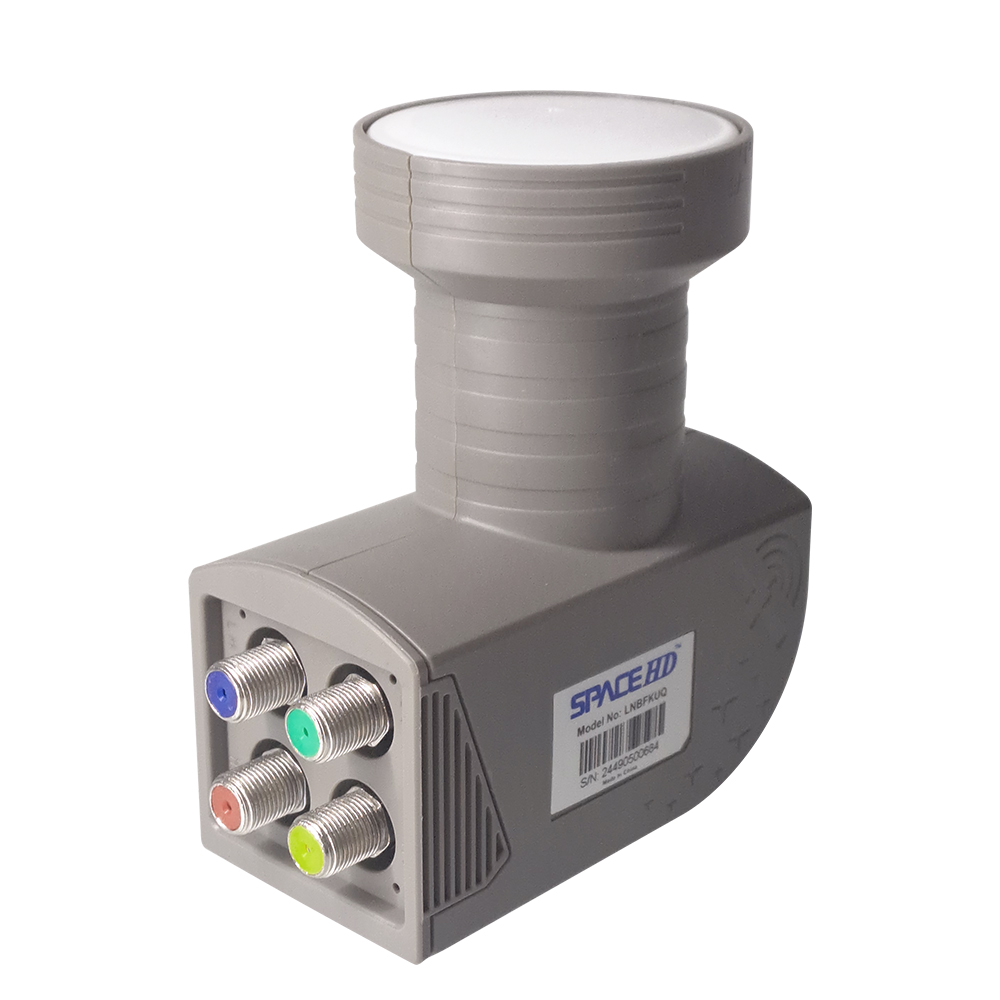

SpaceHD Universal Quattro LNB KU Band 9,75-10,6MHz – LNBFKUQ

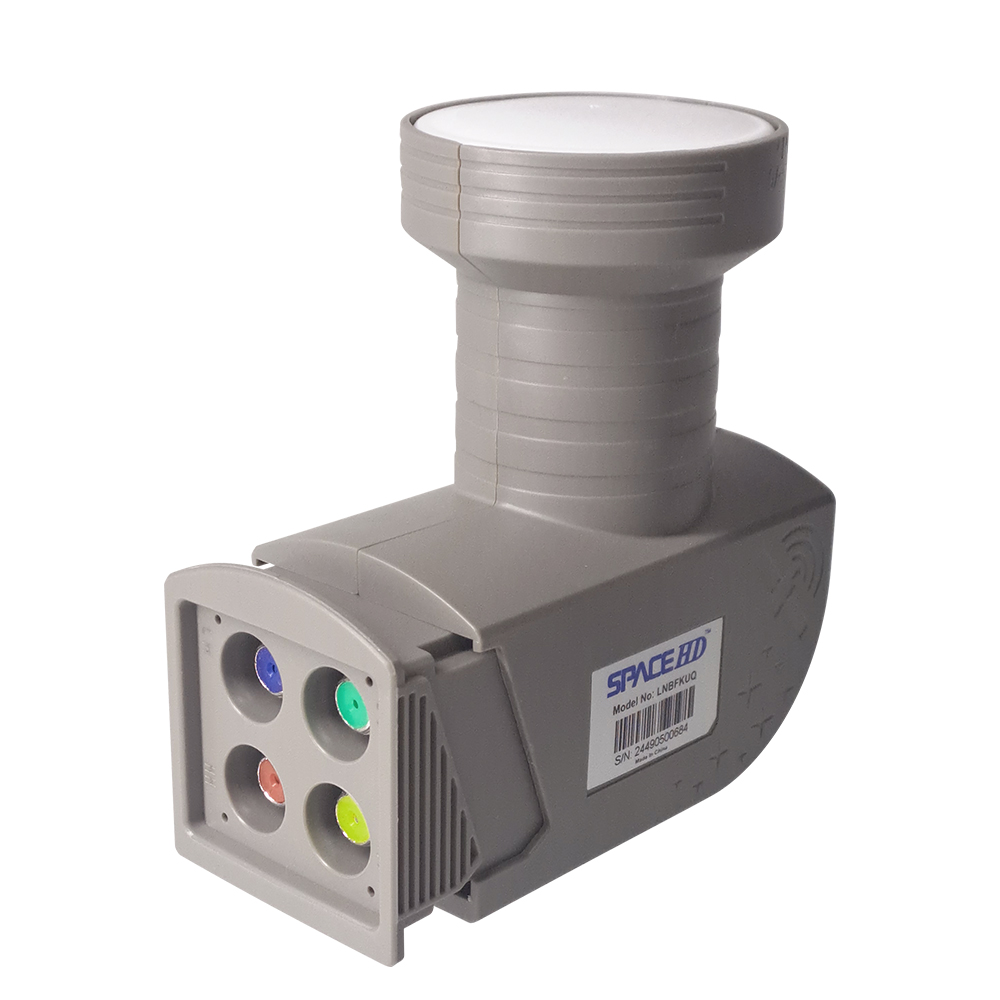

SpaceHD Universal Quattro LNB KU Band 9,75-10,6MHz – LNBFKUQ - Image 2

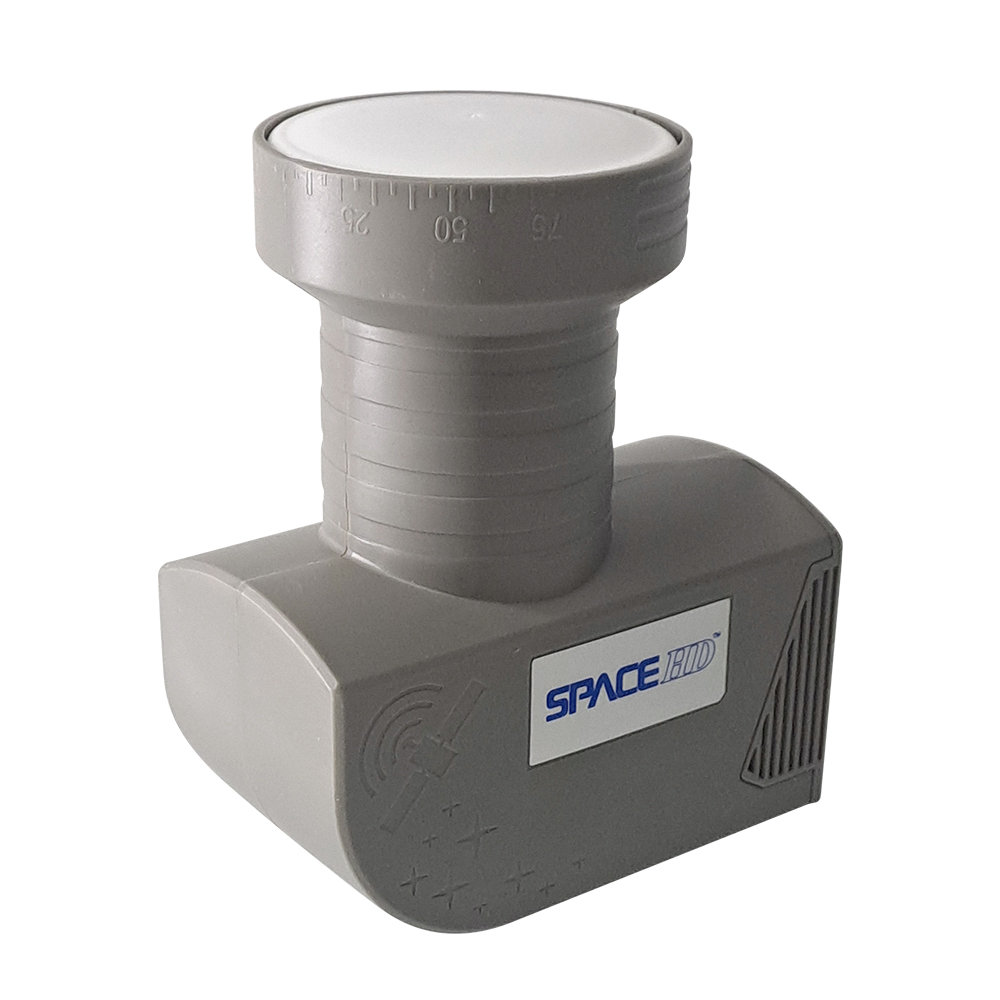

SpaceHD Universal Quattro LNB KU Band 9,75-10,6MHz – LNBFKUQ - Image 3
SpaceHD Universal Quattro LNB KU Band 9,75-10,6MHz – LNBFKUQ - Image 4
SpaceHD Universal Quattro LNB KU Band 9,75-10,6MHz – LNBFKUQ - Image 5
, ,

SpaceHD Universal Quattro LNB KU Band 9,75-10,6MHz – LNBFKUQ

Availability:

In stock

SpaceHD LNBFKUQ Quatro LNB 4 Outputs with Separate Polarity (HV / HV) – LTE Stop

Product code: LNBFKUQ

R419.00 R506.00

In stock

SpaceHD LNBFKUQ Quatro LNB 4 Outputs with Separate Polarity (HV / HV) – LTE Stop

• Long Neck for multi satellite reception installations
• Low Phase Noise, DVB-S2 (HDTV) compliant
• Low Noise figure
• Low power consumption
• High Cross-pole performance
• High Frequency stability

SKU: LNBFKUQ Categories: , , Tags: ,

Additional Details

SKU: LNBFKUQ | Tags: , | Categories: , ,

Weight 0.0 g
Dimensions 0.0 × 0.0 × 0.0 cm
Brand

SPACE
Barcode

6009532409750

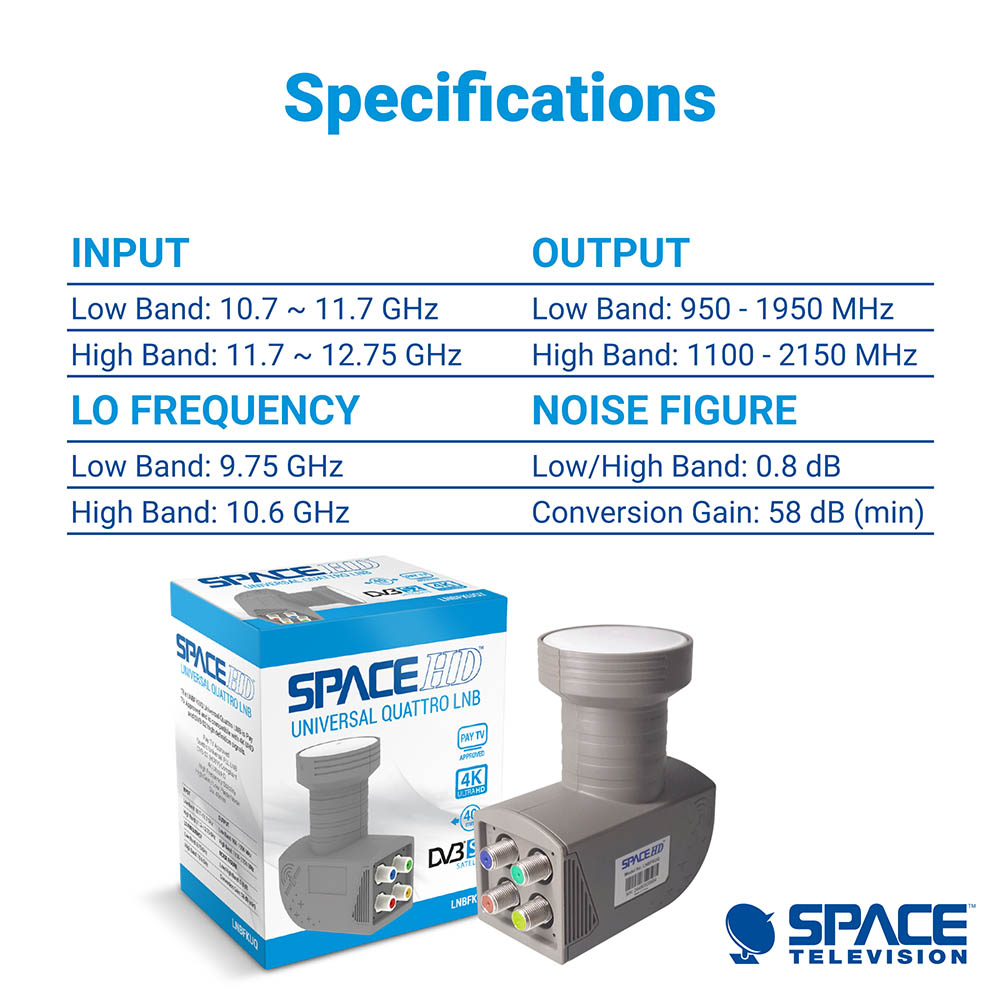

Input Frequency Range
Low Band 10.7GHz-11.7GHz
High Band 11.7GHz-12.75GHz
Output Frequency
Low Band 950MHz-1950MHz
High Band 1100MHz-2150MHz
Noise Figure @25℃ 0.8dB (Try.) 1.0dB (Max)
Conversing Gain 60dB
-40℃∽+70℃ 58dB (Min)
Gain Flatness ±0.5dB/26MHz (Try.)
Gain Variation 5dB over each IF band (Try.)
Image Rejection 40dB (Min)
Isolation 20dB (Max)
Output Port Type 75 0hm F-Female
Output VSWR 2.0:1 (Max)
L.O. Frequency
Low Band 9.75GHz
High Band 10.6GHz
L.O. Stability
±500KHz (at25℃) (Max)
±1.0MHz (-40℃∽+70℃) (Max)
L.O. Phase Noise
-60dBc @ 1KHz Offset(Max)
-80dBc @ 10KHz Offset(Max)
-85dBc @ 100KHz Offset(Max)
DC Current Consumption 130mA (150mA Max)
Polarization Switching Voltage V:11.5-14.0 Vdc
H:16.0-19.0 Vdc
Band Switching Low: 0Hz
High:22±4KHZ
Working Temperature -30°C ~ +60°C
Humidity 0 ~ 100%
