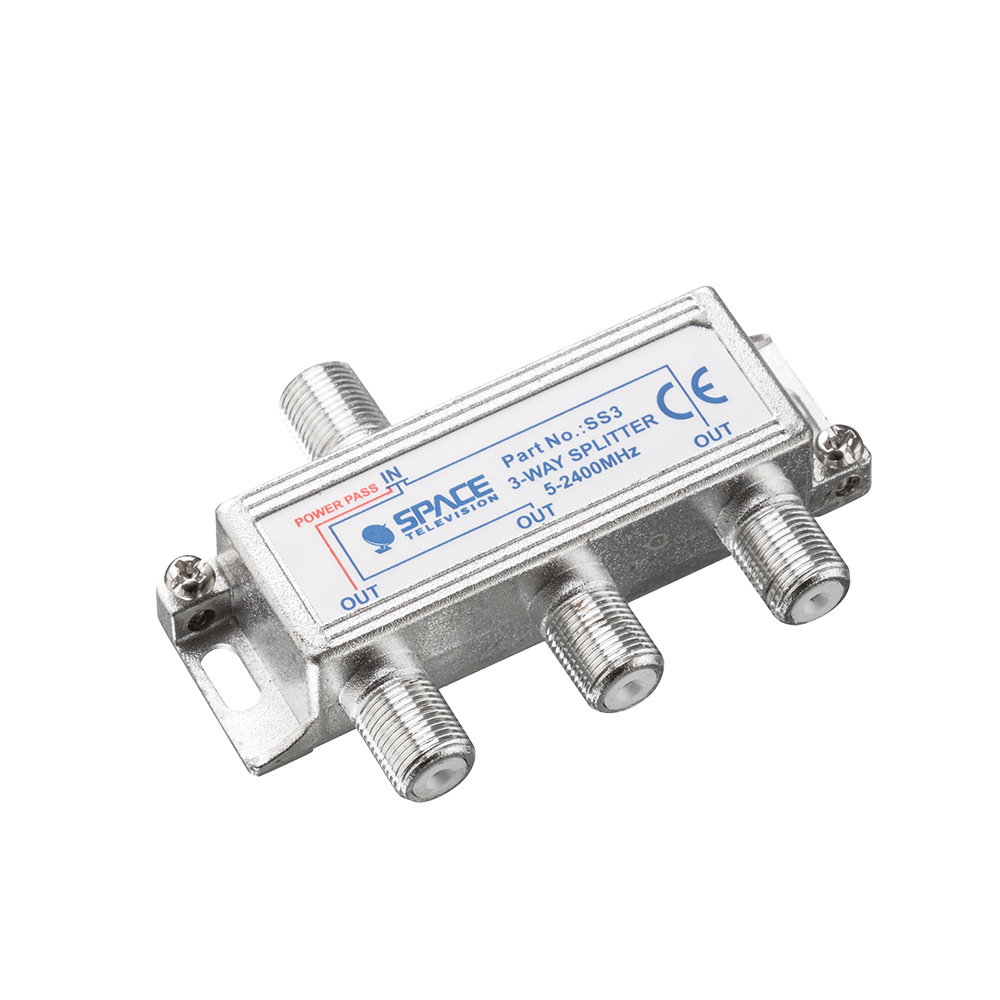

SS3 - 3 Way Splitter 5-2400 MHz

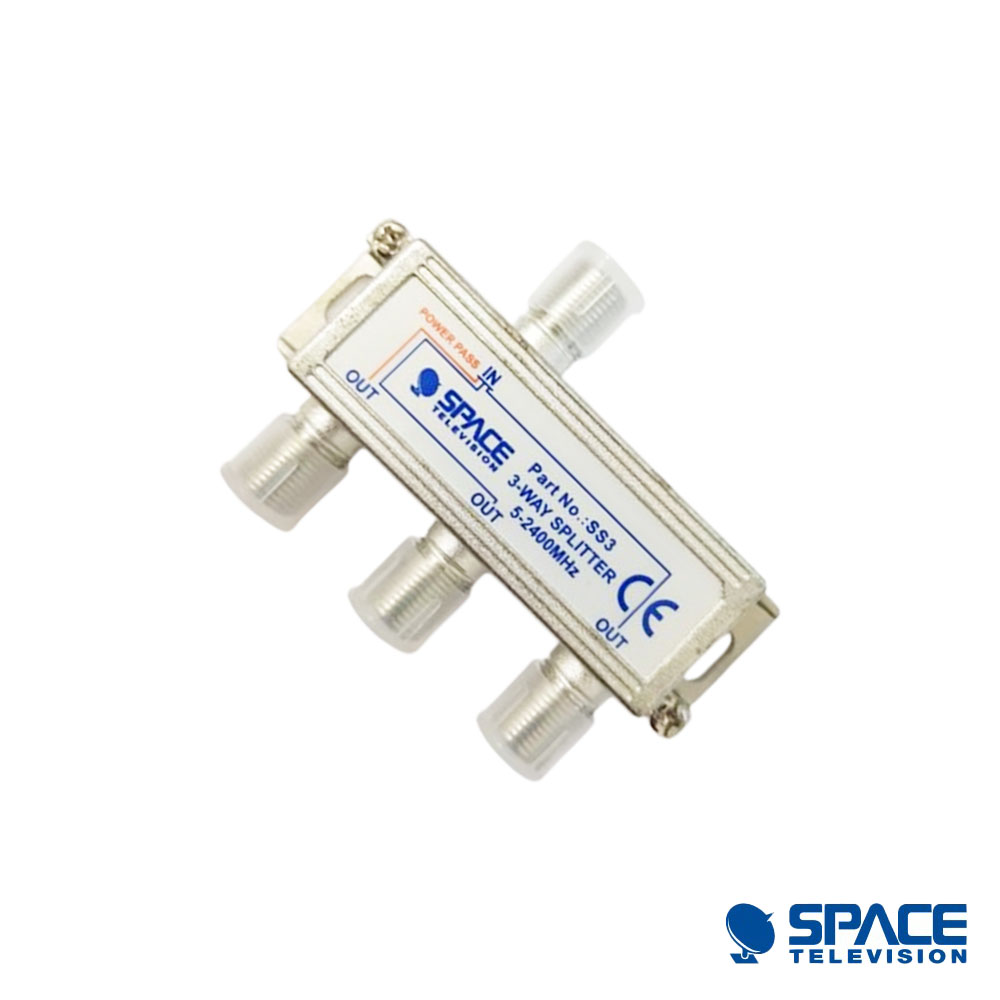

SS3 - 3 Way Splitter 5-2400 MHz - Image 2

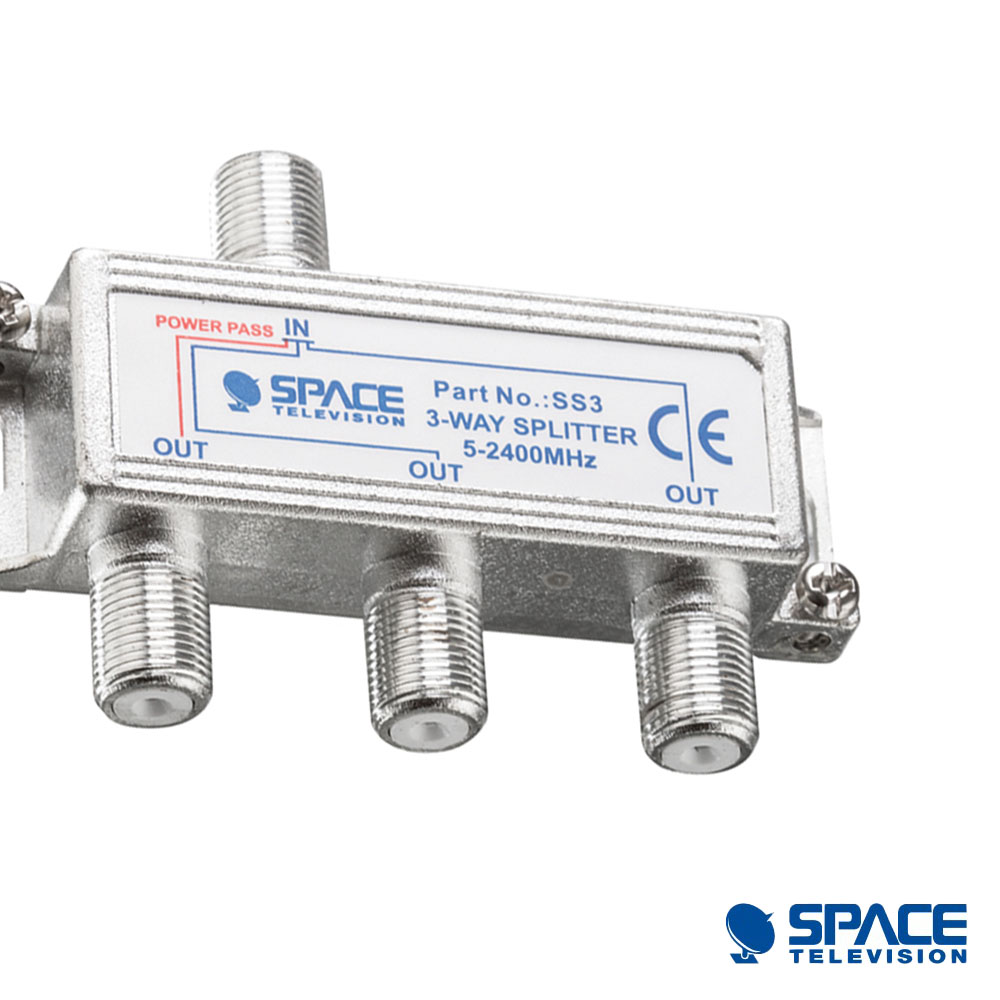

SS3 - 3 Way Splitter 5-2400 MHz - Image 3

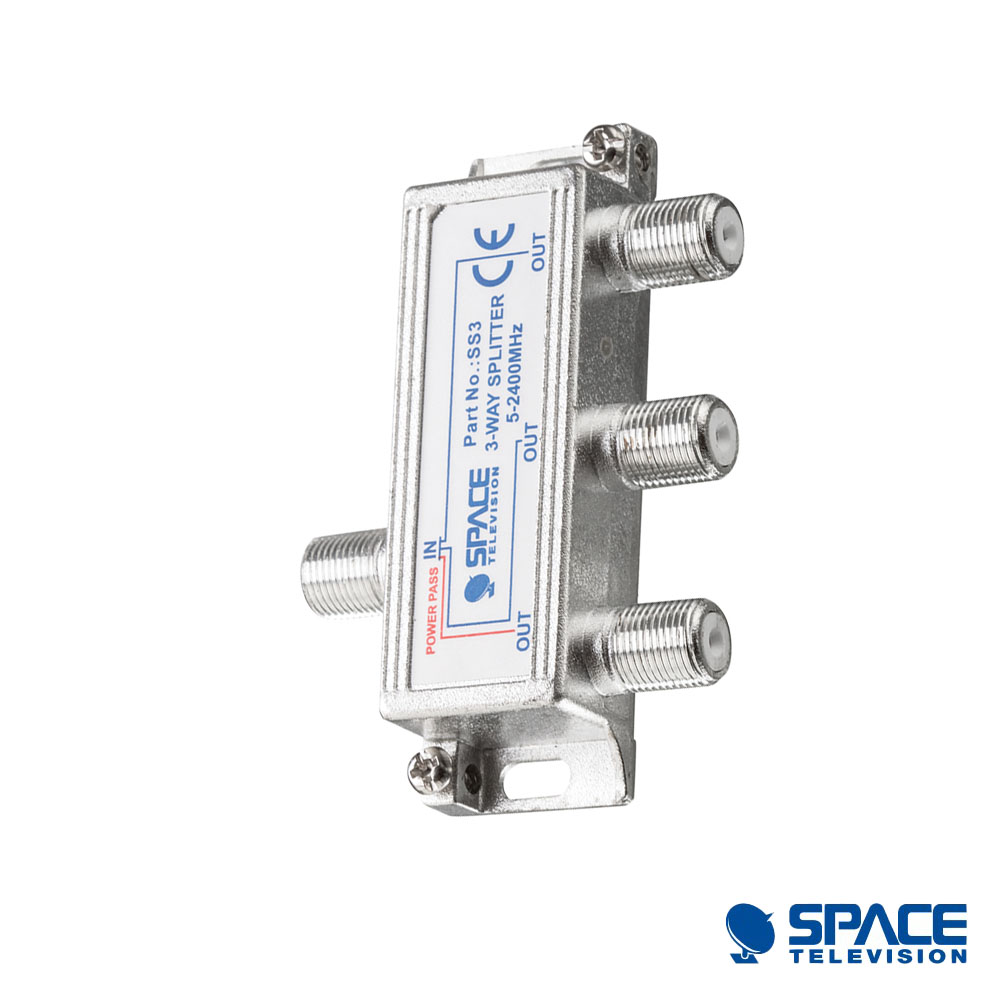

SS3 - 3 Way Splitter 5-2400 MHz - Image 4

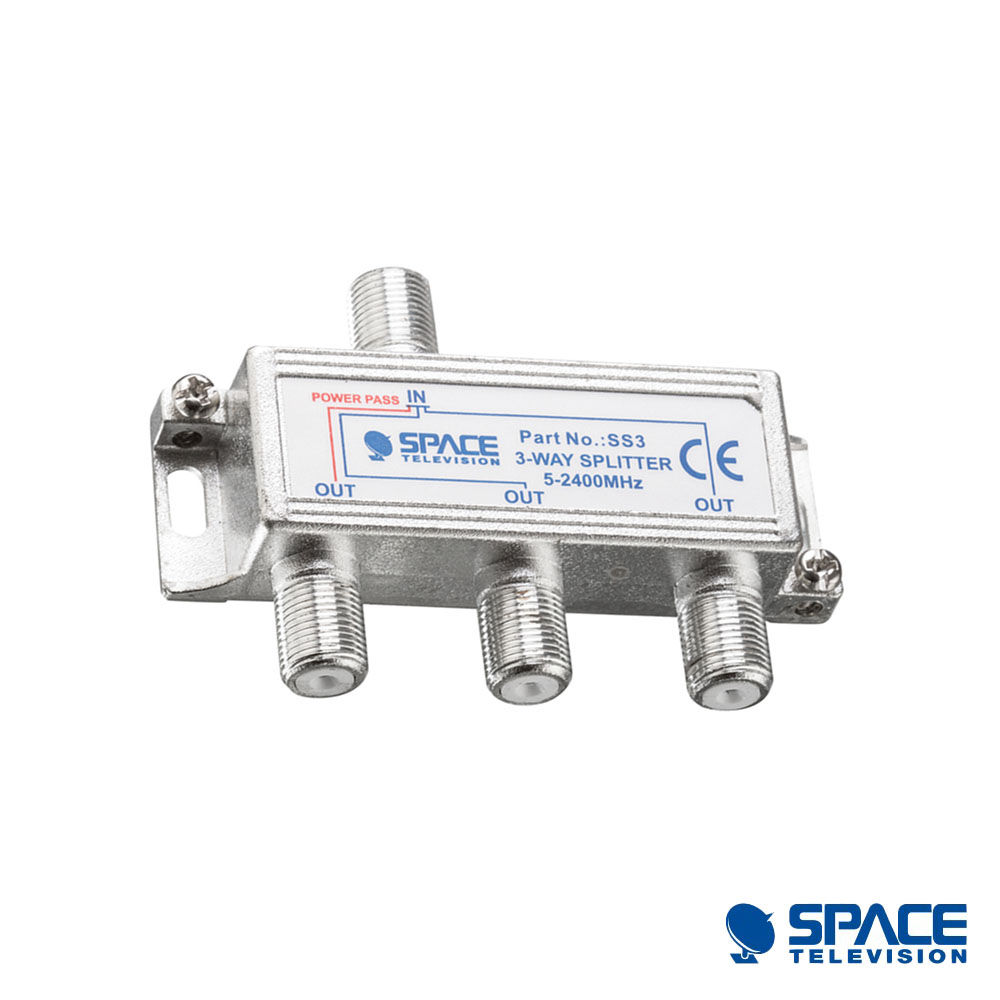

SS3 - 3 Way Splitter 5-2400 MHz - Image 5
, ,

SS3 – 3 Way Splitter 5-2400 MHz

Availability:

In stock

SS3 – 3 way coaxial splitter ideal for SAT-IF and MATV distribution networks.

• Frequency range 5-2400 MHz
• DC pass via diodes from all outputs
• High shielding against ingress noise like radiated by LTE mobile
• High quality die-cast housing tin (Sn) coated with solder shield bottom plate
• Grounding clamp terminals

Product code: SS3

R99.00 R116.00

In stock

SS3 – 3 way coaxial splitter ideal for SAT-IF and MATV distribution networks.

• Frequency range 5-2400 MHz
• DC pass via diodes from all outputs
• High shielding against ingress noise like radiated by LTE mobile
• High quality die-cast housing tin (Sn) coated with solder shield bottom plate
• Grounding clamp terminals

SKU: SS3 Categories: , , Tags: ,

Additional Details

SKU: SS3 | Tags: , | Categories: , ,

Weight 60.0 g
Dimensions 8.0 × 7.0 × 1.0 cm
Brand

Space
Barcode

6009532407244
FREQUENCY
Frequency range 5…2400 MHz
OPERATIONAL
Temperature – operating -30…+60 °C
LOSS
Insertion loss (in-out) 5-40 Mhz 7.5 dB
Insertion loss (in-out) 40-1000 Mhz 7.5 dB
Insertion loss (in-out) 1000-1750 MHz 8.8 dB
Insertion loss (in-out) 2050-2400 Mhz 11 dB
ISOLATION
Isolation (tap-tap) 5-40 MHz 20 dB
Isolation (tap-tap) 40-1000 MHz 21 dB
Isolation (tap-tap) 1000-1750 MHz 21 dB
Isolation (tap-tap) 2050-2400 MHz 20 dB
RETURN LOSS
Return loss (in-out) 5-40 MHz 8.0 dB
Return loss (in-out) 40-1000 MHz 11.0 dB
Return loss (in-out) 1000-1750 MHz 11.0 dB
Return loss (in-out) 2050-2400 MHz 11.0 dB
CONNECTORS
Number of inputs 1
Number of outputs 3
ELECTRICAL
Impedance 75 Ω
SHIELDING
Shielding effeciency VHF/UHF >85 dB
