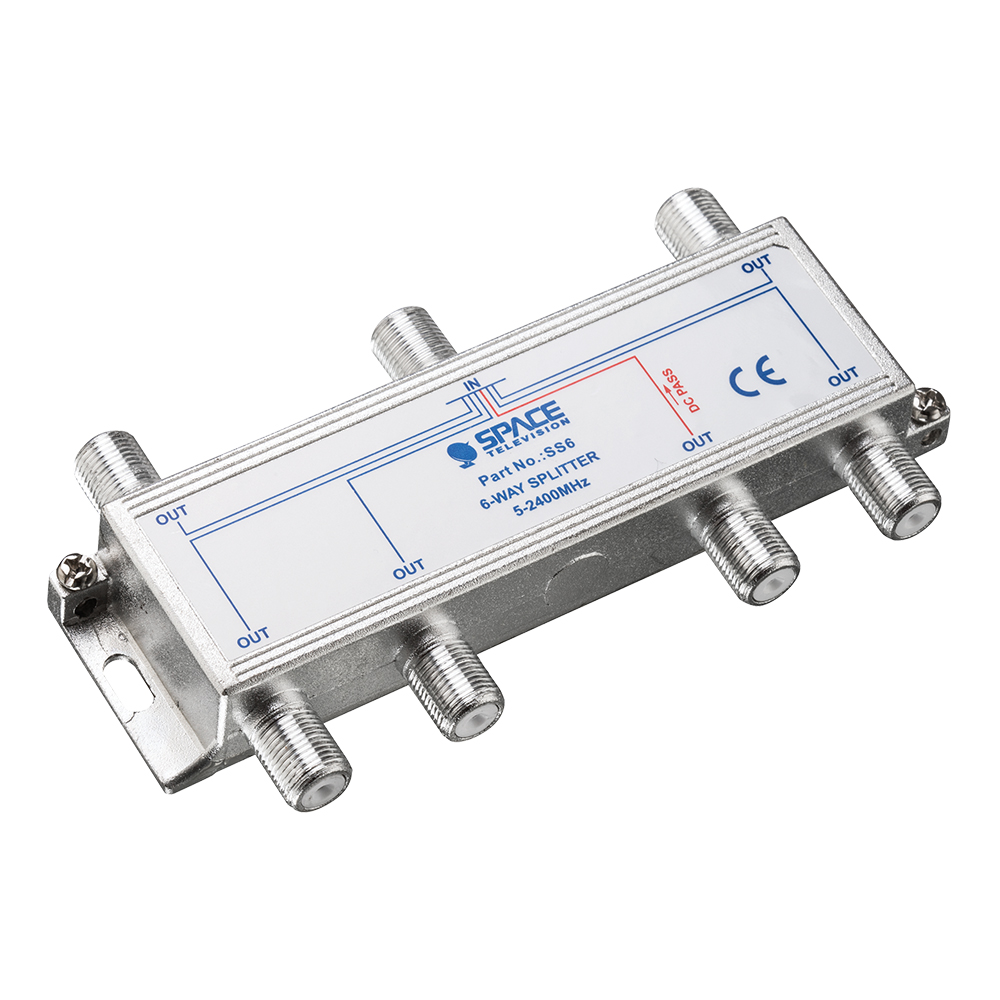

SS6 – 6 Way Splitter DC one Leg 5-2400MHz
, ,

SS6 – 6 Way Splitter DC one Leg 5-2400MHz

Availability:

In stock

SS6 – 6 way coaxial splitter ideal for SAT-IF and MATV distribution networks.

• Frequency range 5-2400 MHz
• DC pass via diodes from all outputs
• High shielding against ingress noise like radiated by LTE mobile
• High quality die-cast housing tin (Sn) coated with solder shield bottom plate
• Grounding clamp terminals

Product code: SS6

R209.00 R272.00

In stock

SS6 – 6 way coaxial splitter ideal for SAT-IF and MATV distribution networks.

• Frequency range 5-2400 MHz
• DC pass via diodes from all outputs
• High shielding against ingress noise like radiated by LTE mobile
• High quality die-cast housing tin (Sn) coated with solder shield bottom plate
• Grounding clamp terminals

SKU: SS6 Categories: , , Tags: ,

Additional Details

SKU: SS6 | Tags: , | Categories: , ,

Weight 700.0 g
Dimensions 12.0 × 6.0 × 2.0 cm
Brand

Space
Barcode

6009532407268
FREQUENCY
Frequency range 5…2400 MHz
OPERATIONAL
Temperature – operating -30…+60 °C
LOSS
Insertion loss (in-out) 5-40 Mhz 11.5 dB
Insertion loss (in-out) 40-1000 Mhz 11.8 dB
Insertion loss (in-out) 1000-1750 MHz 16.5 dB
Insertion loss (in-out) 2050-2400 Mhz 16.5 dB
ISOLATION
Isolation (tap-tap) 5-40 MHz 22 dB
Isolation (tap-tap) 40-1000 MHz 22 dB
Isolation (tap-tap) 1000-1750 MHz 21 dB
Isolation (tap-tap) 2050-2400 Mhz 21 dB
RETURN LOSS
Return loss (in-out) 5-40 MHz9 9.0 dB
Return loss (in-out) 40-1000 MHz 11.5 dB
Return loss (in-out) 1000-1750 MHz 12.0 dB
Return loss (in-out) 2050-2400 MHz 11.0 dB
CONNECTORS
Number of inputs 1
Number of outputs 6
ELECTRICAL
Impedance 75 Ω
SHIELDING
Shielding effeciency VHF/UHF >85 dB
