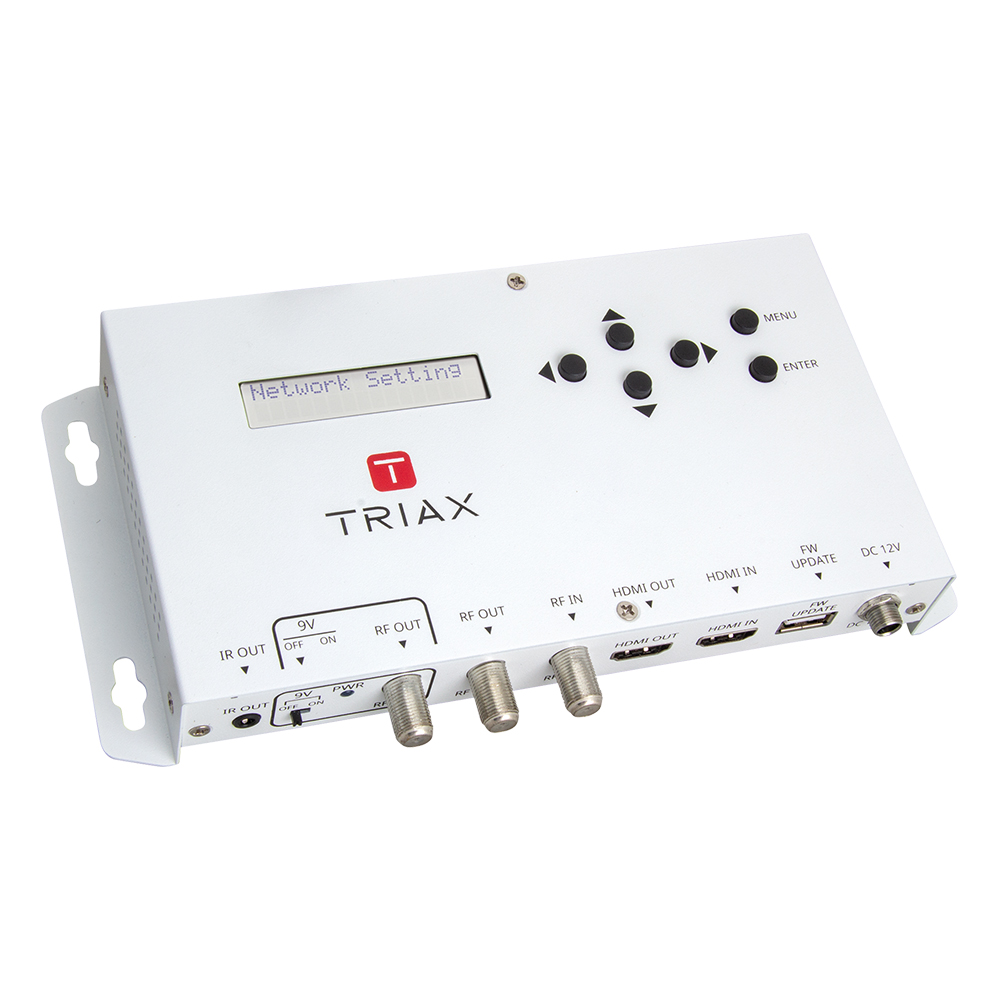

Triax HDMI to DVB-T Modulator
Only 8 left in stock
The Triax HDMI to DVB-T Modulator is a professional signal distribution solution that converts an HDMI source into a DVB-T digital television channel for distribution over an existing coaxial network. Ideal for hospitality venues, residential estates, retail stores, educational facilities, and commercial installations, the modulator allows content from devices such as satellite decoders, Blu-ray players, media players, and CCTV systems to be viewed on multiple televisions through standard DVB-T tuning. Featuring HDMI loop-through, RF signal combining, adjustable output levels, and remote IR control capabilities, it provides a flexible and cost-effective digital TV distribution solution.
Product code: MOD-HDMI-TRIAX
R5,999.00 R7,249.00
Only 8 left in stock
Features
- Converts HDMI input to DVB-T digital TV output
- HDMI loop-through output for local TV viewing
- Combines existing RF signals with modulated DVB-T channel
- Dual RF outputs for flexible signal distribution
- Front-panel LCD display for easy configuration
- Simple setup via front-panel controls
- Adjustable RF output level control in 1dB increments

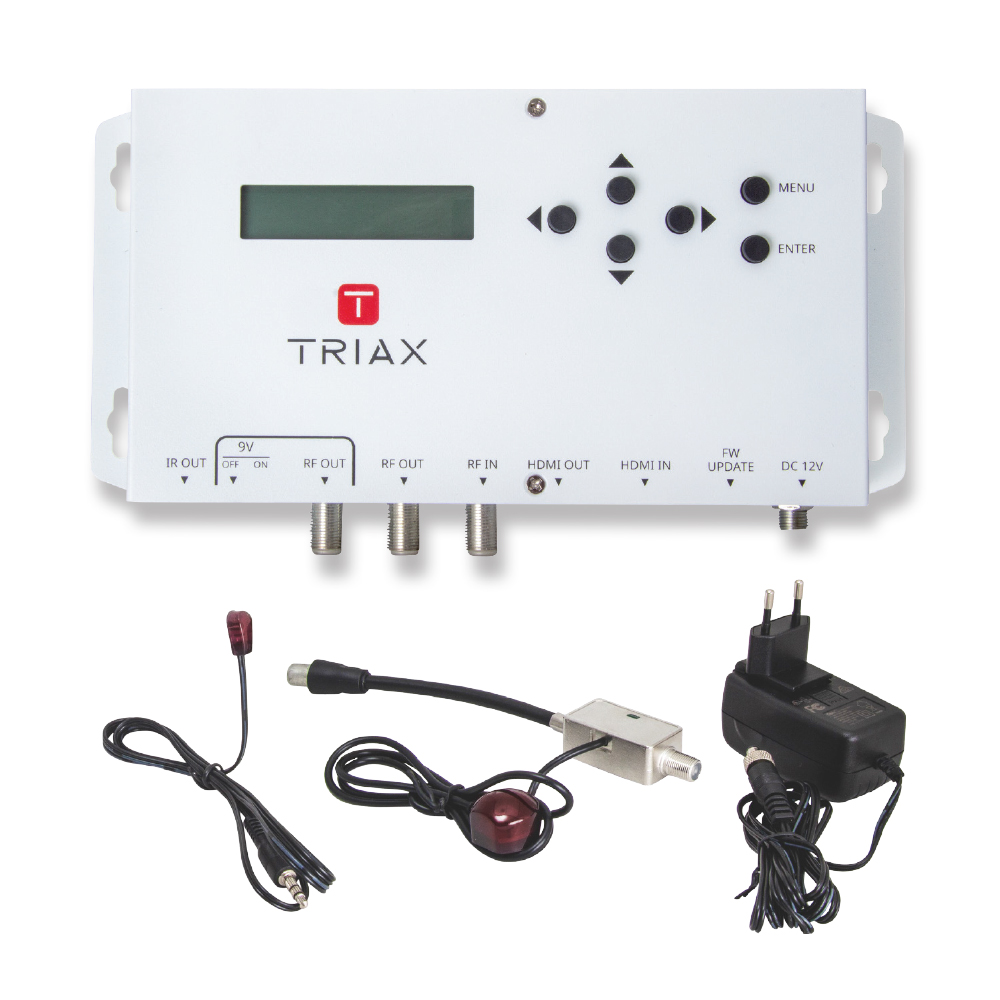

- Supports remote control extension via IR emitter
- Compact wall-mountable design
- Ideal for distributing a single HDMI source to multiple TVs
Specifications
- Product Type: HDMI to DVB-T Modulator
- HDMI Input: 1 x HDMI
- HDMI Loop Output: 1 x HDMI
- RF Input: 1 x RF In
- RF Outputs: 2 x RF Out
- Output Format: DVB-T Digital Television
- RF Signal Combining: Yes
- Display: LCD Configuration Screen
- Control Interface: Front Panel Buttons
- IR Extension Support: Yes
- Power Supply: 12V DC
- Installation: Wall Mount or Surface Mount
Applications
- Hotels and Guest Houses
- Residential Estates
- Sports Bars and Restaurants
- Schools and Universities
- Retail Stores
- CCTV Distribution Systems
- Corporate Offices
- Multi-Room AV Distribution
Compatible Source Devices
- Satellite Set-Top Boxes
- DStv Decoders
- Blu-ray Players
- Media Players
- CCTV DVRs and NVRs
- Digital Signage Systems
- Gaming Consoles
Benefits
- Distributes HDMI content to multiple televisions over existing coaxial cabling
- Eliminates the need for separate HDMI cabling to each TV
- Preserves digital picture quality
- Integrates with existing RF distribution systems
- Easy installation and configuration
- Cost-effective multi-TV content distribution solution

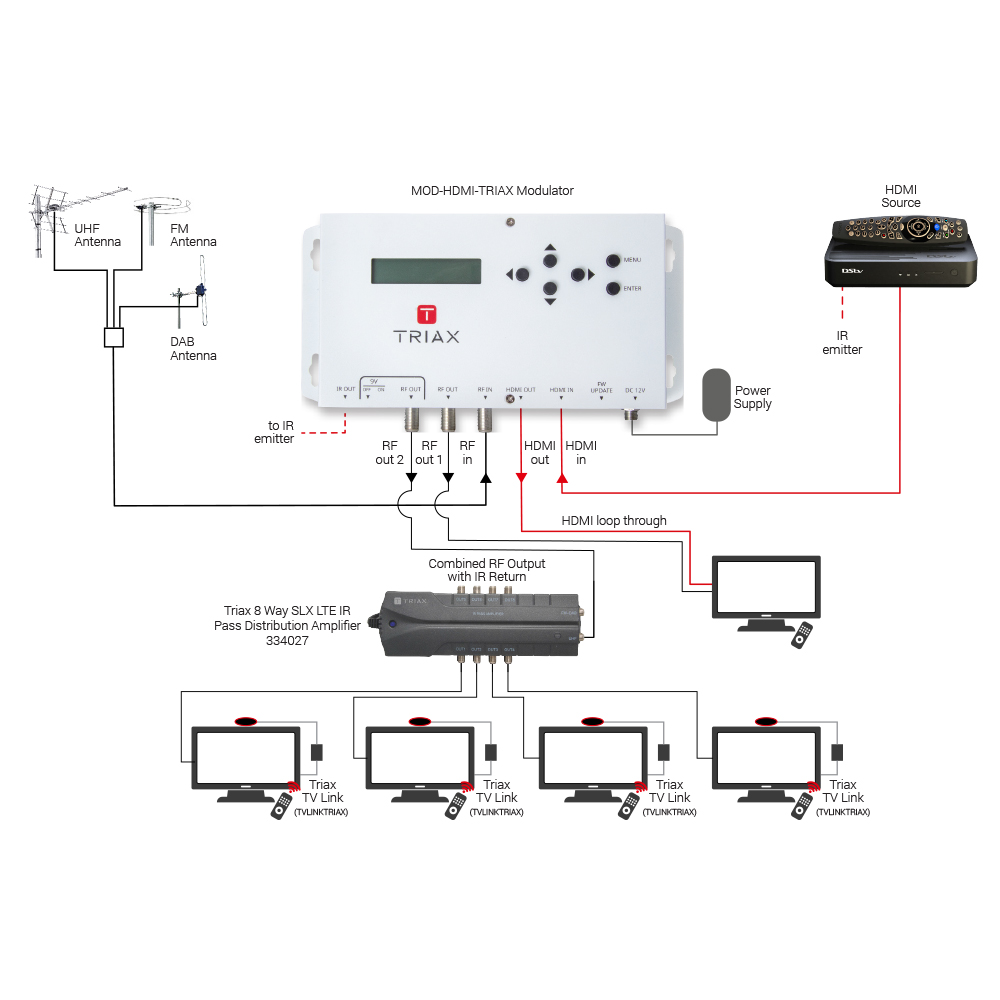

Ideal for centralised content distribution, allowing a single HDMI source to be viewed on multiple DVB-T compatible televisions throughout a building using existing coaxial infrastructure.
Additional Details
| Weight | 920.0 g |
|---|---|
| Dimensions | 25.0 × 20.0 × 6.0 cm |
| Brand | Triax |
| Barcode | 6009532408487 |
| SOURCE INPUT | |
| Input channel | 1 |
| Video | 1 x HDMI Type A |
| Video system | 480i/576i/720p/1080i/p |
| Audio | HDMI |
| RF OUTPUT | |
| Type | 1 multiplex DVB-T with a digital service |
| Frequency | 177…858 MHz |
| MER | 30dB Min. |
| Output level | 95dBμV (max) |
| RF Level adjustment | 1dB per step |
| Attenuation step | 0…30dB |
| COMPRESSION | |
| Video | H.264 baseline profile level 4.0 |
| Video resolution | 1080p 25/30 max |
| Video bit rate | 12 Mbps. Max |
| Audio | MPEG-2 / AAC |
| Audio bit rate | 192 Kbits/s |
| DVB insertion tables | SDT, NIT |
| Editable field | Service Name, Provider Name, Service ID, LCN, NIT Version, TS ID, Network name, Network ID, Original Network ID, Country |

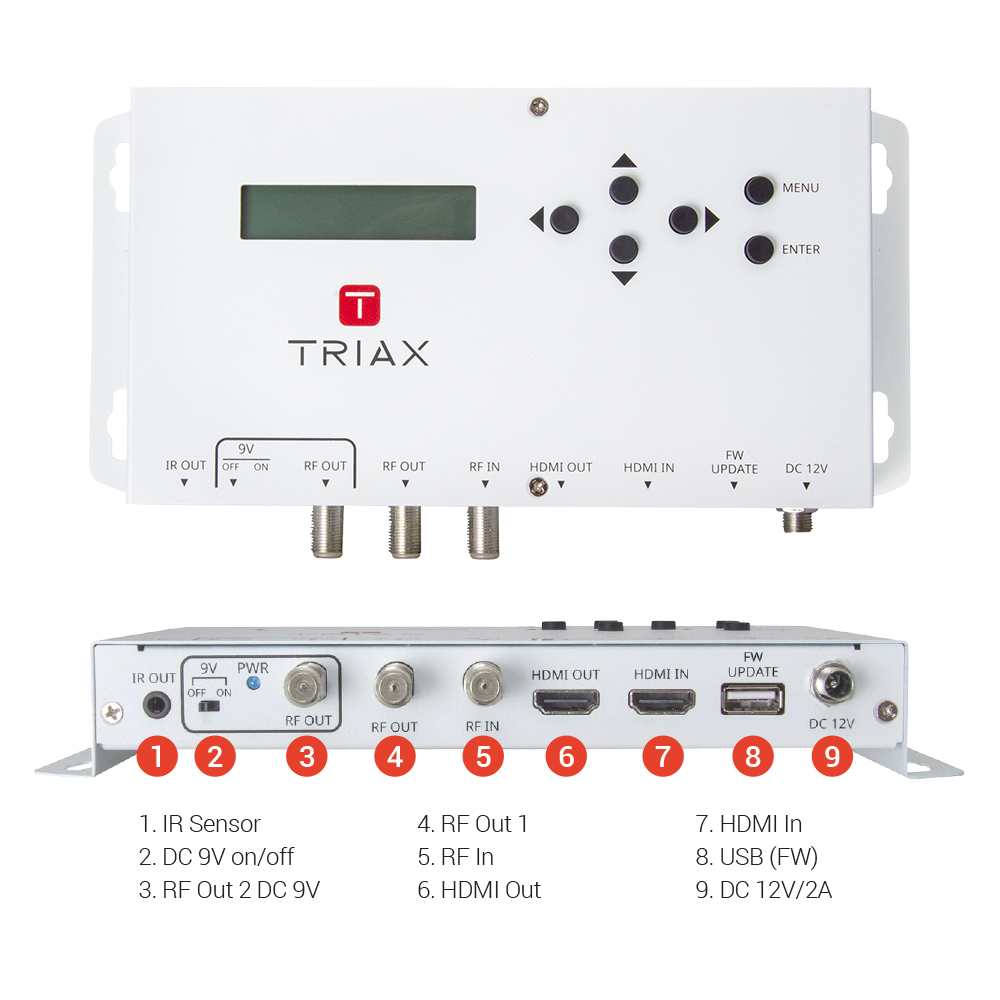

| CONNECTIONS | |
| HDMI IN | HDMI IN |
| HDMI OUT | HDMI pass through |
| RF output | 2 RF outputs (one providing accessory power supply 9 Volts DC for IR pass) |
| DC switch | Power supply 9 Volts DC for IR pass |
| RF INPUT | RF combiner (with LTE filter) |
| USB | Firmware upgrade |
| IR OUT | IR emitter output |
| GENERAL | |
| Modulation | Standard DVB-T (ETSI EN 300 744) Constellation : QPSK, 16QAM, 64QAM Guard interval : 1/4, 1/8, 1/16, 1/32 Code rate : 1/2, 2/3, 3/4, 5/6, 7/8 FFT Carrier Mode : 2K, 8K Bandwidth : 6MHz, 7MHz, 8MHz |
| Power supply | 12 VDC |
| Display | LCD panel, 2×16 characters |
| Dimensions | 220 x 106 x 32mm |
| Environmental for operating | Temperature: 5°C – 40°C Relative humidity: 80%@30°C |
