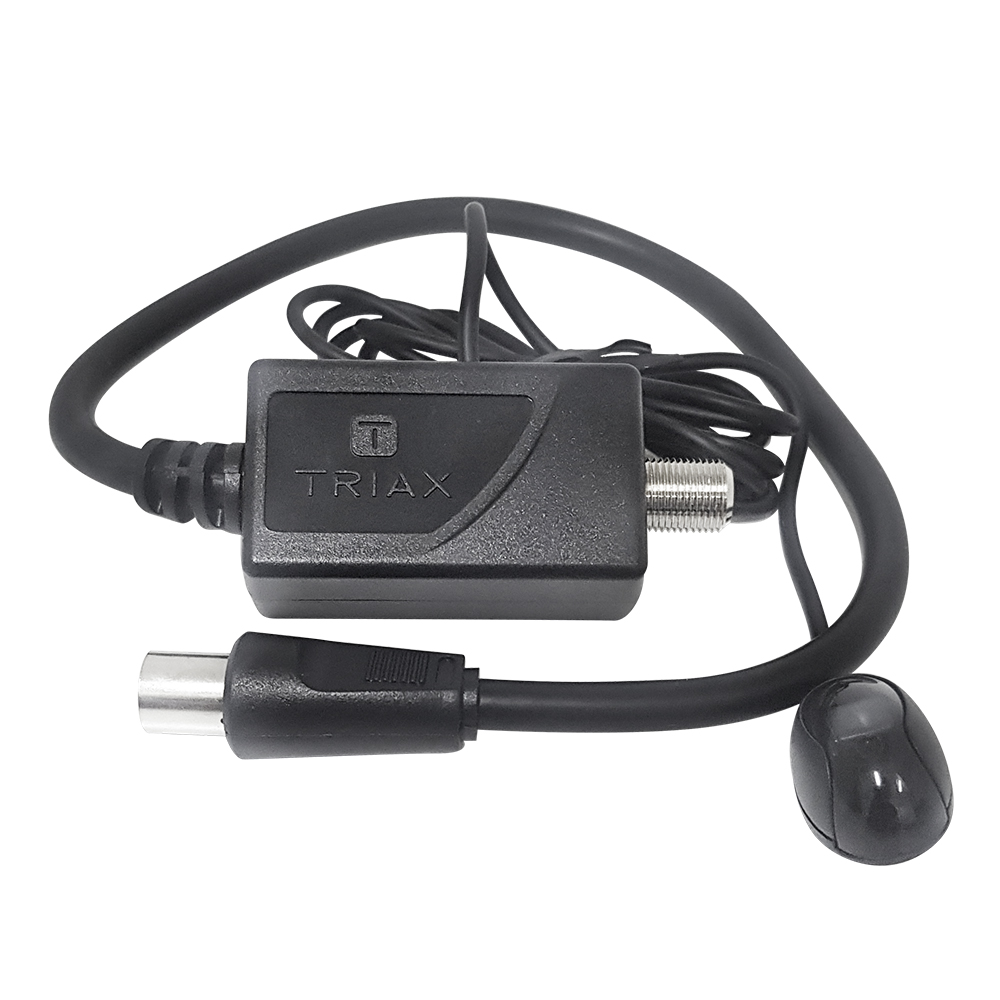

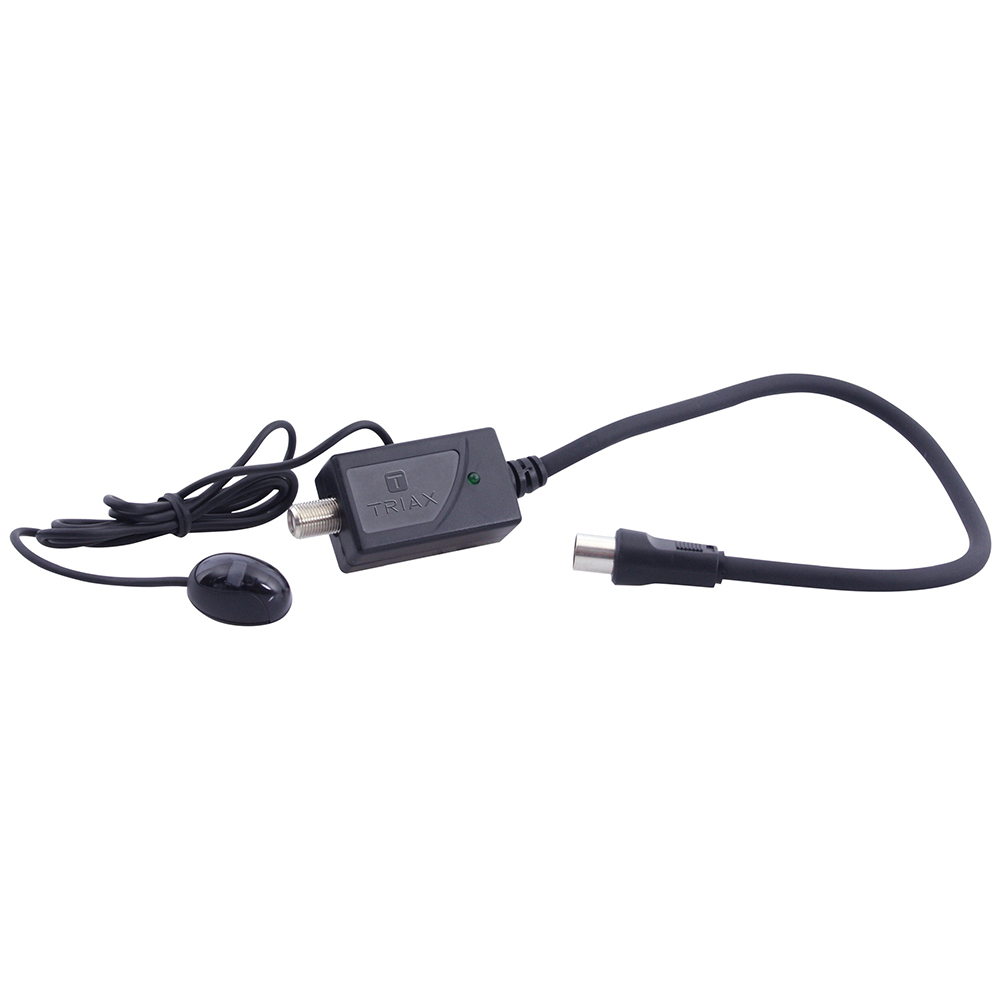

Triax TV Link IR for DStv

Availability:

In stock


Easy to install Triax TV Link allows control over a Set-top Box from another location via coaxial cable. Compact design for use with Plasma, LCD, LED TV’s with adhesive base for flexible installation. 9V DC Digital Link with 39.7Khz Signal Frequency and 7,2 MHz carrier Frequency.

Product code: TVLINKTRIAX

R189.00 R231.00

In stock

The Triax TV Link allows for the remote control of a DSTV decoder via coaxial cable

• 9V DC Digital Link with 39.7Khz Signal Frequency and 7,2 MHz carrier Frequency
• F-Connector
• Compact design, ideal for LED, LCD and Plasma TV’s
• Adhesive base for flexible installation
• Easy to install

Additional Details

SKU: TVLINKTRIAX | Tags: , | Categories: ,

Weight 80.0 g
Dimensions 11.0 × 8.0 × 4.0 cm
Brand

Triax

Barcode

6009532406223

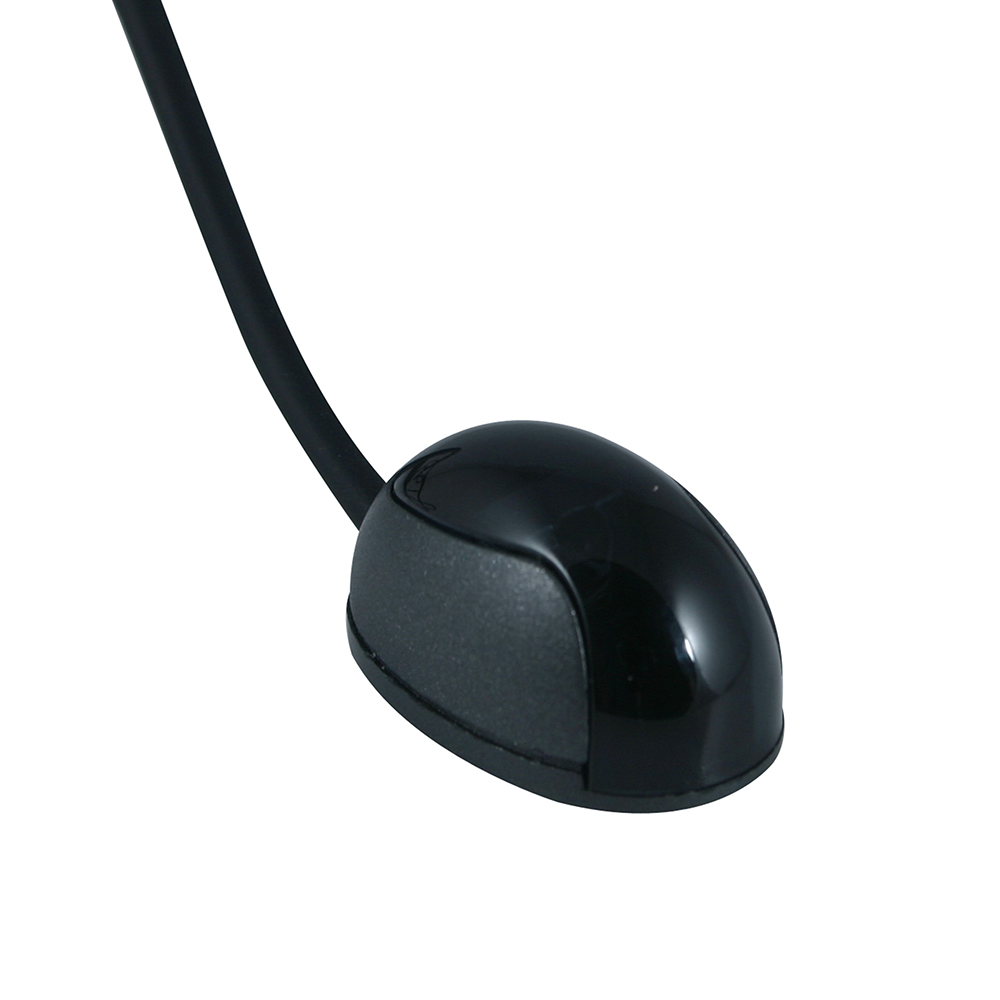

Infra Red Sensor Lead 1 m
Input frequency range 47-790 MHz
Output frequency range 47-790 MHz
LINE power DC voltage (max.) 9 VDC
Temperature – operating 0…40 °C
Connector Type F-female / IEC-male
Colour Black
Packing QTY 1
Product Height 100 mm
Product Width 80 mm
Product Depth 25 mm
Net Weight 0,065 kg
Total Weight 0,065 kg
Remarks Input Infra Red Signal Frequency – 37.9kHz Carrier Output Signal Frequency – On-Off Keyed 7MHz Carrier Line Power Requirements – 9VDC @ 10mA
