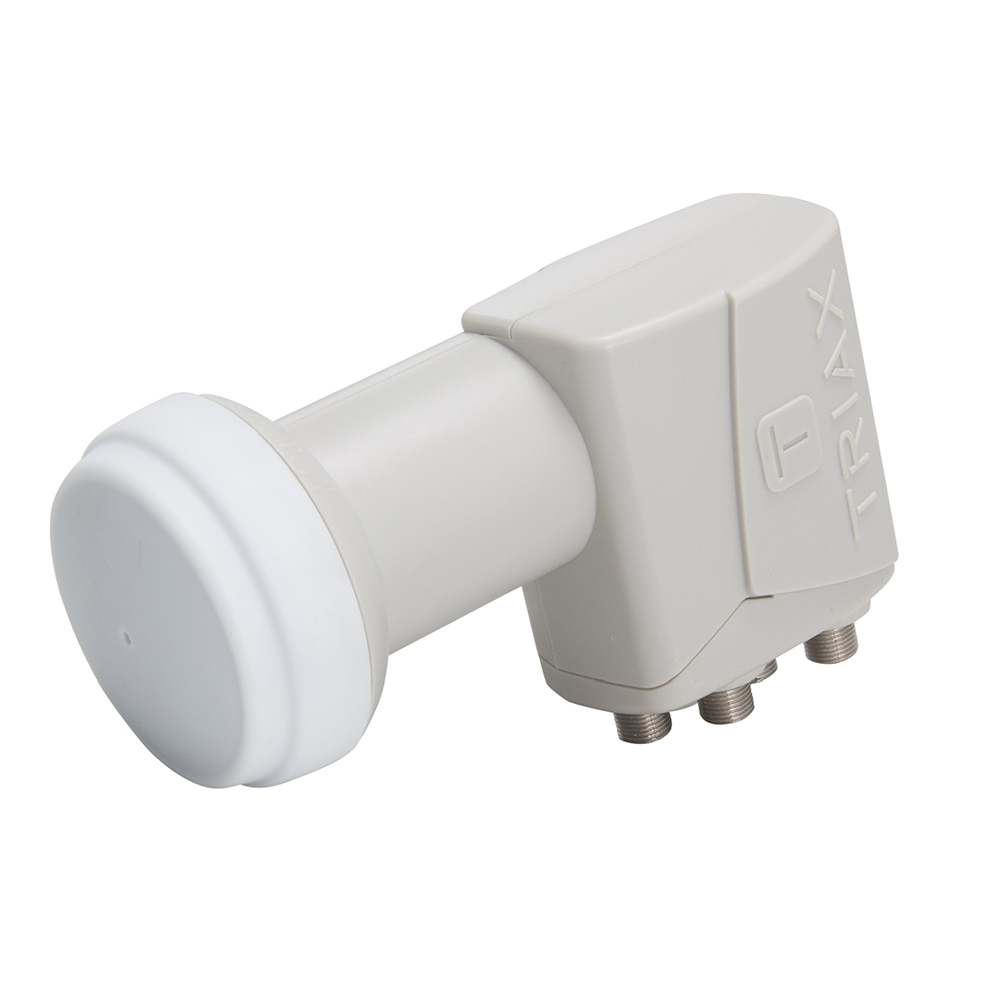

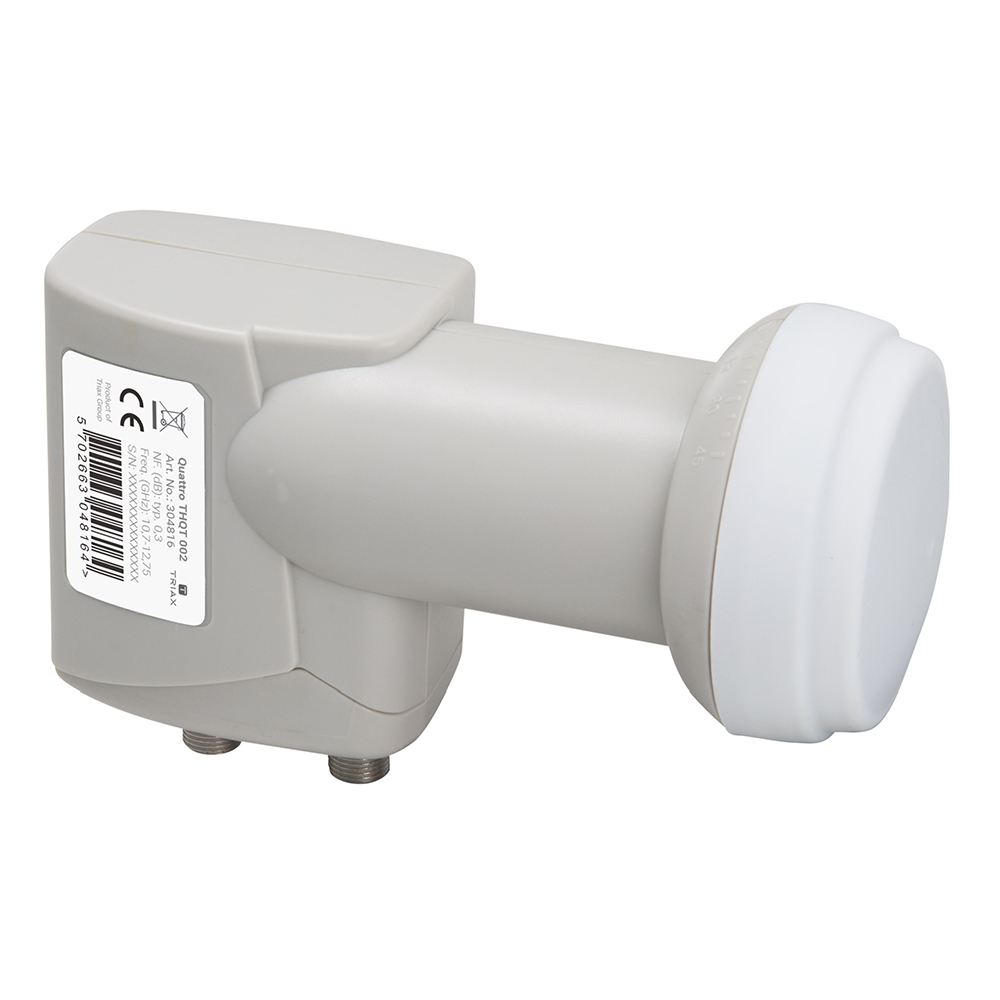

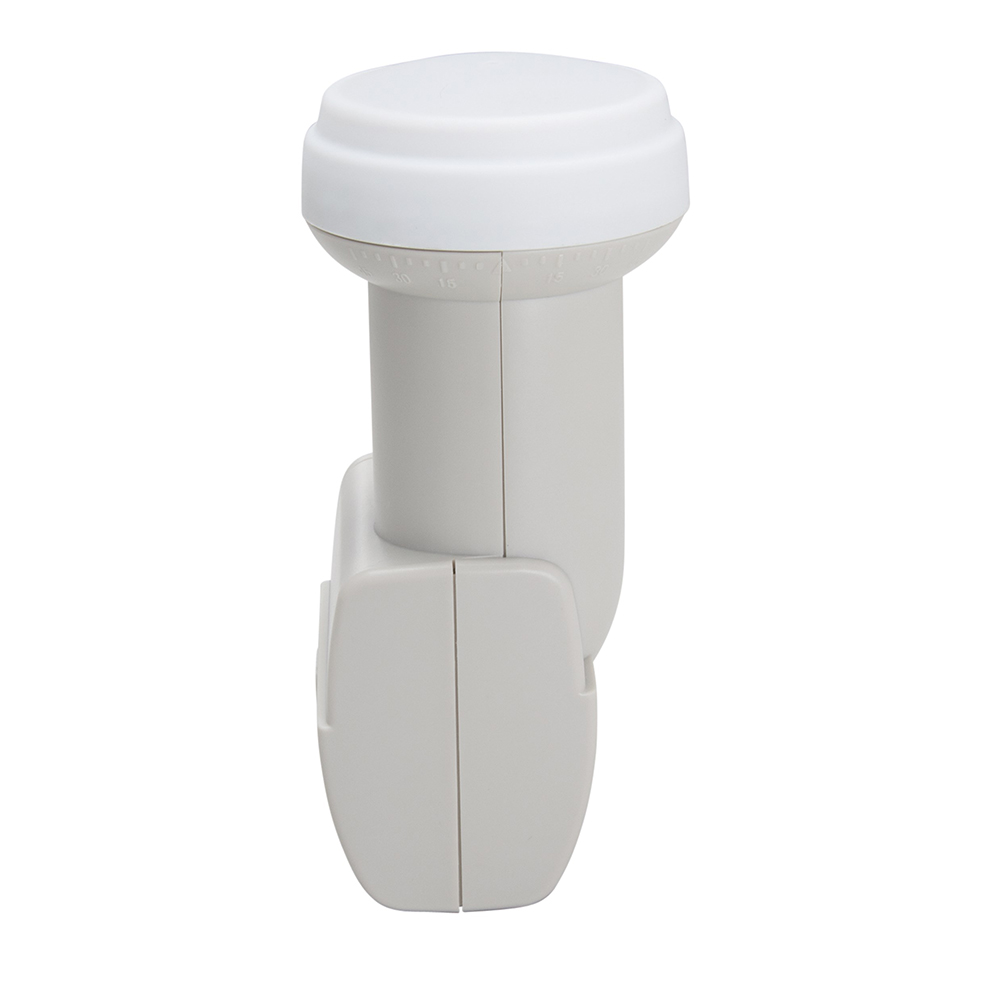

Triax Universal QUATTRO LNB High Gain (LNBFKUQ-TX)
Only 15 left in stock
• Great quality, low footprint
• Cutting edge RF technology
• Excellent Cross polar isolation
• Excellent low noise / low phase noise
• High output / low power consumption
• Weatherproof & qualified for harsh environments
Product code: LNBFKUQ-TX
R559.00 R680.00
Only 15 left in stock
Features:
• Great quality, low footprint
• Cutting edge RF technology
• Excellent Cross polar isolation
• Excellent low noise / low phase noise
• High output / low power consumption
• Weatherproof & qualified for harsh environments
Additional Details
| Weight | 0.24 g |
|---|---|
| Dimensions | 20.0 × 8.8 × 6.4 cm |
| Brand | TRIAX |
| Barcode | 6009532406827 |
| CHARACTERISTICS | |
| Phase noise @ room temperature – 1 kHz | – 60 dBc/Hz |
| Phase noise @ room temperature – 10 kHz | – 80 dBc/Hz |
| Phase noise @ room temperature – 100 kHz | – 100 dBc/Hz |
| Spurious level | – 60 (max.) dBm |
| Image rejection (min.) | 40 dB |
| Feedhorn diameter | Ø 40 mm |
| Frequency stability (-40 ~ +60 °C) | ± 1 MHz |
| LNB type | Quattro |
| FREQUENCY | |
| Input frequency low band | 10.7…11,7 GHz |
| Input frequency high band | 11,7 – 12,75 GHz |
| Output frequency low band | 950…2150 MHz |
| L.O. frequency low band | 9.75 GHz |
| L.O. frequency high band | 10.6 GHz |
| GAIN | |
| Gain flatness (across 26 MHz segm) | ± 1.0 (typ.) dB |
| Conversion gain (typ.) | 60…72 dB |
| Noise figure max. | typ 0.3 dB |
| ISOLATION | |
| Cross polarization isolation | 20 min dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Current consumption | 195 mA |
| Operating voltage vertical | 10.5…14.5 V/DC |
| Operating voltage horizontal | 15.5…21.0 V/DC |
| Temperature – operating | -30…60 °C |
| CONNECTORS | |
| Connector Type | F-female |
| MECHANICAL | |
| Reflector type | Offset |
| Max. depth incl. feedhorn | 133 mm |
| Product size (H x D x W) | 136 x 49 x 83 mm |
| Weight | 0.260 kg |
