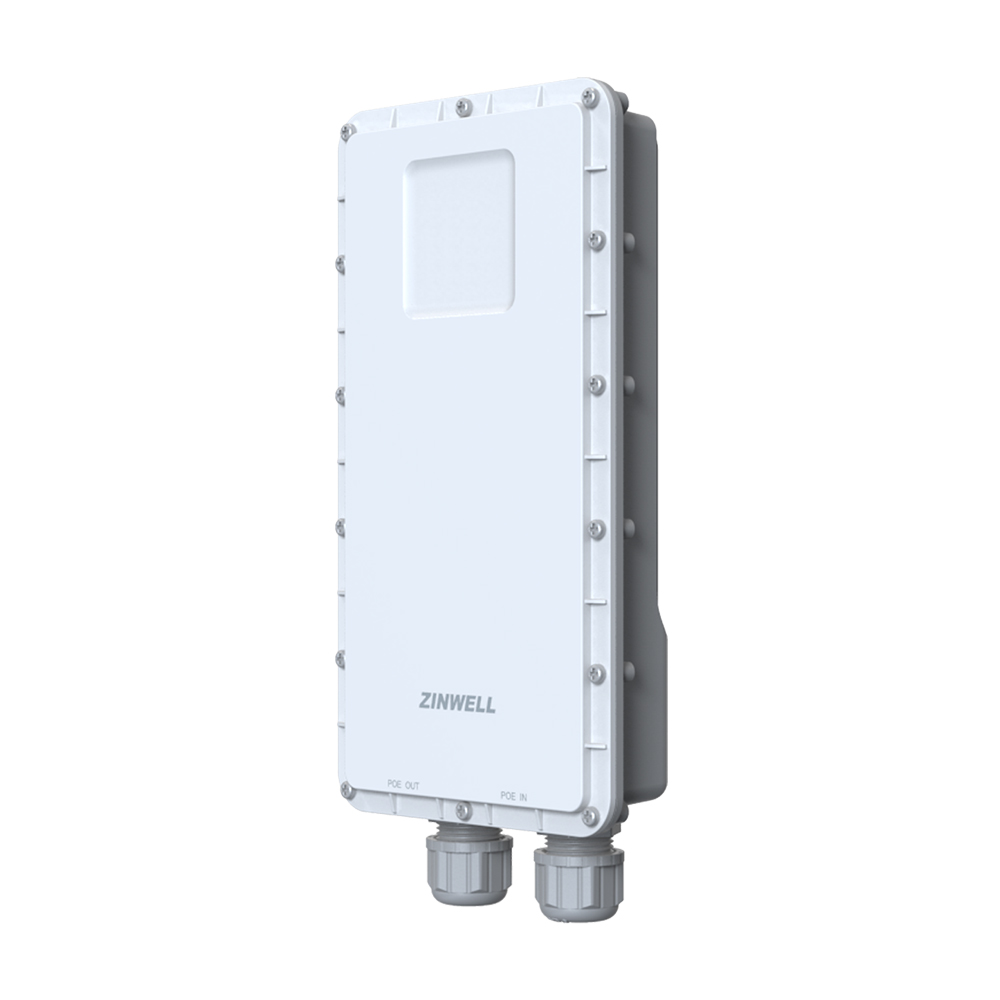

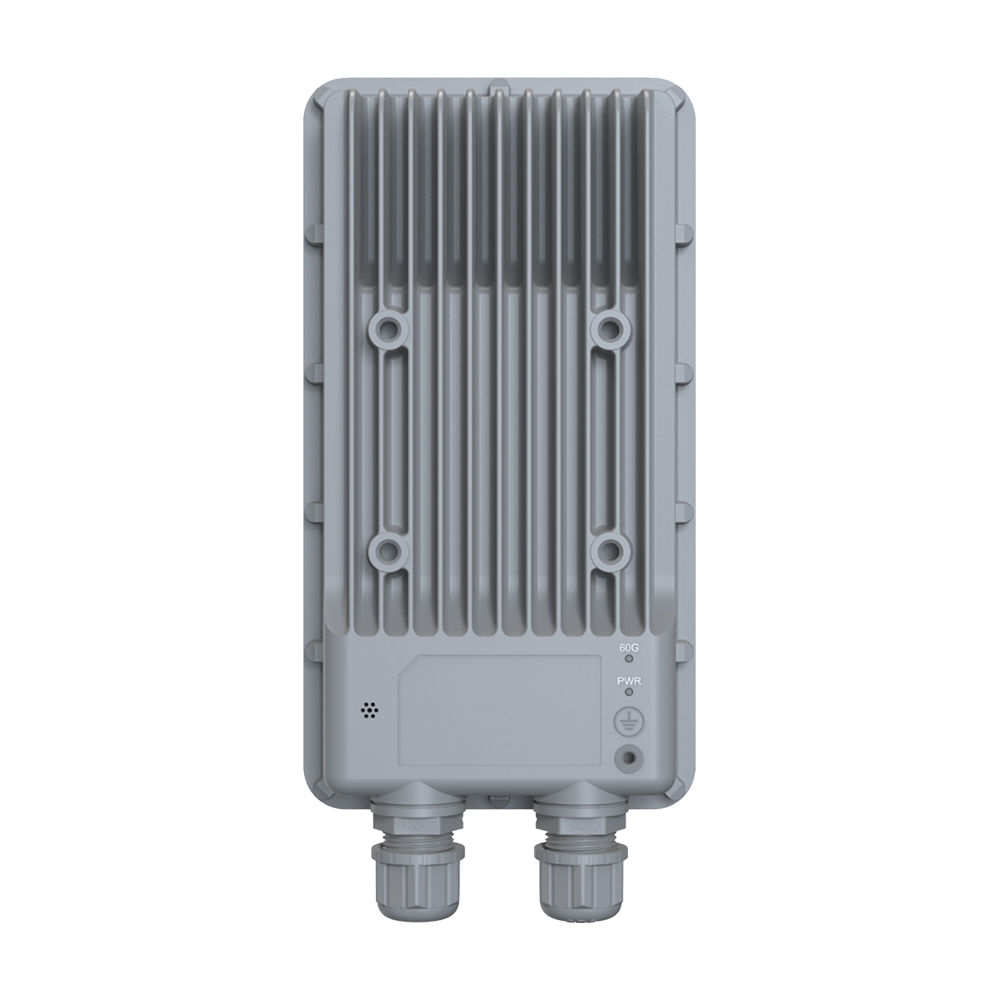

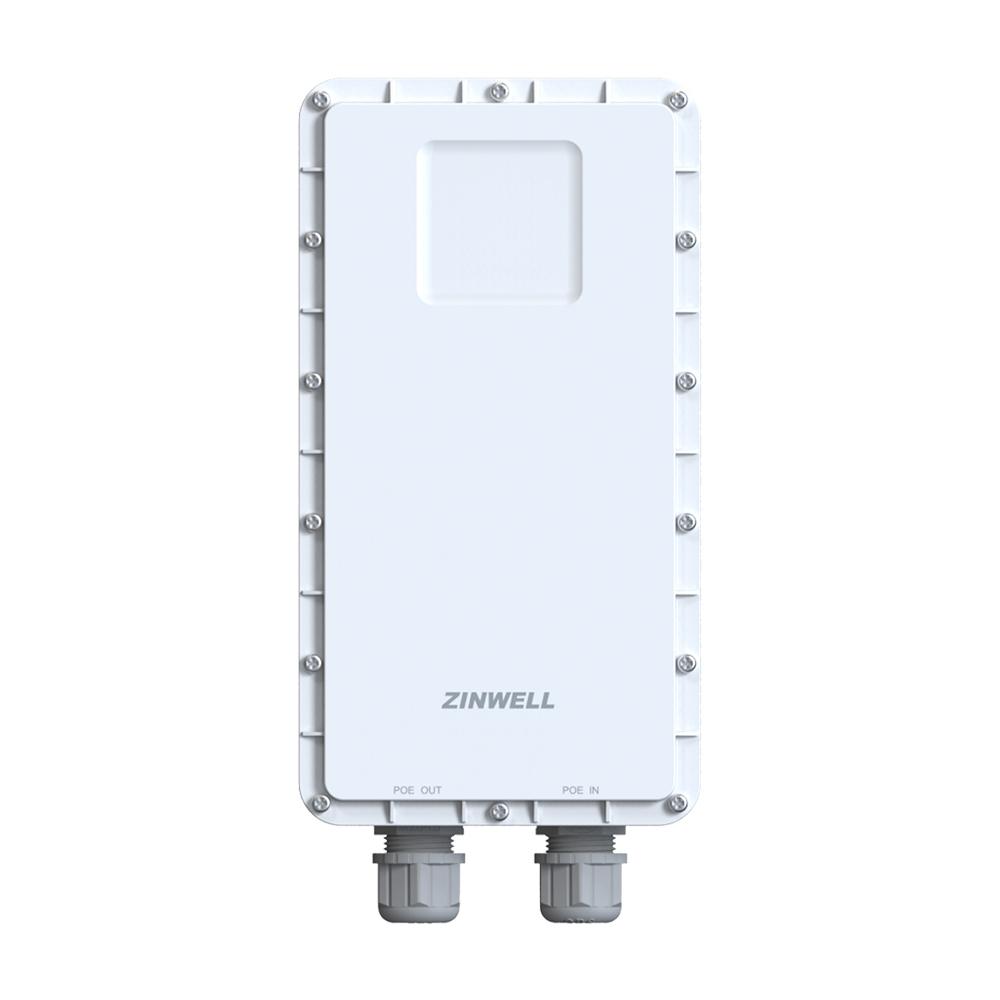

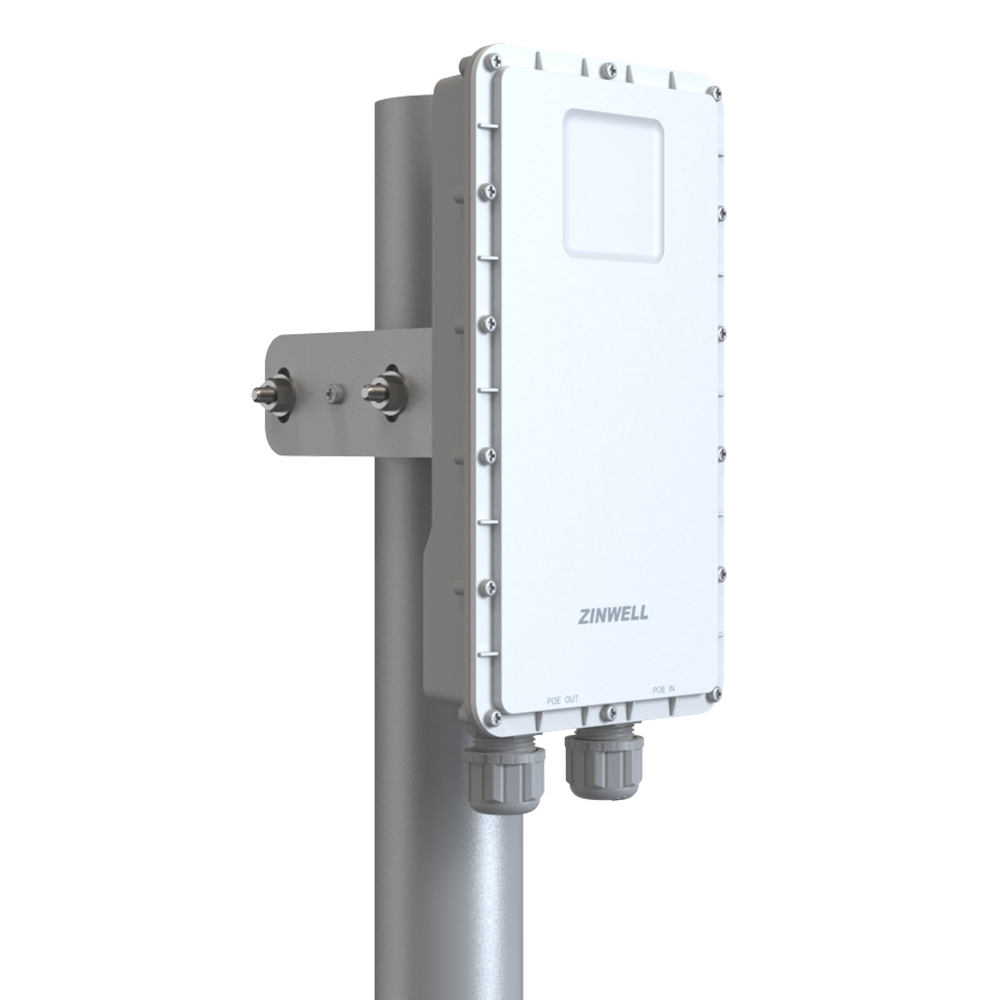

Zinwell 60GHz mmWave PtMP Radio Link Base Point
In stock
Experience carrier-grade performance with the Zinwell ZWR-V626, an exceptional choice for anyone needing reliable, high-capacity wireless backhaul. Built for modern network demands, it delivers speed, stability, and scalability in a compact outdoor-ready design.

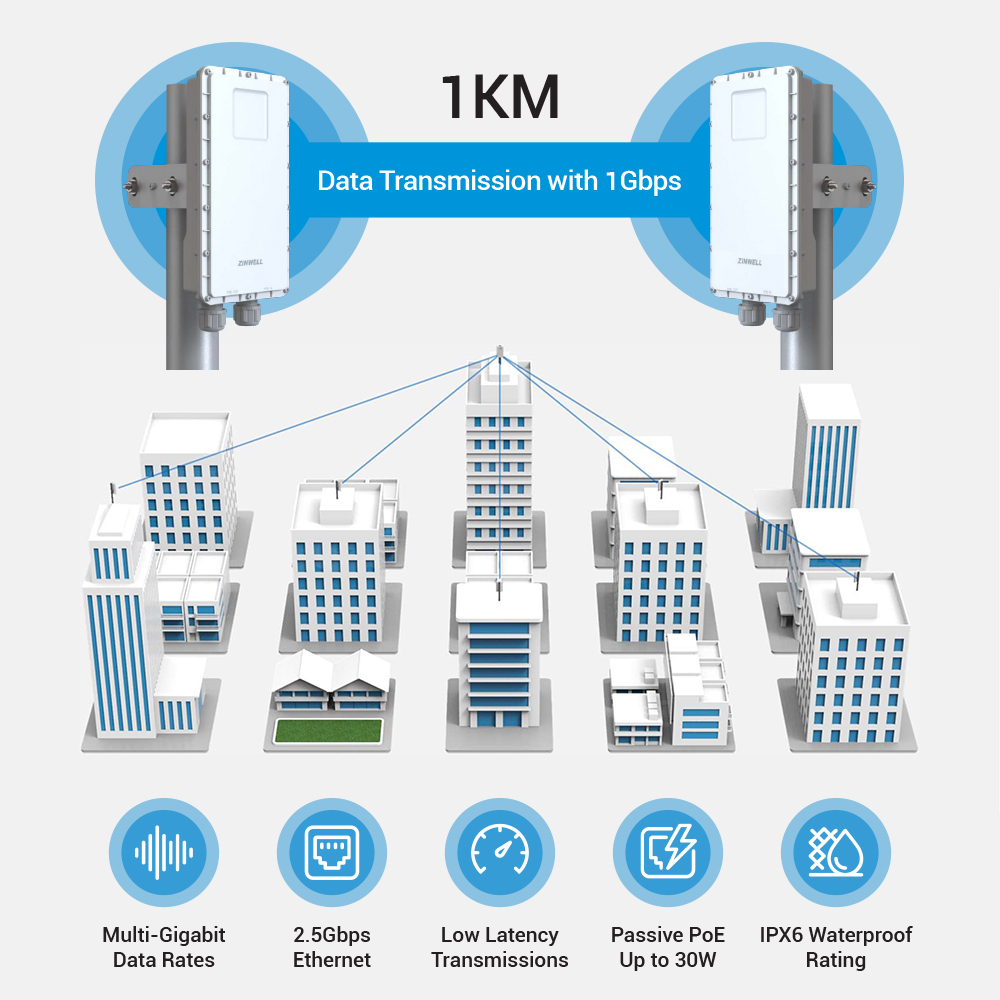

• Point to Multi-Point Link
• Multi-Gigabit Data Rates
• 2.5 Gbps Ethernet
• Low Latency Transmissions
• Passive PoE UP to 30W
• IPX6 Waterproof Rating
Product code: ZWR-V626
R9,599.00 R11,599.00
In stock
Experience ultra-fast, low-latency connectivity with the Zinwell ZWR-V626 60GHz mmWave PtMP Radio Link, engineered for high-performance wireless backhaul and point-to-multipoint deployments. Designed by Zinwell, this advanced radio delivers exceptional throughput, long-range stability, and interference-free operation in the 60GHz band—making it ideal for ISPs, enterprises, and demanding network environments.
Perfect for:
• Wireless ISPs needing reliable last-mile connectivity
• Enterprise campuses requiring high-capacity links
• Surveillance systems needing stable, high-bandwidth video backhaul
• Urban deployments with high interference in traditional bands
• Long-distance PtMP networking applications
Features:
• 60GHz mmWave Technology – Offers ultra-high throughput and low latency
• PtMP Support – Built for multi-node, scalable deployments
• High-Gain Antennas – Ensures stable long-range connectivity
• Interference-Free Band – Operates in the 60GHz band for cleaner signals
• Robust, Weather-Resistant Housing – Suitable for outdoor installations
• Advanced Beamforming – Improves link reliability and performance
• Simple Installation – Streamlined setup for technicians and integrators
• Secure Transmission – Supports strong encryption for network protection
Benefits:
• Delivers consistent, high-speed connectivity over long distances
• Reduces signal disruption with 60GHz interference-free operation
• Supports expanding networks with scalable PtMP architecture
• Ensures uninterrupted performance with rugged outdoor construction
• Enhances network security with advanced encryption protocols
Usage Tips:
• Mount high and clear of obstructions for optimal link quality
• Align antennas precisely to maximize throughput
• Use shielded outdoor-rated cabling for best durability
• Regularly check alignment after heavy storms or strong winds
Additional Details
| Weight | 2.0 g |
|---|---|
| Dimensions | 29.0 × 12.0 × 10.0 cm |
| Brand | SPACE |
| System | |
| CPU and WLAN Baseband | Qualcomm “Cypress” IPQ6010 |
| 2.5G LAN1 Ethernet PHY IC | Qualcomm “Napa” QCA8081 |
| 2.5G LAN2 Ethernet PHY IC | Qualcomm “Napa” QCA8081 |
| Power Management | MP5496 |
| RAM | DDR4 SDRAM 1 GB |
| FLASH RAM | eMMC 4 GB SPI NOR FLASH 4 MB |
| Flash RAM for 60GHz | SPI NOR Flash 1MB |
| Antenna | |
| WLAN 60GHz | ZWR-V626-C42X: 32-element PCB integrated antenna x1 ZWR-V626-C43X: 64-element PCB integrated antenna x1 |
| Scan Range | ZWR-V626-C42X: ±45° azimuth, ±20° elevation ZWR-V626-C43X: ±15° azimuth, ±20° elevation |
| Networking | |
| Ethernet | LAN1: One 10/100/1000/2500 Mbps RJ-45 supports PoE In LAN2: One 10/100/1000/2500 Mbps RJ-45 supports PoE Out (Passive) |
| Supports Standard | |
| WLAN | IEEE 802.11ad Compliant |
| Encryption | WPA, WPA2 |
| Ethernet | 10BASE-Te/100BASE-TX/1000BASE-T/2500BASE-T, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz Compliant, IEEE 802.3az Energy Efficient Ethernet (EEE) compliant |
| Power | |
| Input Voltage (± 5%) | PoE 48 VDC ± 5 % |
| Power Rating | Passive PoE+ 30 W |
| Power Consumption | Max. ~30 W with PoE out Max. ~17W without PoE out |
| Interface | |
| LED Indicator | Power, Wi-Fi 60G |
| Dimensions | |
| Chassis Size | 208.5 x 112 x 40 mm |
| Ambient | |
| Operating Temperature | -30˚C ~ +60˚C |
| Storage Temperature | -40˚C ~ +70˚C |
| Relative Humidity | 10% ~ 90% (Non-Condensing) |
| Waterproof | IPX6 |
| *Specifications are subject to change without notice |
