DStv Course Wavelength Division Multiplexer (FTU-CWDM)
DStv Course Wavelength Division Multiplexer (FTU-CWDM) - Image 2
,

DStv Course Wavelength Division Multiplexer (FTU-CWDM)

Availability:

Only 14 left in stock

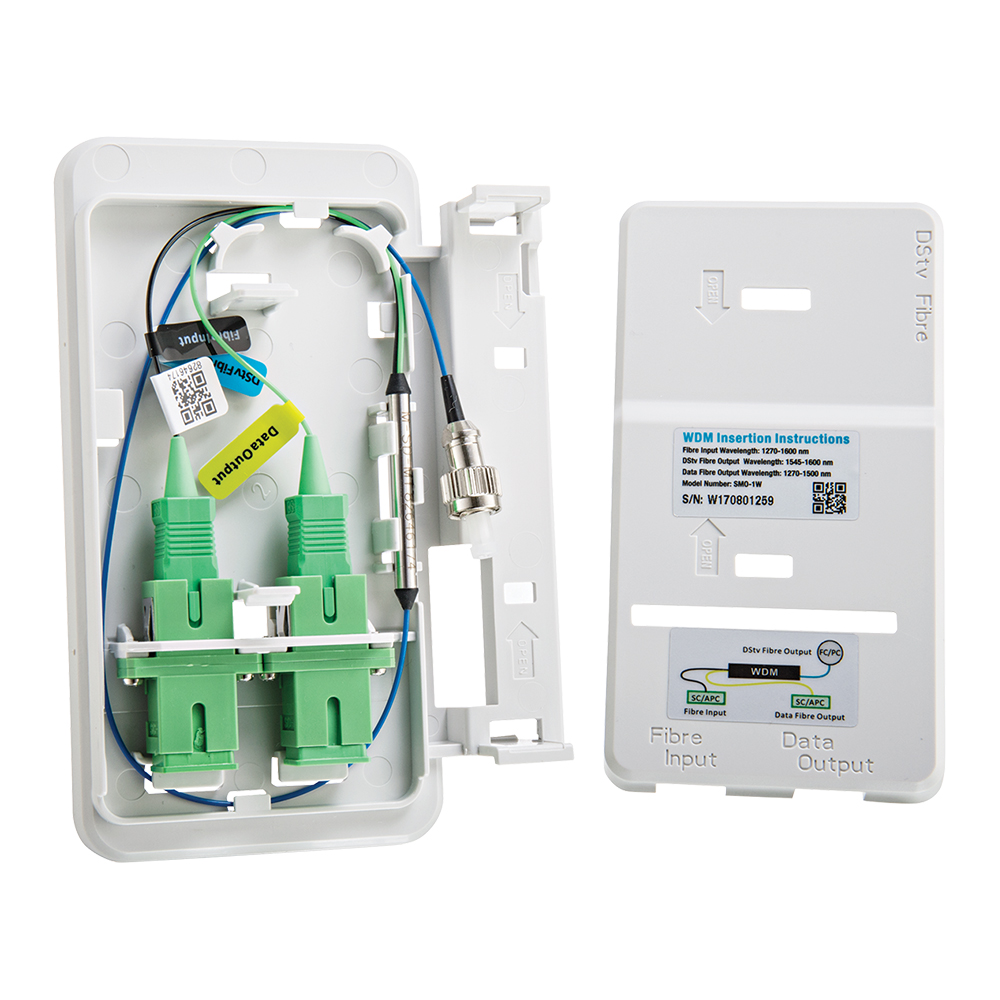

The DStv FTU-CWDM (Course Wavelength Division Multiplexer) is used when Video and Data services are combined on a single fibre. The FTU-CWDM is designed to clip onto the side of the Zinwell GTU/MS and will split the optic wavelengths between 1550nm (Video) an 1310nm / 1490 nm(Data downstream and upstream)

Product code: FTU-CWDM

R589.00 R706.00

Only 14 left in stock

The DStv FTU-CWDM (Course Wavelength Division Multiplexer) is used when Video and Data services are combined on a single fibre. The FTU-CWDM is designed to clip onto the side of the Zinwell GTU/MS and will split the optic wavelengths between 1550nm (Video) an 1310nm / 1490 nm(Data downstream and upstream)

SKU: FTU-CWDM Categories: , Tags: , ,

Additional Details

SKU: FTU-CWDM | Tags: , , | Categories: ,

Brand

DSTV
Physical Device Removable

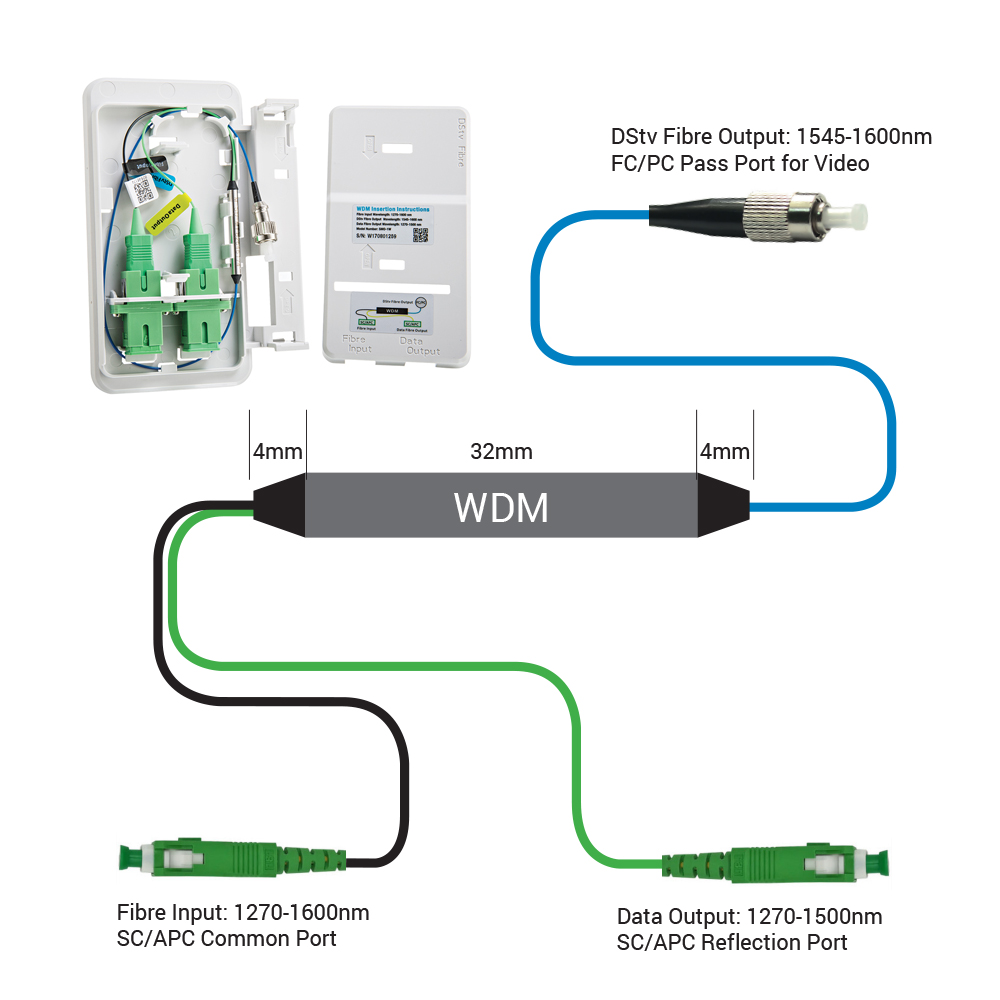

Input Frequency Range 1270 to 1600 nm
Input Identification Input to be labelled as “Fibre Input”
Input Fibre Cable Colour Black
Input Connector SC/APC
Output Pass Frequency Range – Data 1270 to 1500 nm
Output Identification – Data Input to be labelled as “Data Output”
Output Fibre Cable Colour – Data Green
Output Connector – Data SC/APC
Output Pass Frequency Range to Switch – Video 1545 to 1600 nm
Output Identification – Video Input to be labelled as “DStv Fibre Output
Output Fibre Cable Colour – Video Blue
Overlay Output Connector – Video FC/PC
Connector Protection All fibre connectors to be protected by protective device enclosure cover
Fibre Cable Type Single mode
Optical Insertion Loss 1 dB max
Isolation (pass port) ≥ 40 dB
Isolation (reflect port) ≥ 15 dB
Optical Return Loss (reflect port) ≥ 50 dB
Thermal Stability ≤ 0.005 dB / °C
Polarization Dependent Loss ≤ 0.1 dB
Polarization Mode Dispersion ≤ 0.1 ps
Max. Optical Power 300 mw
Max. Tensile Load 5 N
Storage Temperature -0 ~ +70 °C
Fiber Type SMF-28e+ ; Loose tube cable (900μm)
WDM filter package size Ø 3.8 x 40
Cable Length Fibre Input: 130mm +/- 5
Data Output: 245mm +/- 5
DStv Fibre Output: 95mm +/- 5
